Data Sheet
Product Code: MDJ160
Product Description: V-Pro Micro Push Control In-Line Dimmer Pack 160W
Finish: In-Line Dimmer Pack
Product Category: Micro Dimmer
Barcode: 5021575034103

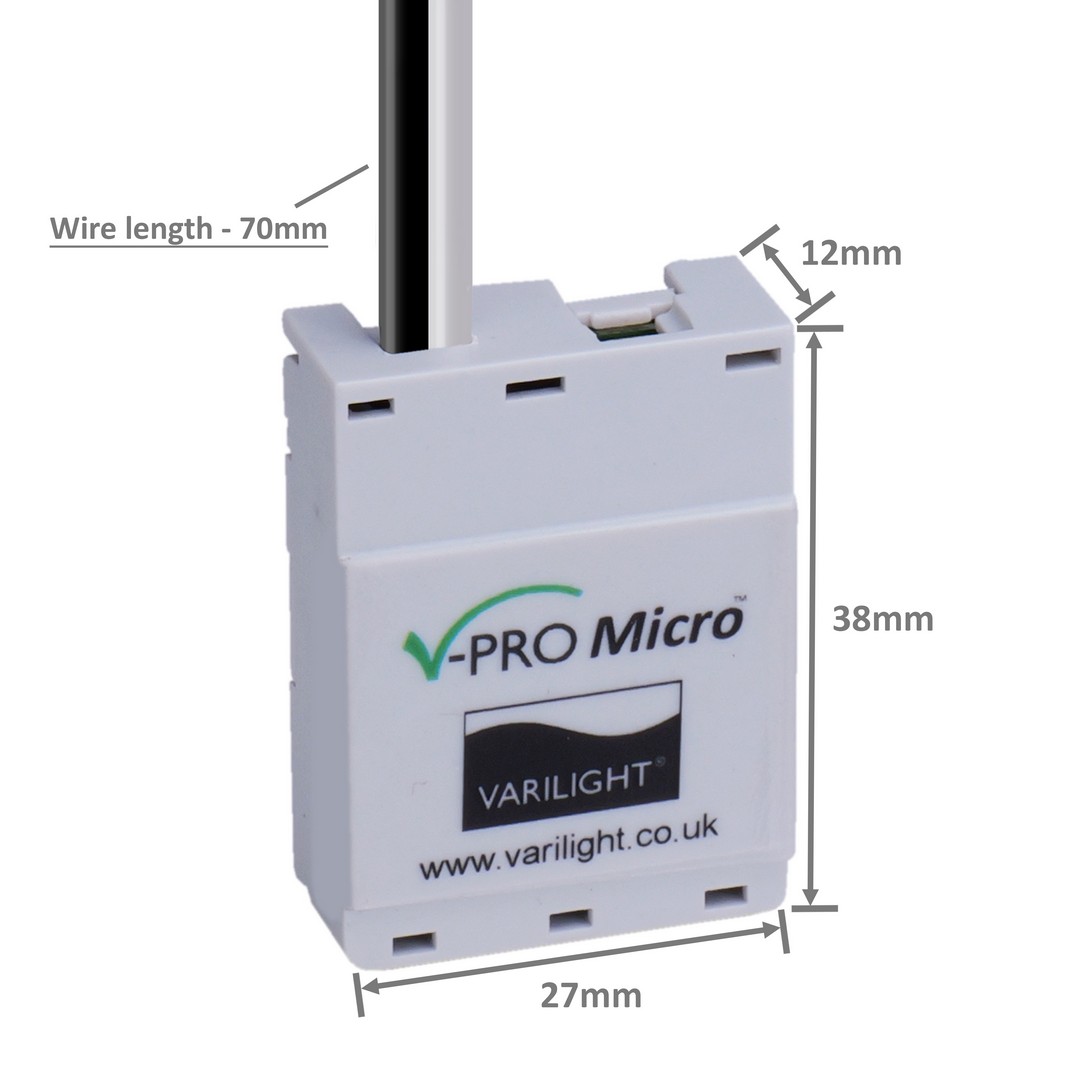

Dimensions: 38x27x12mm (with 70mm wire)
Net Weight: 16g
Gross Weight: 18g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 160W
Maximum Current Rating: 0.667A
Terminal (Live) Diameter: 3.4mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Product Features
Discreet in-line installation; fits behind retractive or momentary switches for a clean, hidden setup
Enables multiway dimming using multiple retractive or push switches across different locations
Supports 0-160W of dimmable LED lighting; smooth, flicker-free performance. Silent trailing-edge dimming; adapts to various LED drivers for optimal performance
Push-to-dim and single-press on/off functionality using compatible switch types
For a clear and simple overview of how to use and install the Micro Dimmer, see the Plain English Micro Dimmer Instructions (PDF).
Rear View:
