Data Sheet
Product Code: MDJ160K

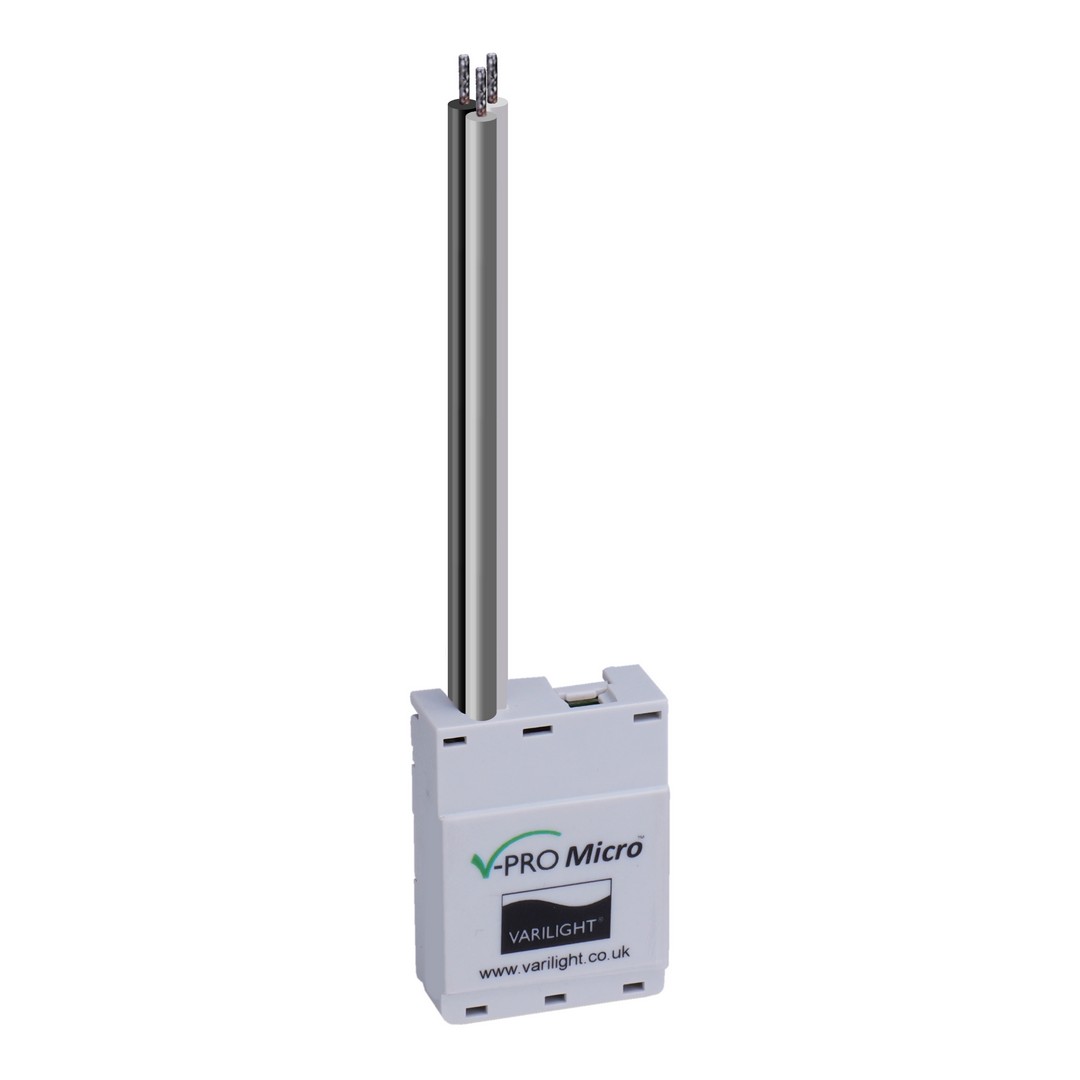

Product Description: V-Pro Micro Dual Push Control In-Line Dimmer Pack 160W
Finish: In-Line Dimmer Pack
Product Category: Micro Dimmer
Barcode: 5021575034134

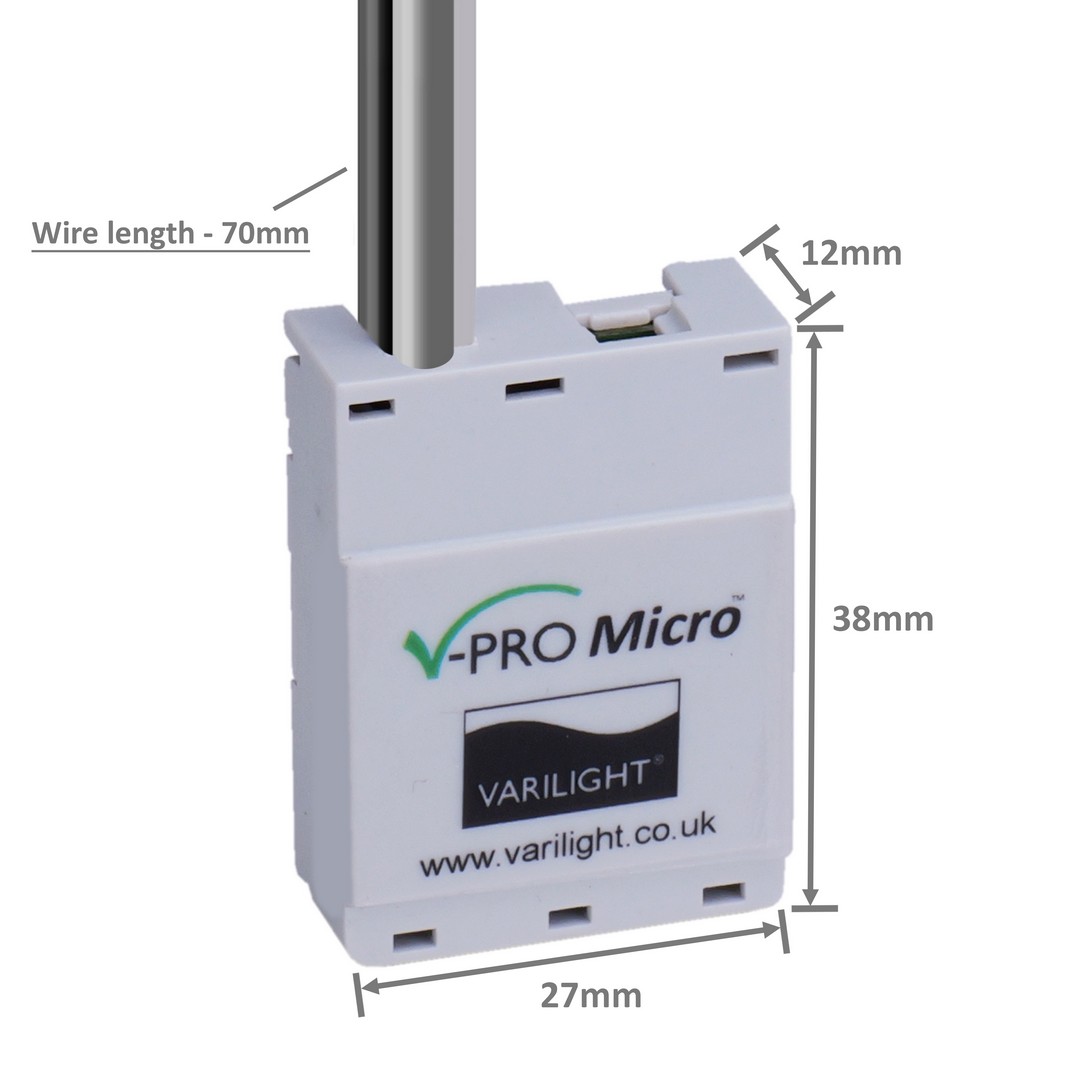

Dimensions: 38x27x12mm (with 70mm wire)
Net Weight: 16g
Gross Weight: 19g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 160W
Maximum Current Rating: 0.667A
Terminal (Live) Diameter: 3.4mm; Capacity: 3 x 1.5mm²
Product Features
Discreet in-line installation; fits behind centre-off retractive (momentary) switches for a clean, hidden setup
Enables multiway dimming via up & down control using multiple centre-off retractive switches across different locations
Supports 0-160W of dimmable LED lighting; smooth, flicker-free performance. Silent trailing-edge dimming; adapts to various LED drivers for optimal performance
Up = brighter, down = dimmer; single-press on/off via centre-off retractive switches only
For a clear and simple overview of how to use and install the Micro Dimmer, see the Plain English Micro Dimmer Instructions (PDF).
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 12th October 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
