Data Sheet
Product Code: EG5FGS

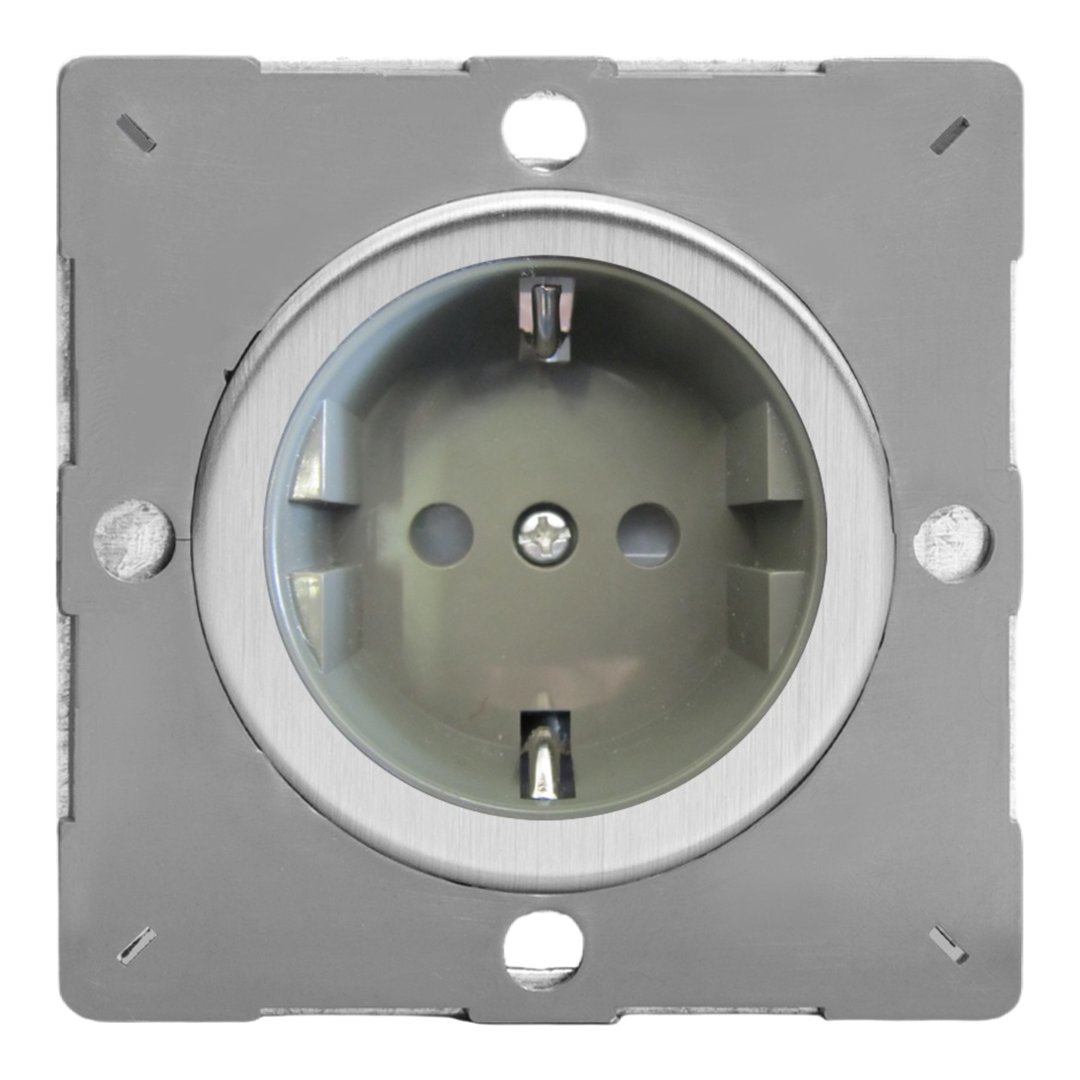

Product Description: 1-Gang 16A Flush Socket with Schuko Earth
Range: European VariGrid
Finish: Brushed Steel
Product Category: 16A Sockets
Insert/Knob Colour: Brushed Steel/Grey Insert
Barcode: 5021575951370
Dimensions: 71x71x35mm
Net Weight: 46g
Gross Weight: 48g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Terminal (Neutral) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Terminal (Earth) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Only use solid cable with push fit terminals..
Applicable Safety Standard: PN-IEC60884-1 + IEC-60884-1
Commodity Code: 85366990
Product Features
CEE 7/3 sockets with symmetric AC connectors
Earthing clips positioned to ensure that earth is engaged before live contact is made
Can accept CEE 7/4, 7/7 and 7/17 plugs and Europlugs
Suitable for use in VariGrid faceplates for your own combinations
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
