Data Sheet
Product Code: EGD1Y.MB

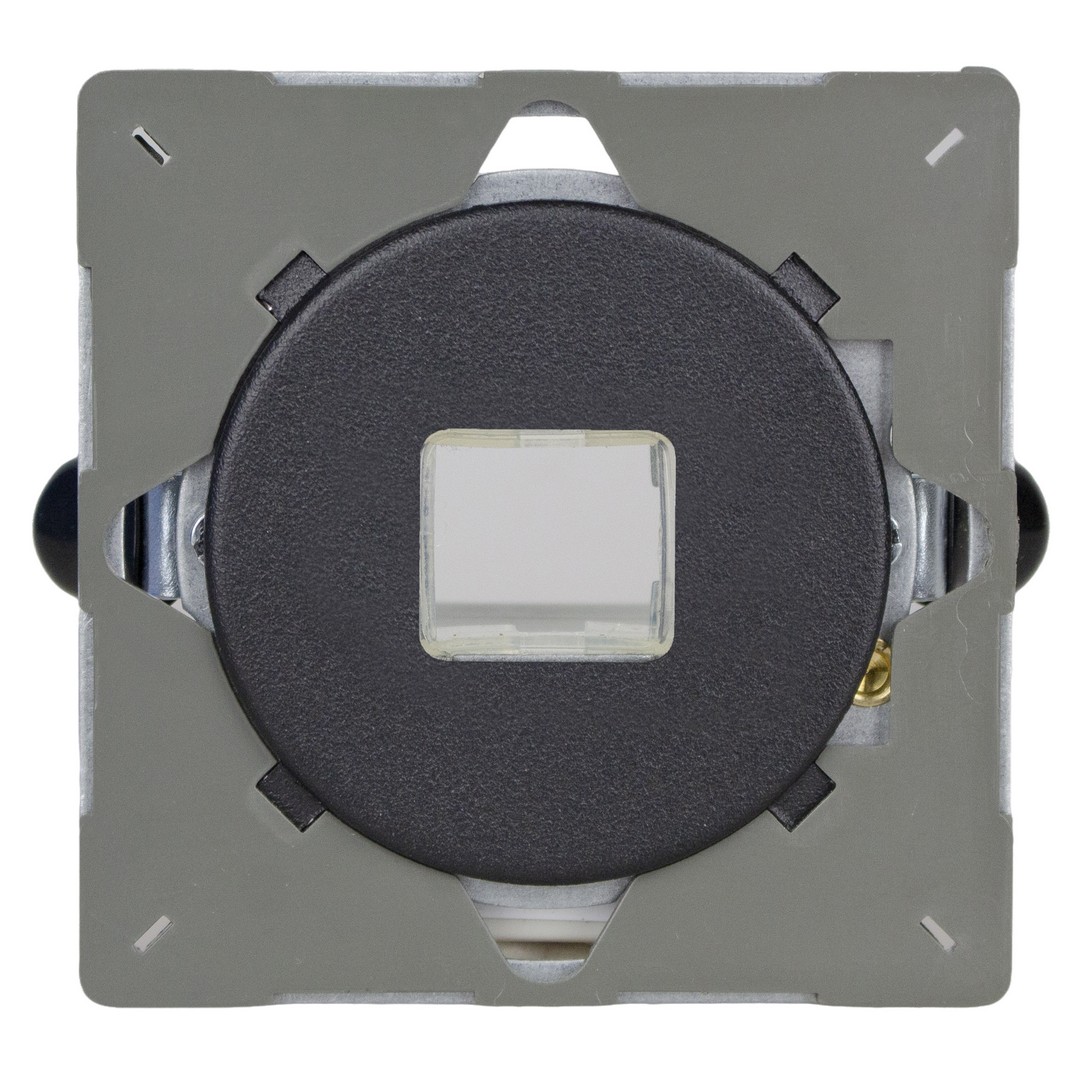

Product Description: 1-Gang EuroData Grid Plate (Keystone Data)
Range: European VariGrid
Finish: Matt Black
Product Category: EuroData Plates
Barcode: 5021575999709
Dimensions: 71x71x24mm
Faceplate Depth: 4mm
Net Weight: 66g
Gross Weight: 68g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: N/A
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85367000
Product Features
Clip in any combination of EuroData modules
Create your own data combinations
Suitable for use in VariGrid faceplates for your own combinations
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
