Data Sheet

Product Code: EGP1S

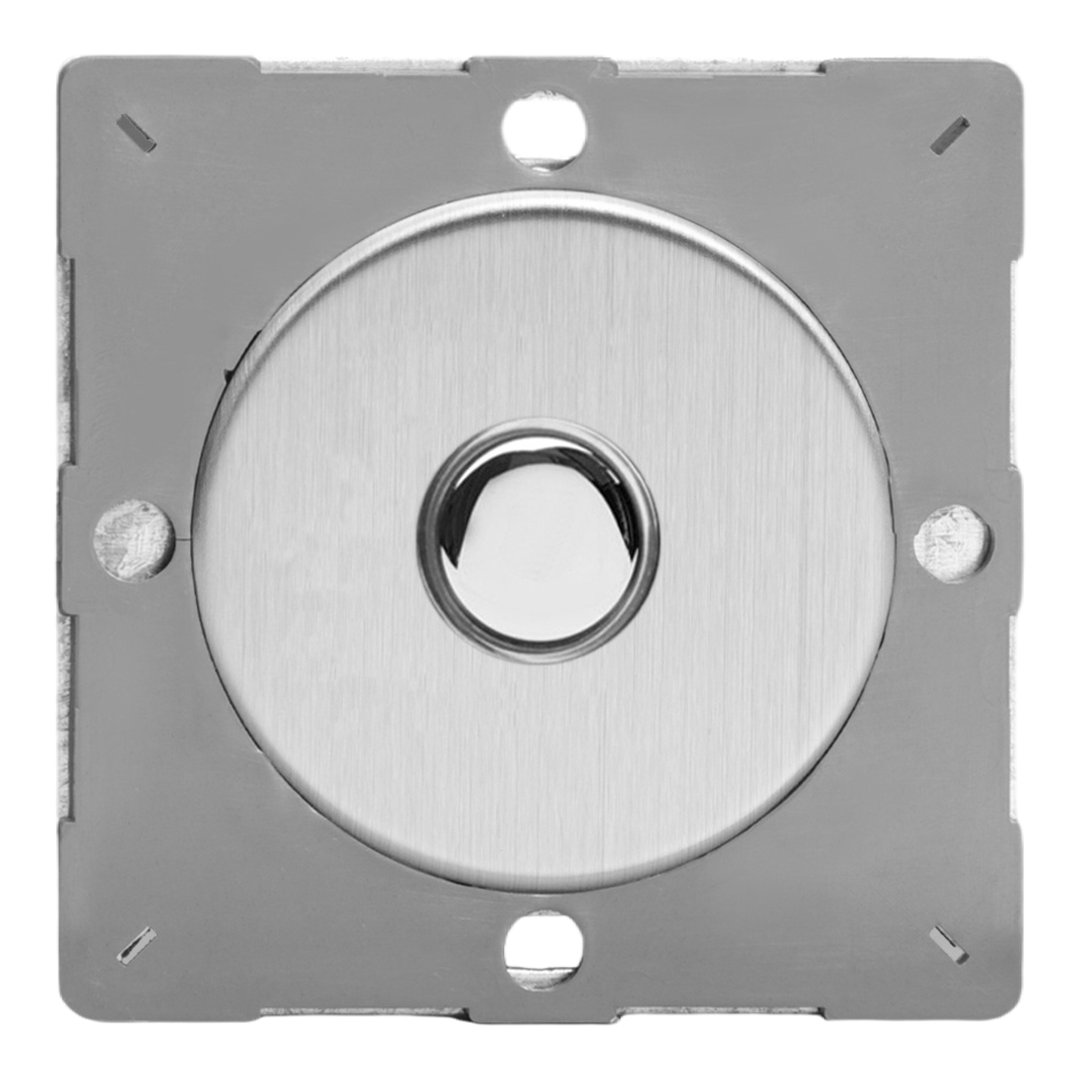

Product Description: 1-Gang 6A 1- or 2-Way Push On/Off Impulse Switch

Range: European VariGrid

Finish: Brushed Steel

Product Category: Impulse Switches

Insert/Knob Colour: Chrome Button

Barcode: 5021575950052

Dimensions: 71x71x23mm

Faceplate Depth: 4mm

Net Weight: 56g

Gross Weight: 58g

Fixing Centres: 60.3mm

Depth from Mounting Face:

Recommended Back Box Depth: Standard European 40mm Round or Square

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Press once for on, once for off, in 1- or 2-Way circuits

  Stylish round push button

  Suitable for controlling both mains and low voltage lighting

  6A rated

  Screwless low profile faceplate, just 4mm deep with no visible fixings, for standard 40mm round or square European wall boxes

European VariGrid Collection
The European VariGrid range lets you create your own combinations of switches, dimmers and sockets on a single screwless low profile faceplate. Made to fit standard round European wall boxes, simply pick a finish and add the modules you want, from Schuko and French sockets to rocker and toggle switches and V-Pro dimmers.

Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers.
