Data Sheet
Product Code: EGR1YV.MB

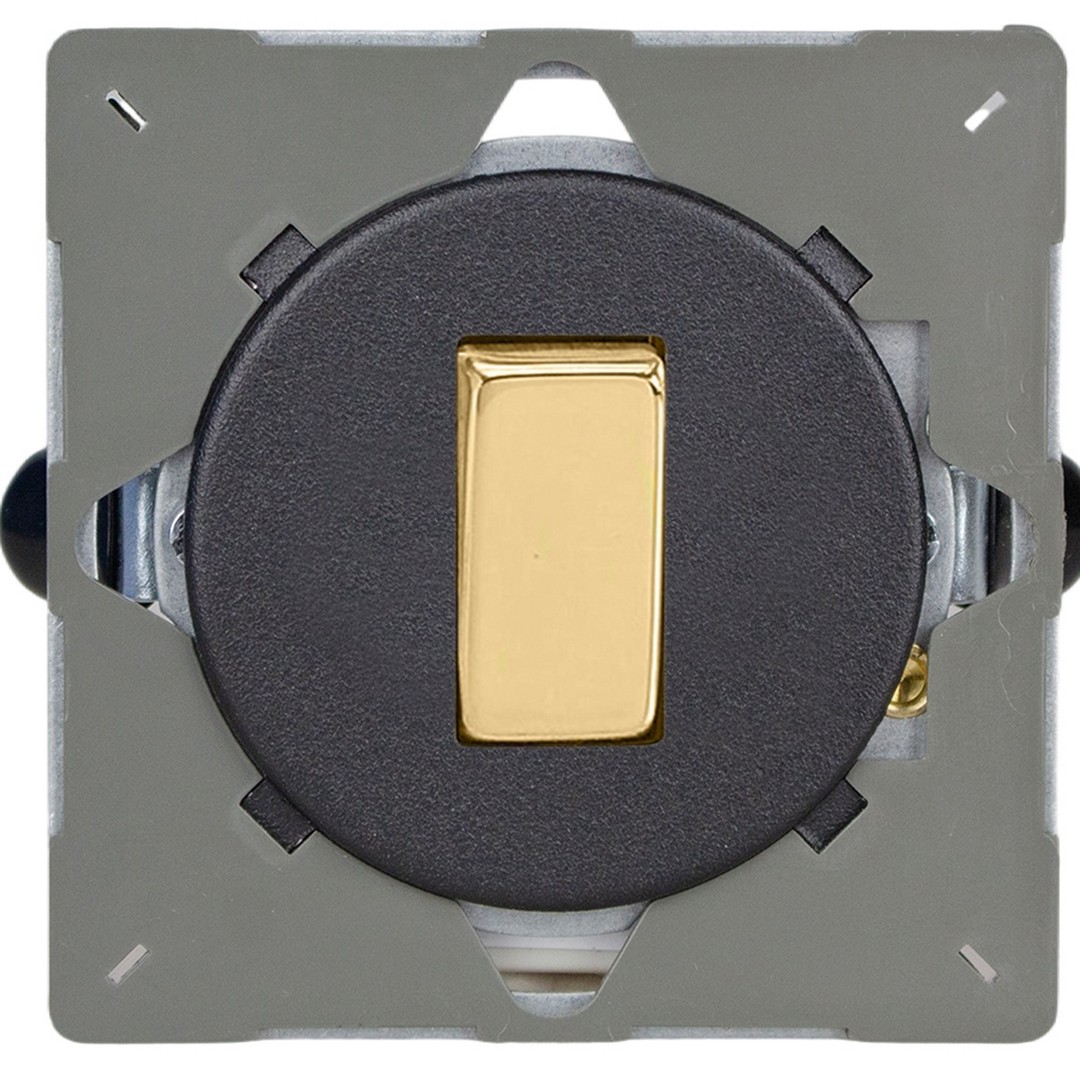

Product Description: 1-Gang 10A 1-Way Push-to-Make Retractive Switch
Range: European VariGrid
Finish: Matt Black
Product Category: Retractive Switches
Insert/Knob Colour: Polished Brass Button
Barcode: 5021575028188
Dimensions: 71x71x23mm
Net Weight: 56g
Gross Weight: 58g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365011
Product Features
Retractive push to make switch
For use with blinds, bells and applications where a momentary electric signal is required
Suitable for use in VariGrid faceplates for your own combinations
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
