Data Sheet
Product Code: EGT2V

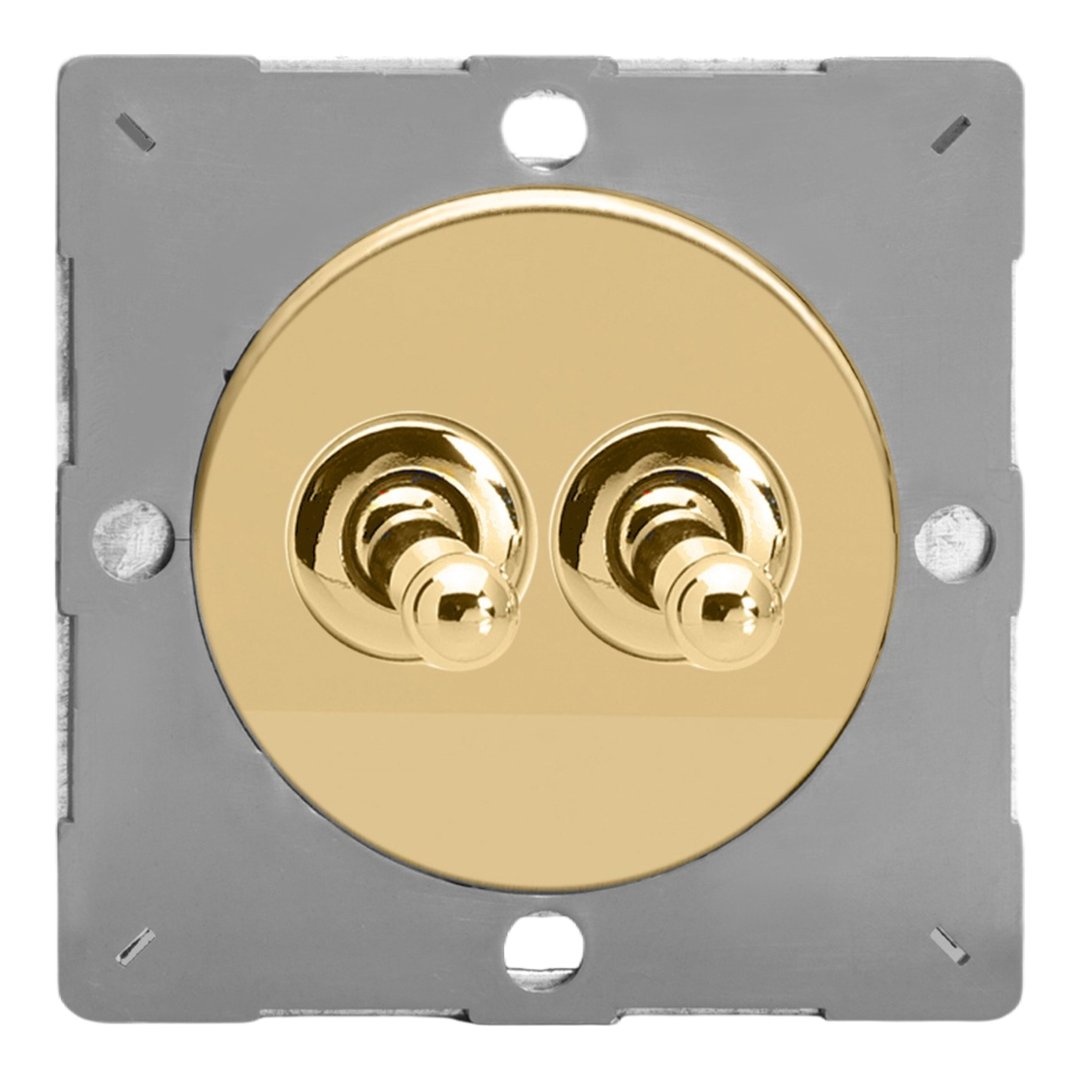

Product Description: 2-Gang 10A 1- or 2-Way Toggle Switch
Range: European VariGrid
Finish: Polished Brass
Product Category: Toggle Switches
Insert/Knob Colour: Brass Toggles
Barcode: 5021575950649
Dimensions: 71x71x40mm
Faceplate Depth: 4mm
Net Weight: 76g
Gross Weight: 78g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
10A rated
Heritage-style toggle with a positive action
Screwless low profile faceplate, just 4mm deep with no visible fixings, for standard 40mm round or square European wall boxes
European VariGrid Collection
The European VariGrid range lets you create your own combinations of switches, dimmers and sockets on a single screwless low profile faceplate. Made to fit standard round European wall boxes, simply pick a finish and add the modules you want, from Schuko and French sockets to rocker and toggle switches and V-Pro dimmers.
Polished Brass Finish
The elegant Polished Brass finish features matching polished brass rockers with an option of black or white inserts.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
17th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
