Data Sheet

Product Code: EGTP1YV.MB

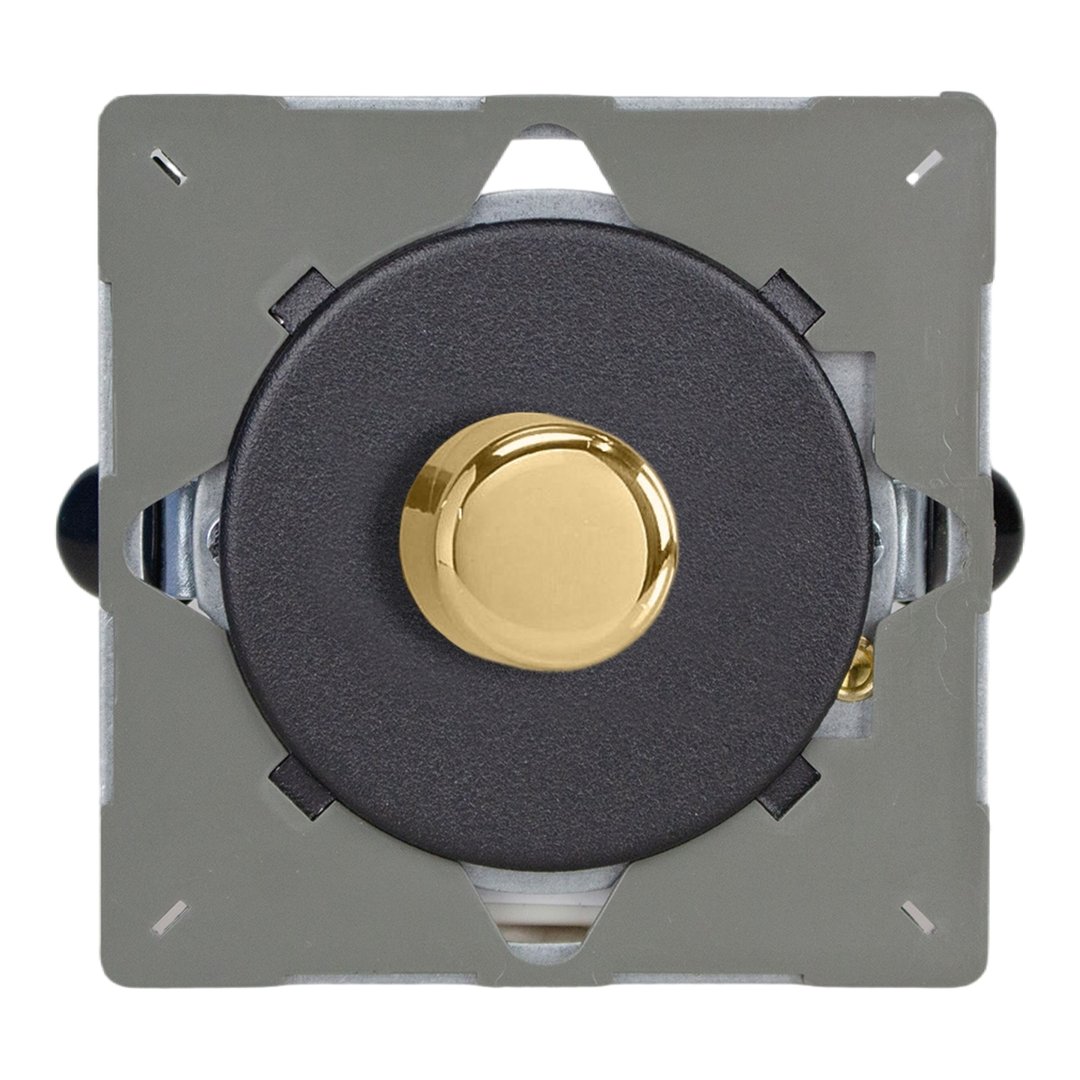

Product Description: 1-Gang 2-Way Push On/Off Rotary Dimmer 1 x 60-400W

Range: European VariGrid

Finish: Matt Black

Product Category: Halogen Dimmers

Insert/Knob Colour: Brass Knob

Barcode: 5021575016703

Dimensions: 71x71x47mm

Faceplate Depth: 4mm

Net Weight: 106g

Gross Weight: 108g

Fixing Centres: 60.3mm

Depth from Mounting Face:

Recommended Back Box Depth: Standard European 40mm Round or Square

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 1.74A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for wire-wound low voltage Drivers, fluorescent lighting, motors or fans. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Dim heavy duty dimming for incandescent lighting, including mains and low voltage halogen

  Dims 60-400W of lighting; add up your lamp wattages to choose the right dimmer

  Push on/off, rotate to dim; use in a 1-way circuit or in a 2-way circuit alongside a standard switch

  Remembers your last brightness setting when switched back on

  For dimmable LEDs choose the V-Pro range instead

  Screwless low profile faceplate, just 4mm deep with no visible fixings, for standard 40mm round or square European wall boxes

European VariGrid Collection
The European VariGrid range lets you create your own combinations of switches, dimmers and sockets on a single screwless low profile faceplate. Made to fit standard round European wall boxes, simply pick a finish and add the modules you want, from Schuko and French sockets to rocker and toggle switches and V-Pro dimmers.

Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints. Supplied with black socket inserts and iridium rockers.
