Product Code: EGTP2YV.MB

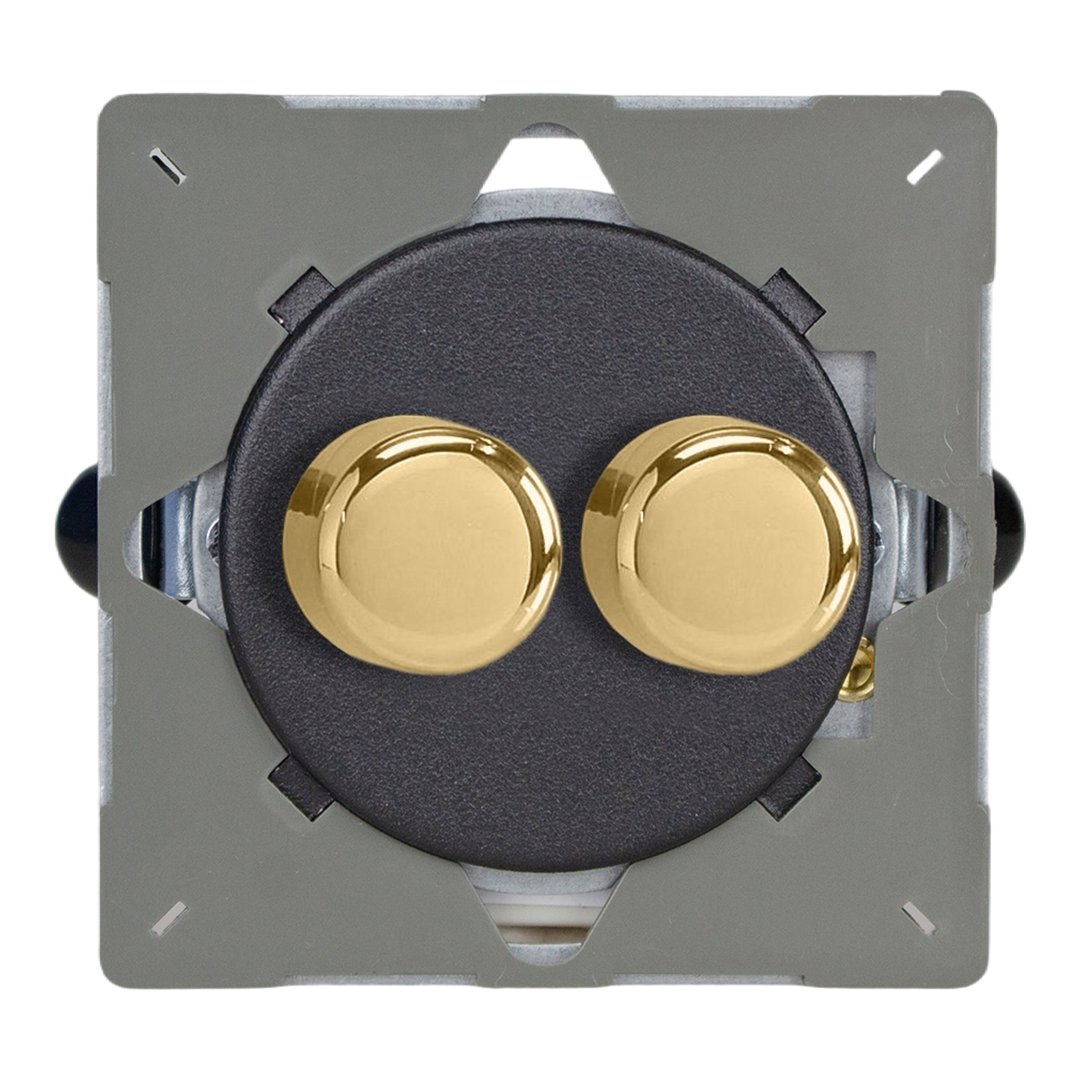

Product Description: 2-Gang 2-Way Push On/Off Rotary Dimmer 2 x 40-250W
Range: European VariGrid
Finish: Matt Black
Product Category: Halogen Dimmers
Insert/Knob Colour: Brass Knob
Barcode: 5021575016734
Dimensions: 71x71x59mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 1.09A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Not suitable for wire-wound low voltage Drivers, fluorescent lighting, motors or fans. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
Product Features
V-Dim dimming technology
Overload protection that automatically switches off the lights when an overload is detected
