Data Sheet

Product Code: HP62

This product is no longer available for purchase

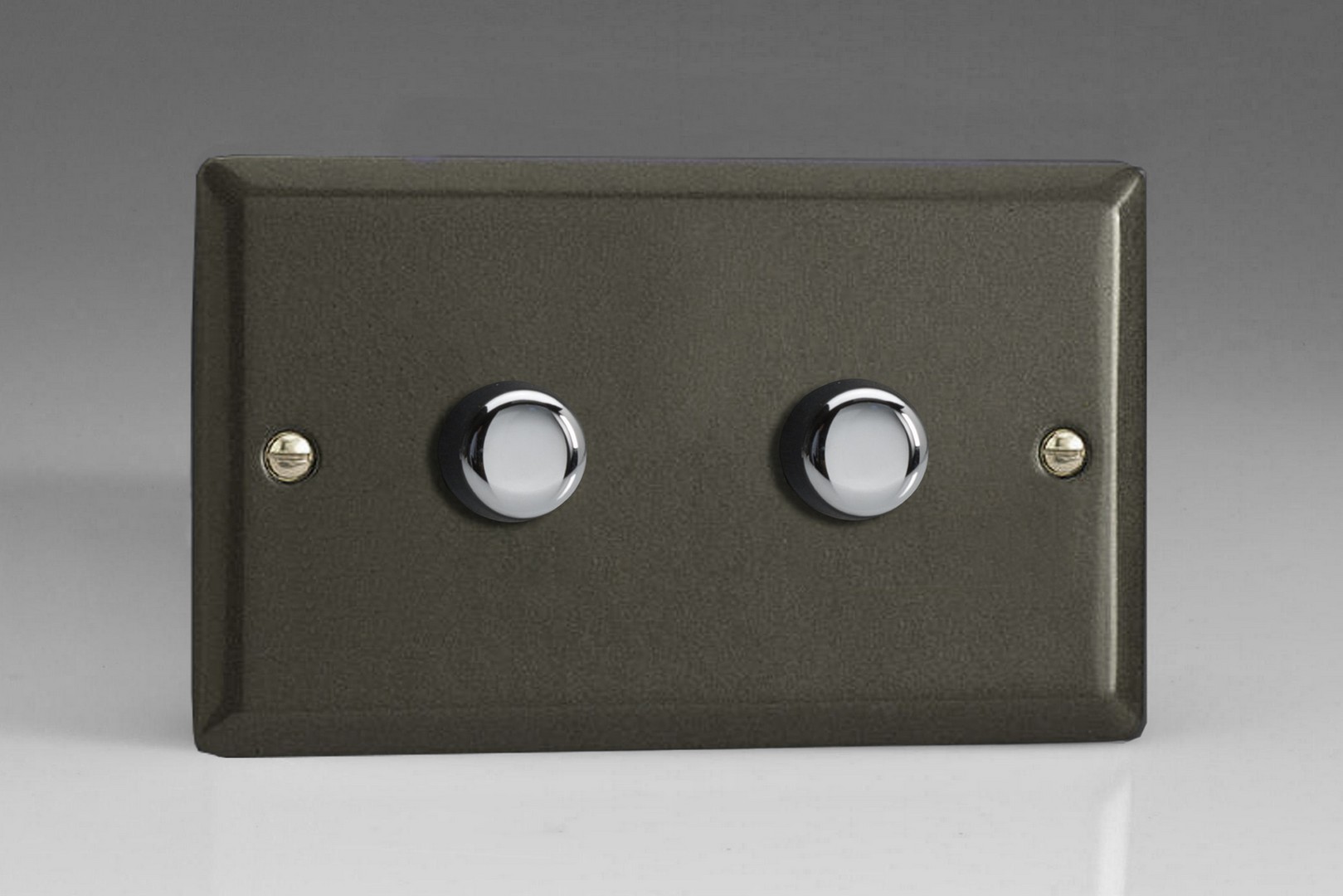

Product Description: 2-Gang 2-Way Push-On/Off Rotary Dimmer 2 x 200-600W (Twin Plate)

Range: Classic

Finish: Graphite 21

Product Category: V-Dim Dimmer

Insert/Knob Colour: Chrome Knobs

Barcode: 5021575350623

Dimensions: 91x150x50mm

Faceplate Depth: 8mm

Net Weight: 319g

Gross Weight: 322g

Fixing Centres: 120.6mm

Depth from Mounting Face:

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen; 450W

Maximum Current Rating: 2A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Not suitable for wire-wound low voltage transformers, fluorescent lighting, motors or fans. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS 5518

Commodity Code: #N/A

Declaration of Conformity

Product Features

  V-Dim dimming technology

  Ideal for incandescent lighting including mains and low voltage halogen

  Bevelled edge faceplate

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Graphite 21 Finish
Dark and moody, the Graphite finish brings an industrial feel and works beautifully with neutral colour schemes. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
