Data Sheet

Product Code: IDIDP1501S

This product is made to order

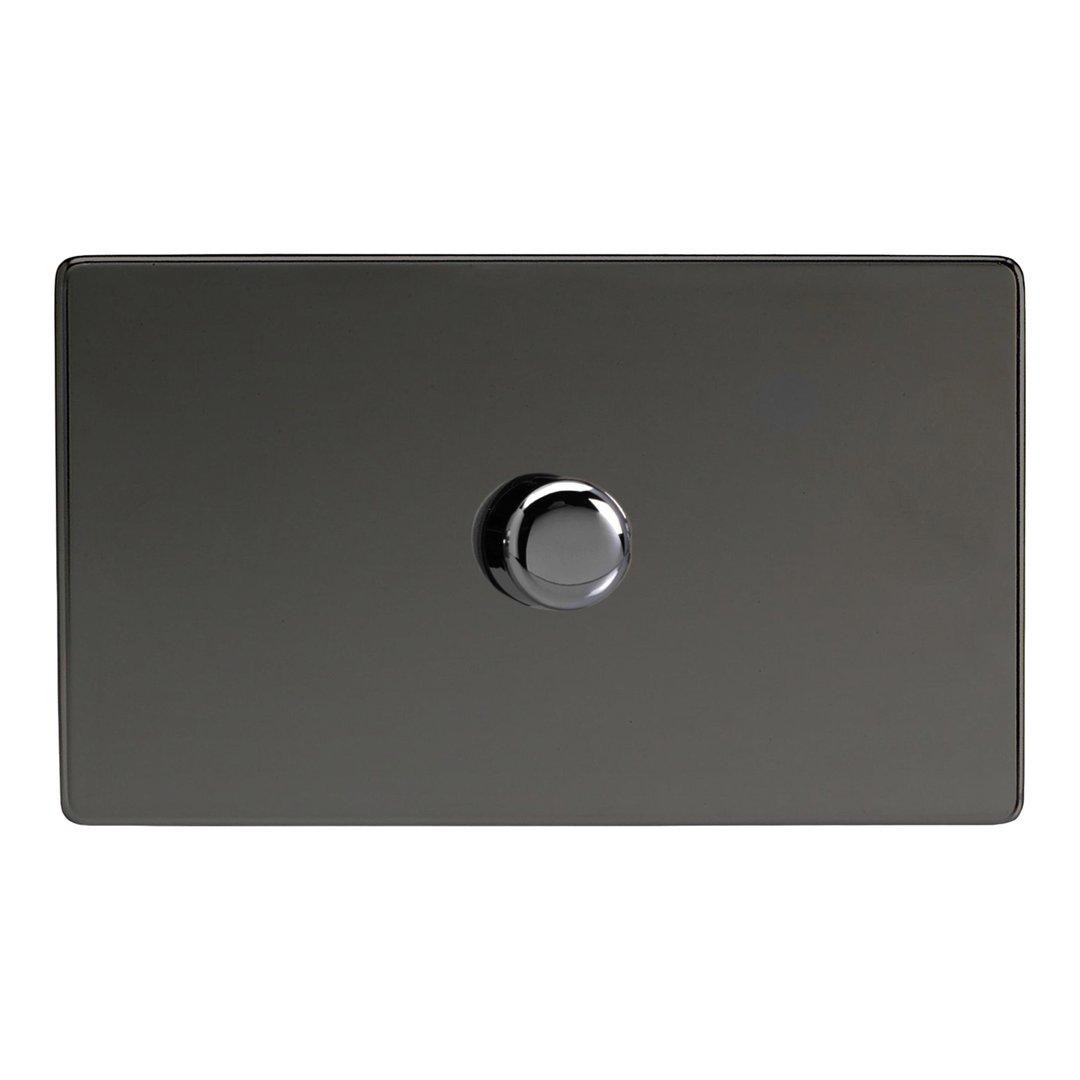

Product Description: 1-Gang 2-Way V-Plus Push On/Off Rotary Dimmer 1 x 200-1400W (Twin Plate)

Range: Screwless

Finish: Iridium

Product Category: Halogen Dimmers

Insert/Knob Colour: Iridium Knob

Barcode: 5021575110579

Dimensions: 86x147x53mm

Faceplate Depth: 4mm

Net Weight: 318g

Gross Weight: 320g

Fixing Centres: 120.6mm

Depth from Mounting Face: 28.5mm

Recommended Back Box Depth: 35mm

Operating Voltage: 220/250V AC

Maximum Load Rating: Halogen: 1000W

Maximum Current Rating: 4.3A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  V-Plus intelligent dimming for higher-wattage incandescent and halogen loads

  Dims 200-1400W of lighting

  Push on/off, rotate to dim

  Overload protection switches the lights off if an overload is detected

  For dimmable LEDs choose the V-Pro range instead

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers.
