Product Code: IDSDP1501S
This product is made to order

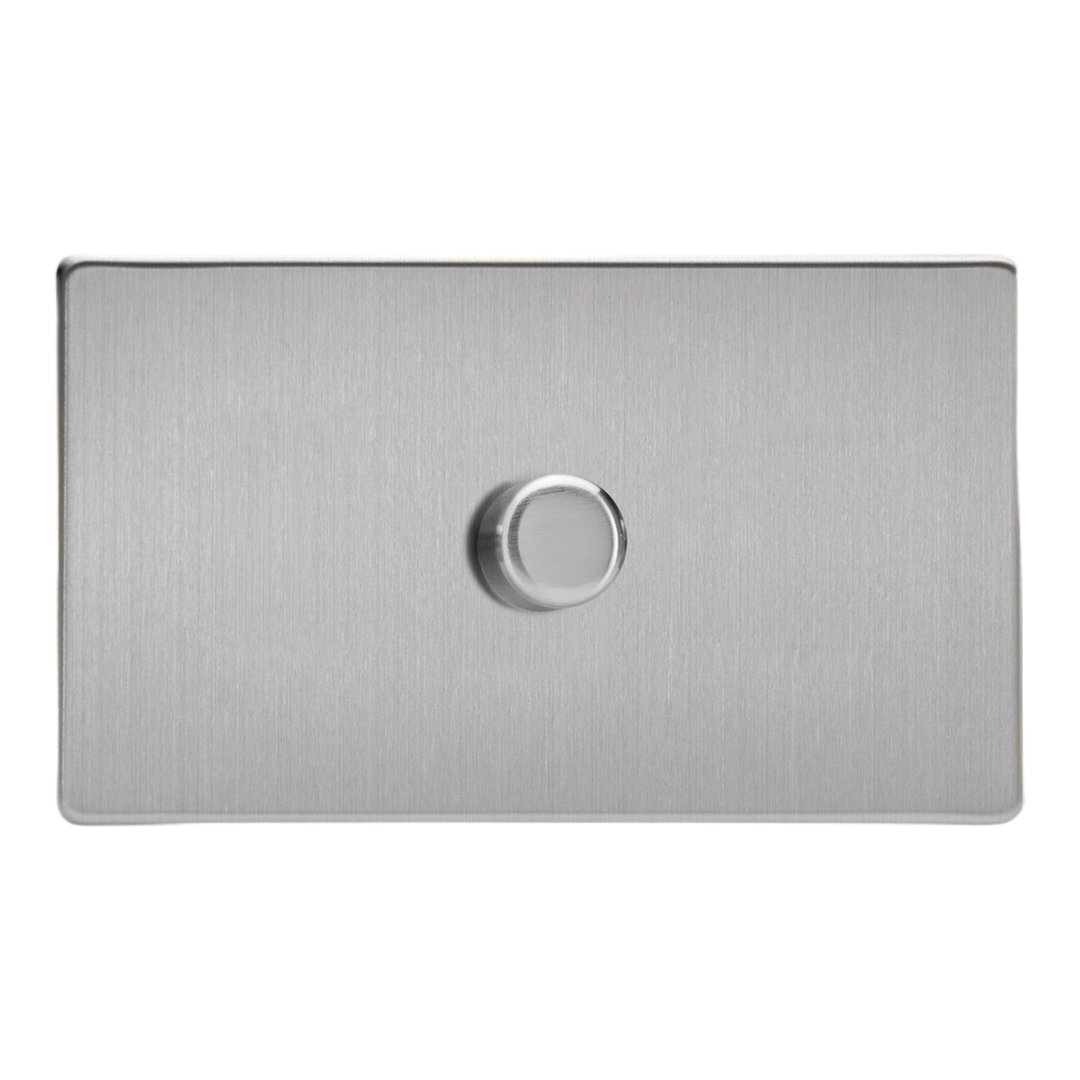

Product Description: 1-Gang 2-Way V-Plus Push On/Off Rotary Dimmer 1 x 200-1400W (Twin Plate)
Range: Screwless
Finish: Brushed Steel
Product Category: Halogen Dimmers
Insert/Knob Colour: Brushed Steel Knob
Barcode: 5021575160574
Dimensions: 86x147x53mm
Faceplate Depth: 4mm
Net Weight: 319.87g
Gross Weight: 320g
Fixing Centres: 120.6mm
Depth from Mounting Face: 28.5mm
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: Halogen; 1000W
Maximum Current Rating: 4.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Plus intelligent dimming technology
Ideal for mains and low voltage halogen lighting
Soft start feature and intelligent overload protection
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
