Data Sheet

Product Code: IDWP701S

This product is no longer available for purchase

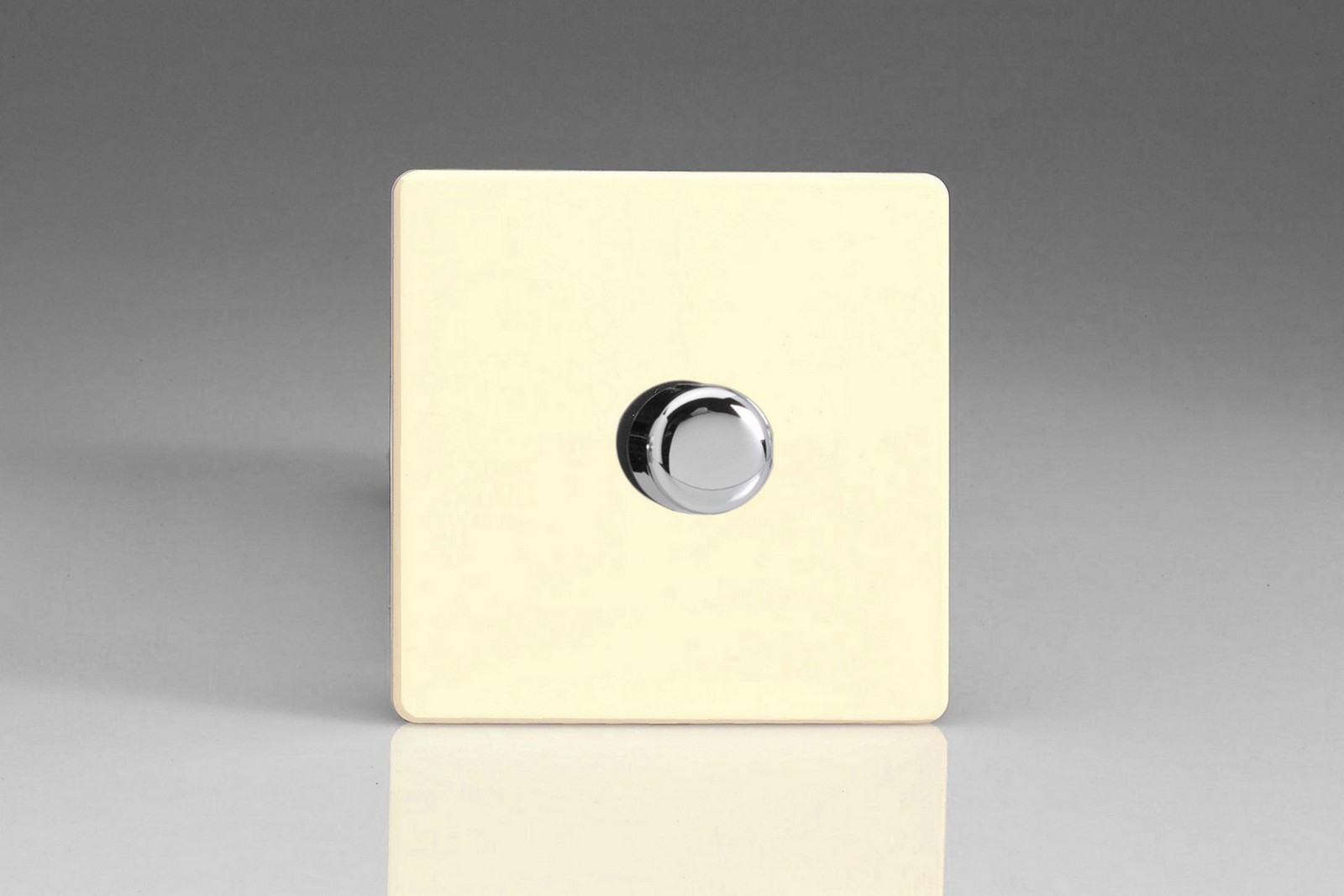

Product Description: 1-Gang 2-Way Push-On/Off Rotary Dimmer 1 x 60-700W

Range: Screwless

Finish: White Chocolate

Product Category: V-Plus Dimmer

Insert/Knob Colour: Chrome Knob

Barcode: 5021575170689

Dimensions: 86x86x48mm

Faceplate Depth: 4mm

Net Weight: 166g

Gross Weight: 168g

Fixing Centres: 60.3mm

Depth from Mounting Face: 28.5mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen; 700W

Maximum Current Rating: 3A

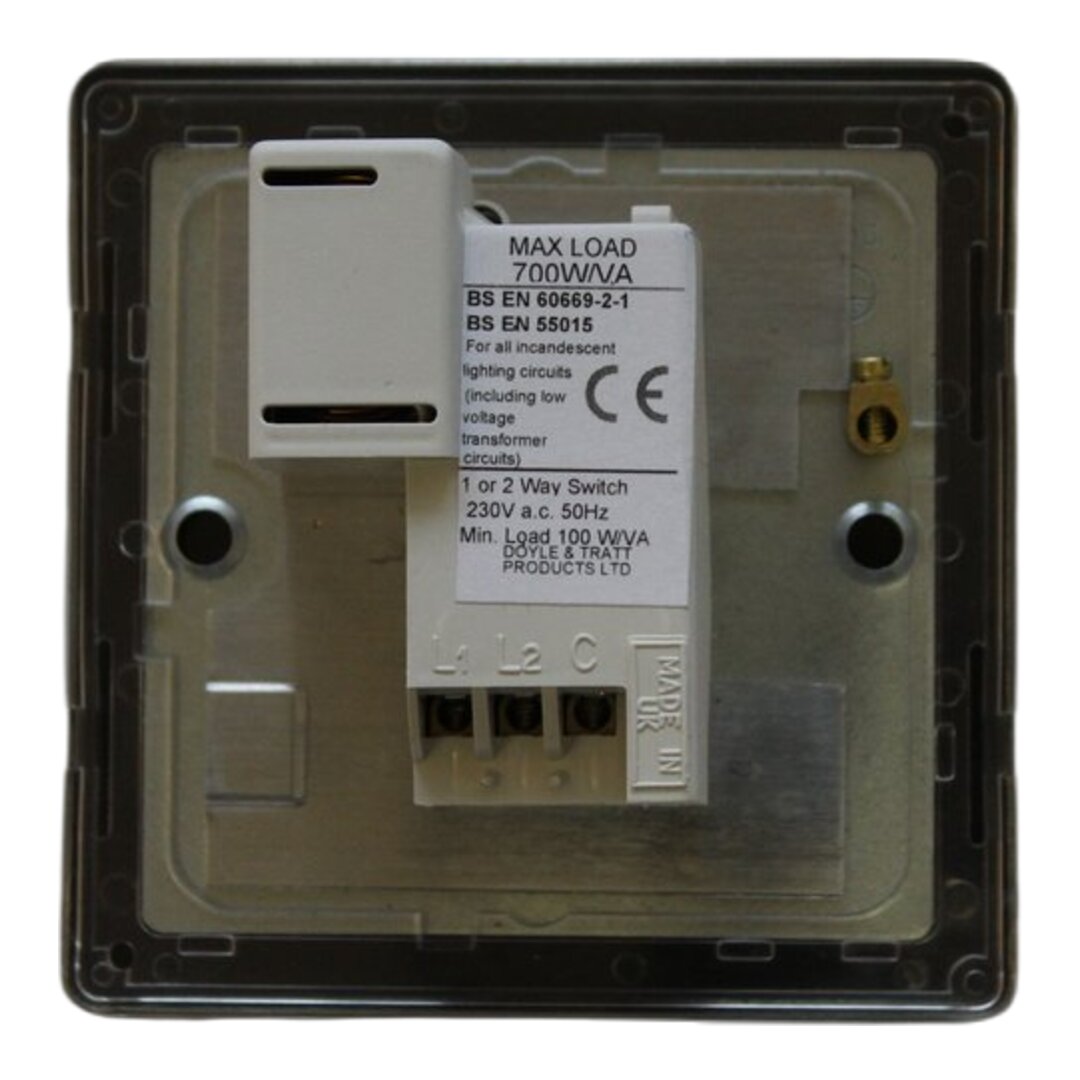

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Not suitable for motors or fans. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: #N/A

Declaration of Conformity

Product Features

  V-Plus intelligent dimming technology

  Ideal for mains and low voltage halogen lighting

  Soft start feature and intelligent overload protection

  Sleek, low-profile screwless faceplate

Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

White Chocolate Finish
Ideal for rooms with cream accents, the White Chocolate finish is paired with iridium rockers for added sophistication. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
