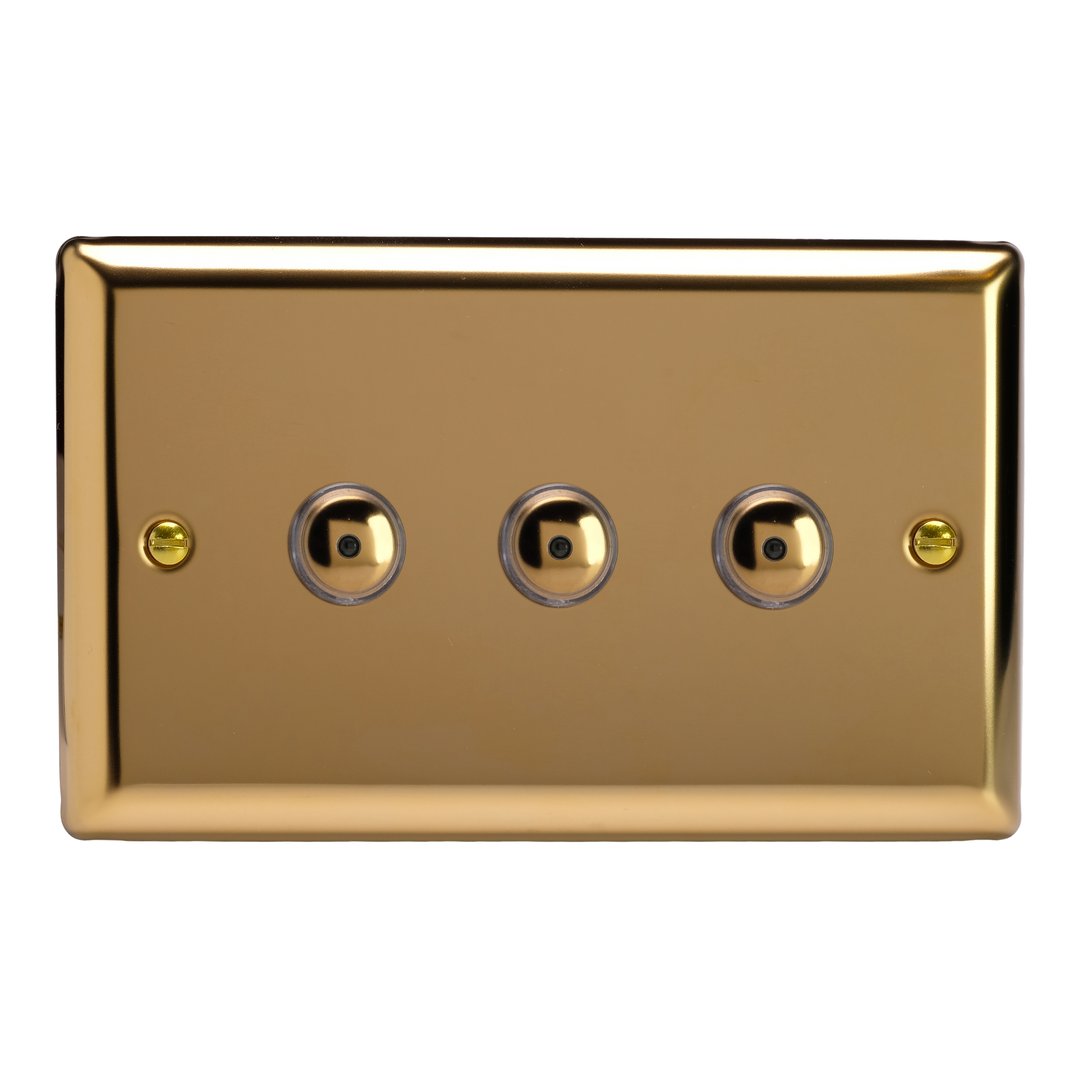

Product Description: 3-Gang 1-Way V-Pro IR Remote/Touch Control Master LED Dimmer 3 x 0-100W (Twin Plate)
10 YEAR GUARANTEE
BRITISH MADE
Range: Classic
Finish: Victorian Brass
Product Category: LED Dimmers
Insert/Knob Colour: Brass Buttons
Barcode: 5021575602005
Dimensions: 91x150x30mm
Faceplate Depth: 8mm
Net Weight: 219g
Gross Weight: 222g
Fixing Centres: 120.6mm
Depth from Mounting Face: 19.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 100W
Maximum Current Rating: 0.9A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
1-Way or multi-Way when used with V-Pro IR dimming Companion Controller unit(s)
Soft start feature and intelligent overload protection
Bevelled edge faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Date of Issue: 29th March 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
