Product Code: JDSDP303S

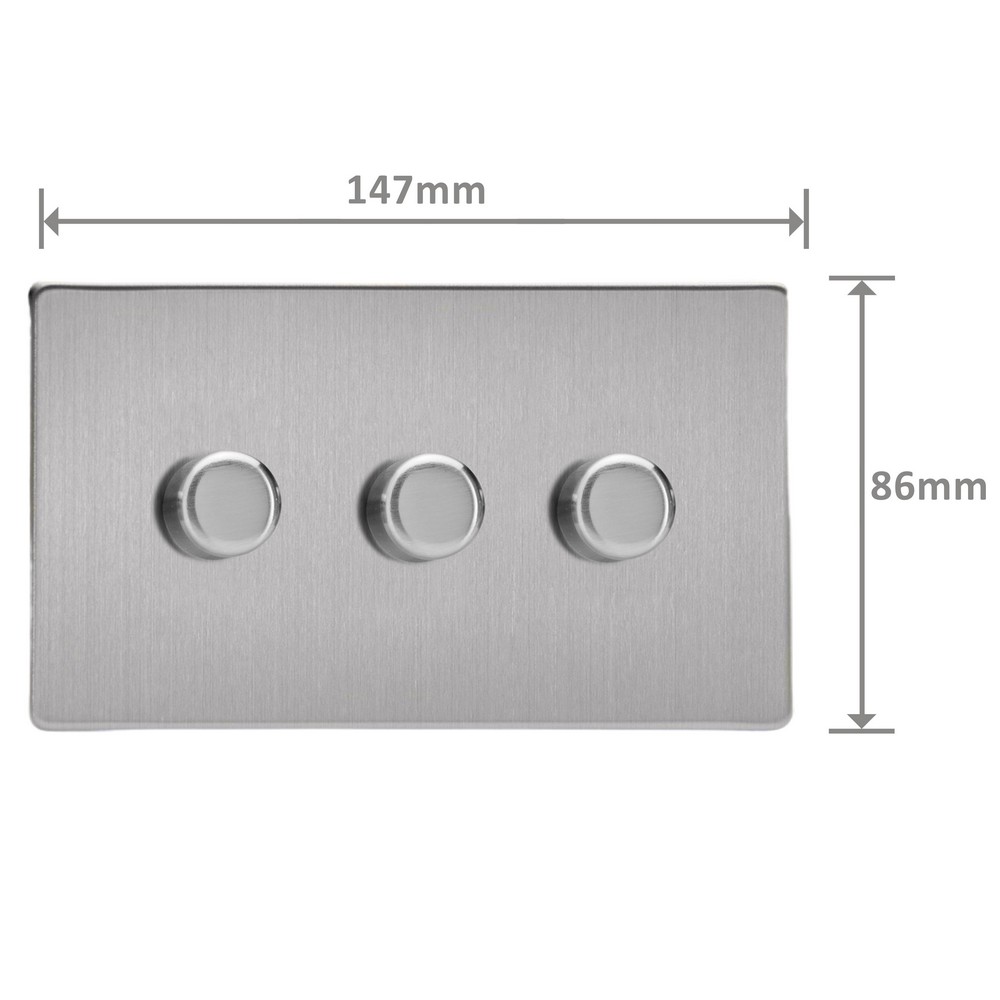

Product Description: 3-Gang 2-Way Push-On/Off Rotary LED Dimmer 3 x 0-120W (1-10 LEDs) (Twin Plate)

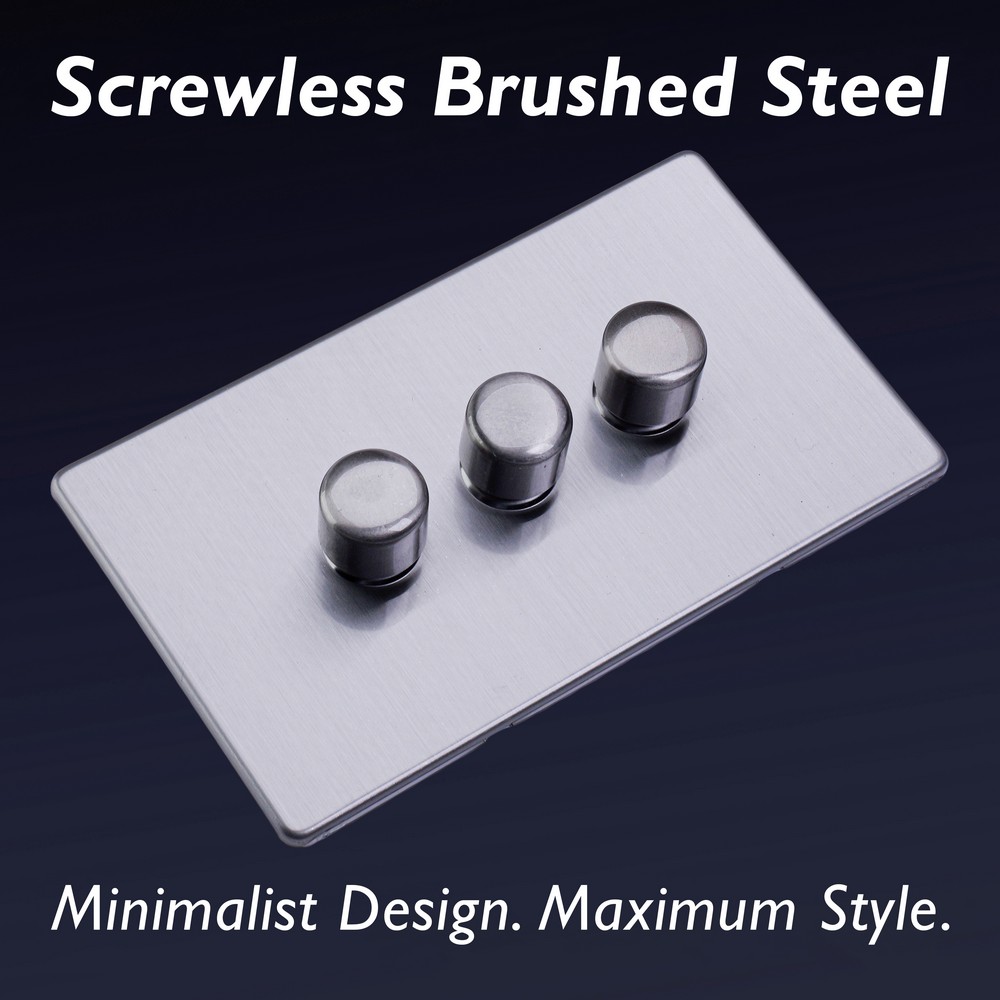

Finish: Brushed Steel
Product Category: V-Pro Dimmer
Insert/Knob Colour: Steel Knobs
Faceplate Depth: 4mm
Product Weight: 380g
Fixing Centres: 120.6mm
Depth from Mounting Face: 23.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 220/250V AC
Maximum Load Rating: LED; 120W (Max. 10 lamps)
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 06th August 2020 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
