Data Sheet

Product Code: TIDR1001

This product is no longer available for purchase

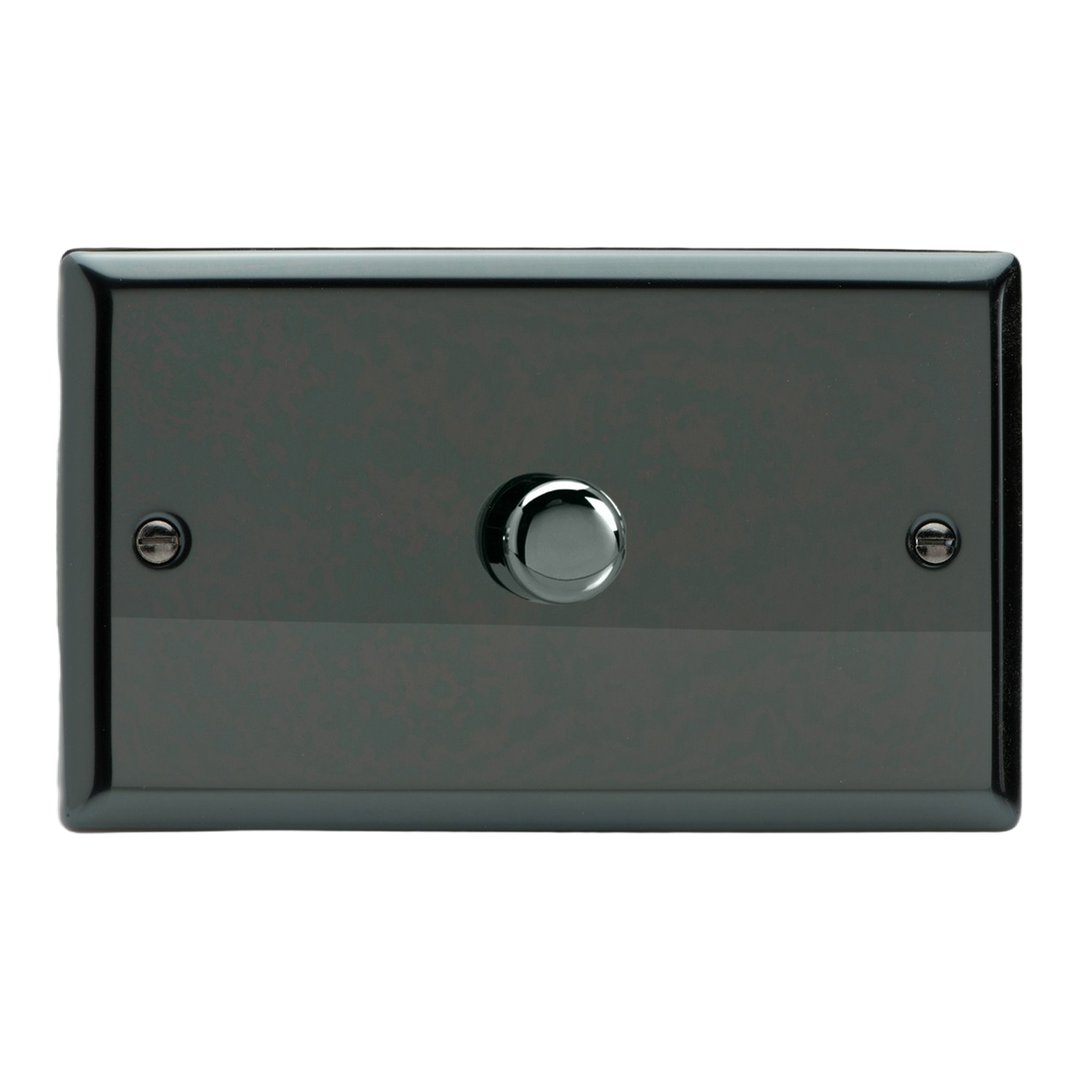

Product Description: 1-Gang 1-Way Rotary Dimmer 1 x 200-1000W (Twin Plate)

Range: Classic

Finish: Iridium

Product Category: V-Dim Dimmer

Insert/Knob Colour: Iridium Knob

Barcode: 5021575940763

Dimensions: 91x150xmm

Faceplate Depth: 8mm

Net Weight: 209g

Gross Weight: 212g

Fixing Centres: 120.6mm

Depth from Mounting Face: 22.9mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Halogen; 1000W

Maximum Current Rating: 4.3A

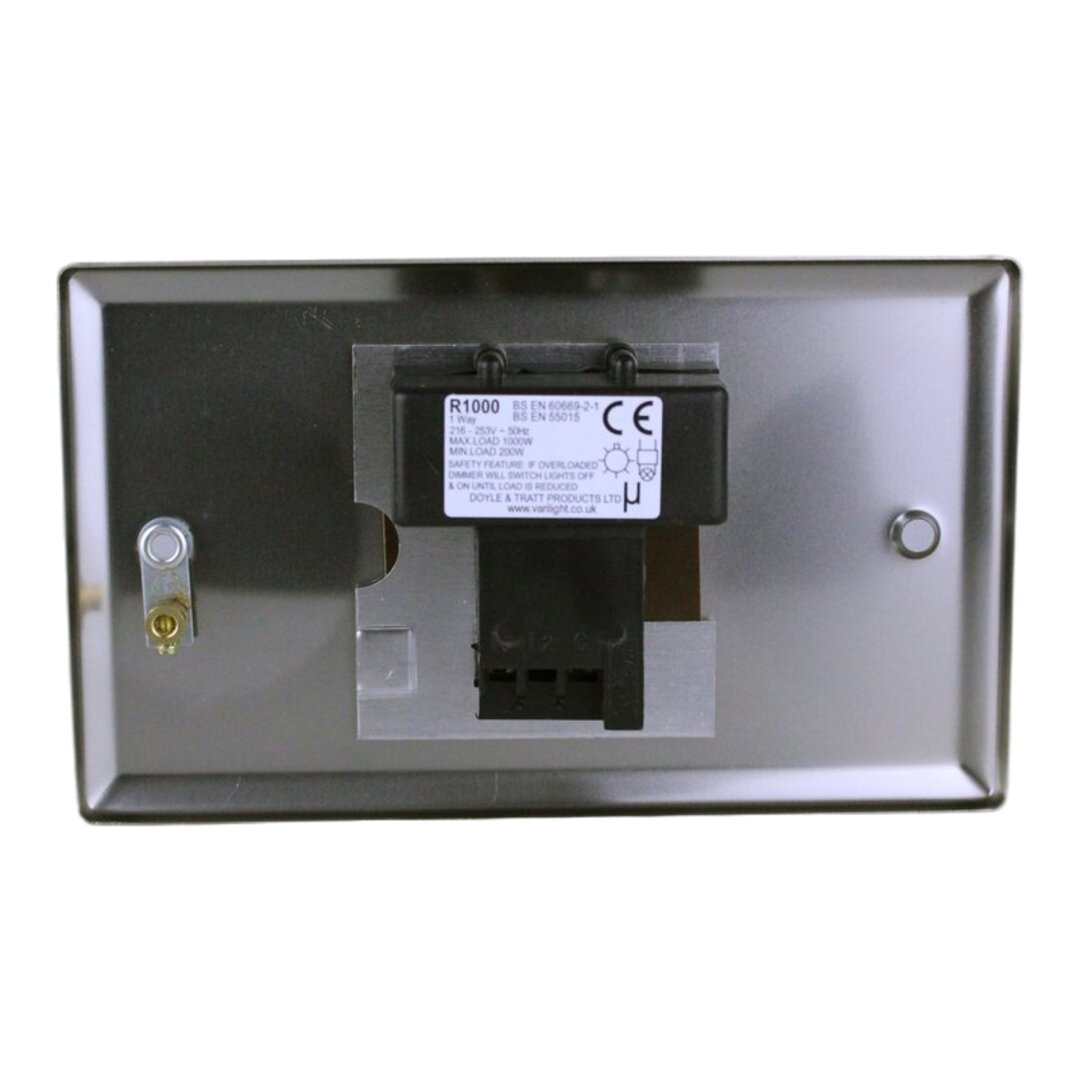

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits.

Safety Advice: Not suitable for wire-wound low voltage transformers, fluorescent lighting, motors or fans. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: #N/A

Declaration of Conformity

Product Features

  V-Dim dimming technology

  Ideal for mains and low voltage halogen lighting

  Overload protection that automatically switches off the lights when an overload is detected

  Bevelled edge faceplate

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts or opt for of black or matching Iridium rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
