Data Sheet
Product Code: TQR1001W
This product can also be made using our Matrix System, using the products WQ1W + MTR1000 x 1

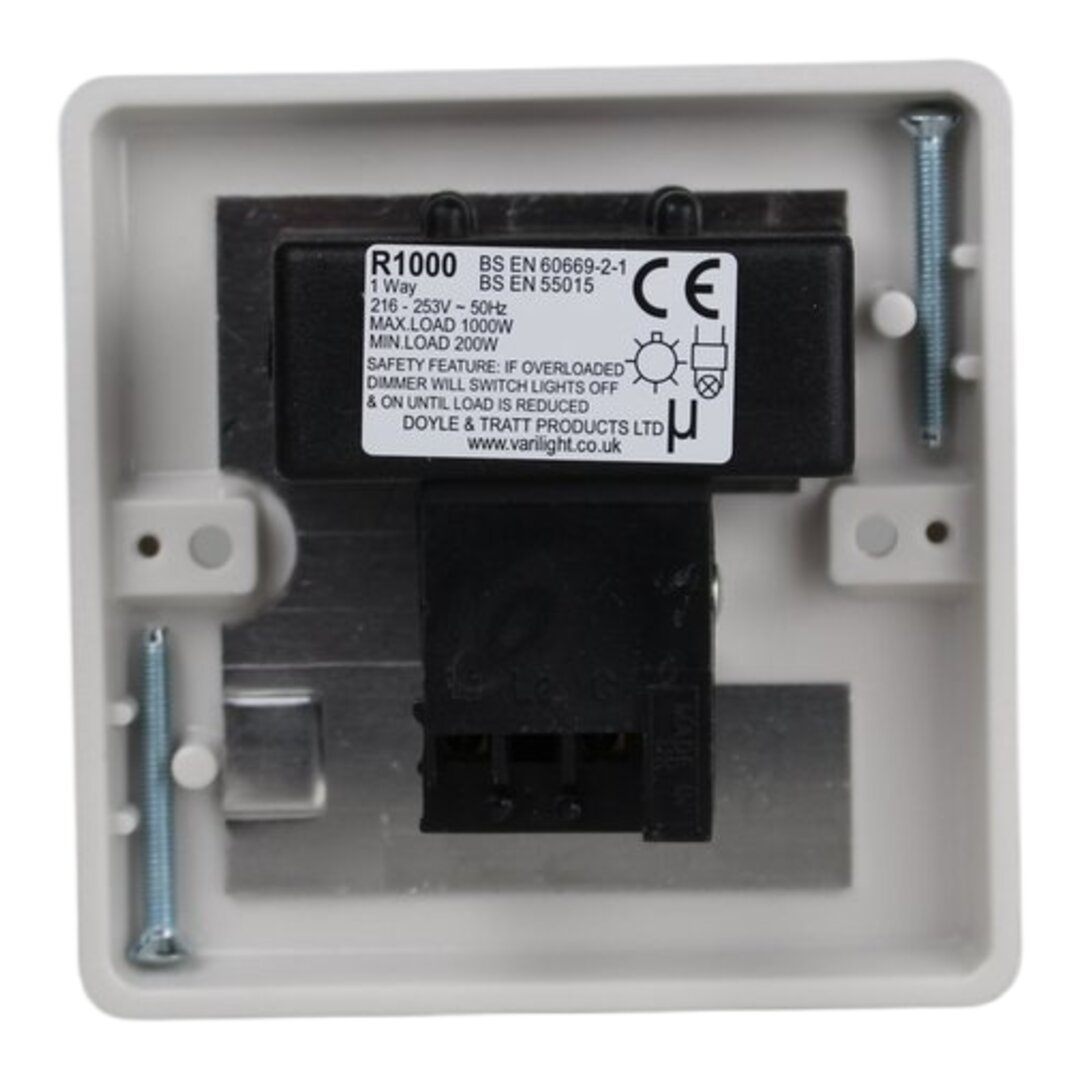

Product Description: 1-Gang 1-Way V-Dim Rotary Dimmer 1 x 200-1000W
Range: White
Finish: White Plastic
Product Category: Halogen Dimmers
Insert/Knob Colour: White Knob
Barcode: 5021575670752
Dimensions: 85x85xmm
Faceplate Depth: 11mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 20.9mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Halogen; 1000W
Maximum Current Rating: 4.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
V-Dim dimming technology
Ideal for mains and low voltage halogen lighting
Overload protection that automatically switches off the lights when an overload is detected
Durable white plastic
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 18th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
