Data Sheet
Product Code: JQP401W
This product can also be made using our Matrix System, using the products WQ1W + MJP120 x 1

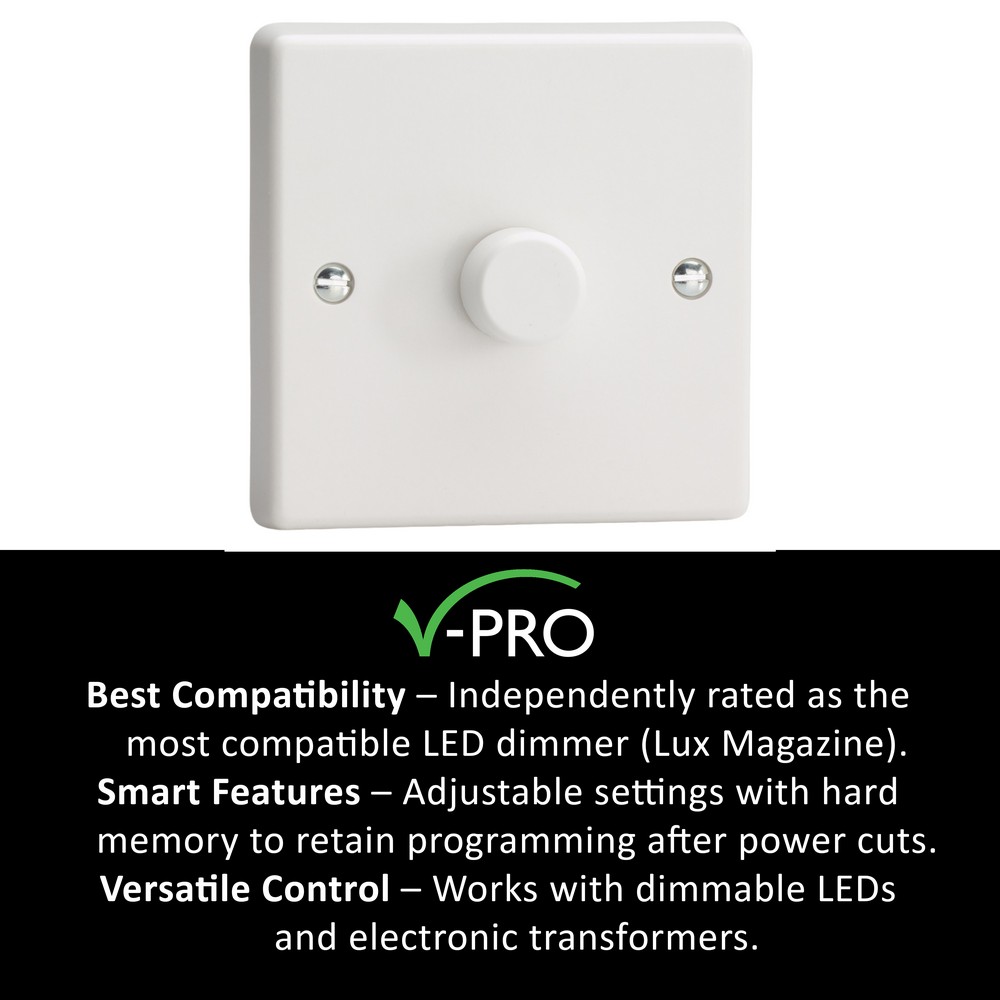

Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Range: White
Finish: White Plastic
Product Category: LED Dimmers
Insert/Knob Colour: White Knob
Barcode: 5021575581065

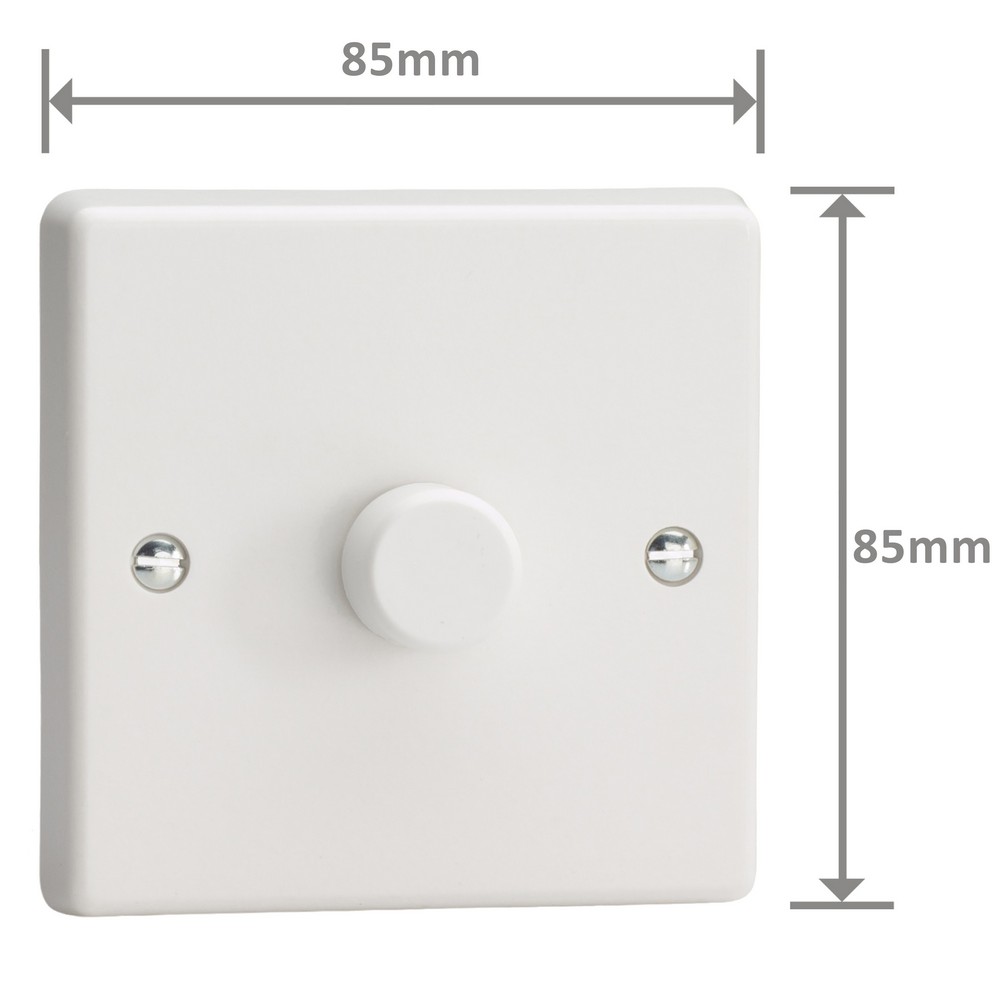

Dimensions: 85x85x47mm
Faceplate Depth: 11mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 120W
Maximum Current Rating: 1.3A

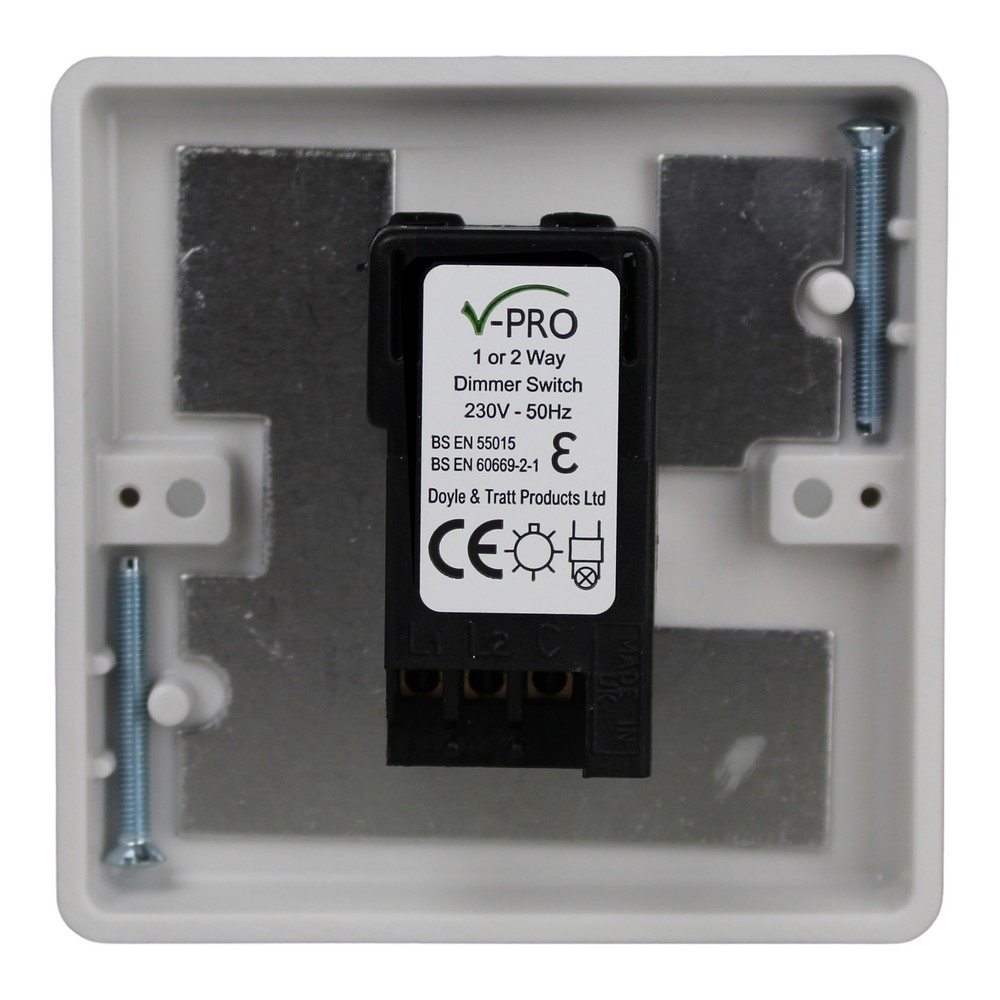

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Durable white plastic
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th May 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
