Data sheet: JK1A

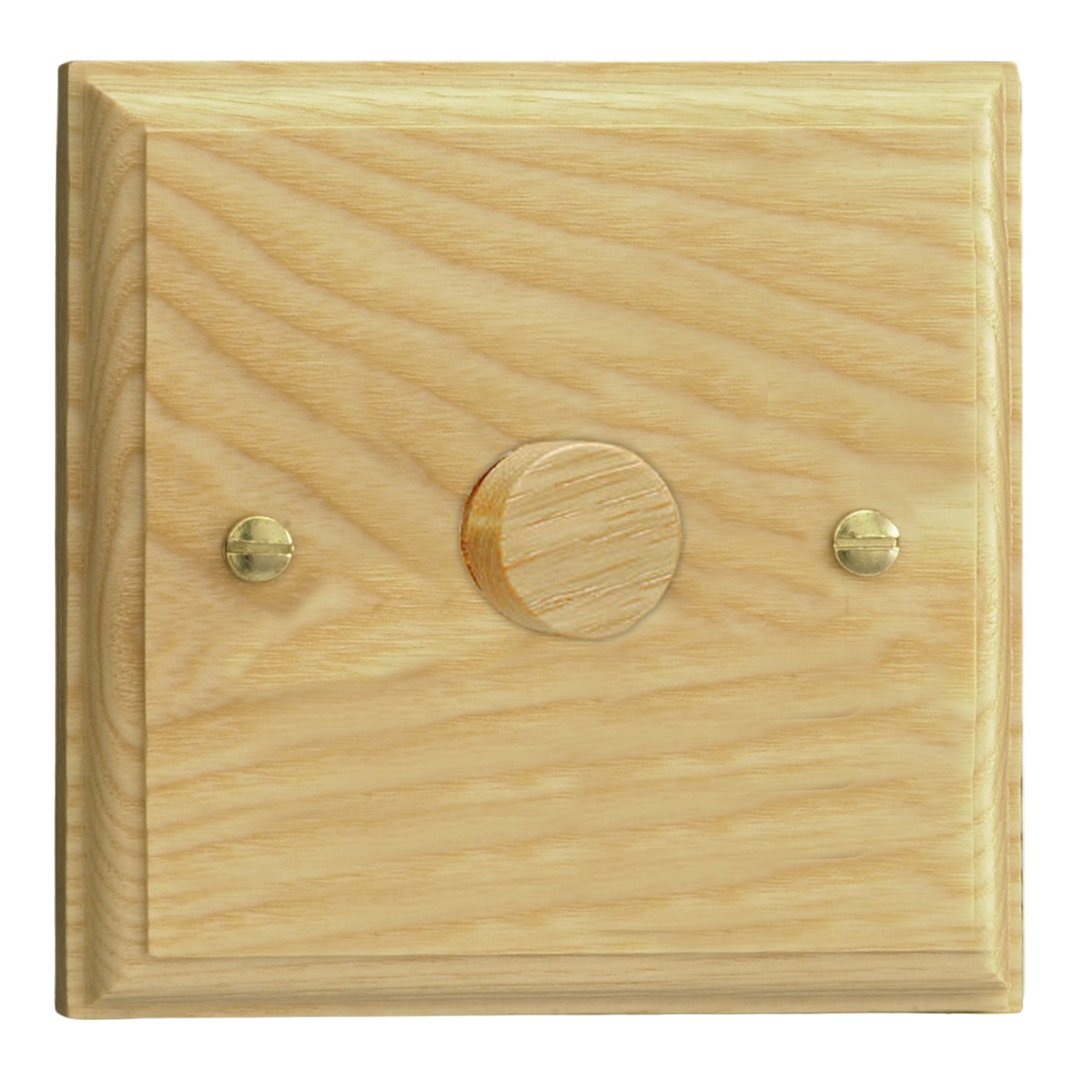

1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W, Kilnwood Ash (JK1A)

Data sheet

JK1A 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W

Name: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Brand: VARILIGHT
SKU: JK1A

Single 2-Way 0-120W

Range Kilnwood Finish Ash

Product features

V-Pro intelligent dimming, the industry standard for LED
Dims 0-120W of lighting with no minimum load and no maximum number of lamps
Optimised for dimmable LEDs, no buzzing, no flickering
Silent trailing edge dimming that is gentle on the load
Soft start brings the lights up gently, with intelligent overload protection
Adjustable minimum brightness and a choice of driving modes to get the best from any LED
Push on/off, rotate to dim; settings are saved even after a power cut
Solid timber faceplate, 15mm deep, fits a 25mm back box

Product

Product code: JK1A
Category: V-Pro Dimmer
Range: Kilnwood
Finish: Ash
Insert / knob colour: Ash Knob
Barcode: 5021575973990

Size and fitting

Dimensions: 96x96x53mm
Faceplate depth: 15mm
Fixing centres: 60.3mm
Recommended back box depth: 25mm
Net weight: 126g
Gross weight: 128g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: LED: 120W
Terminal (Live): 3.2mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable safety standard: BS EN 60669-2-1
Commodity code: 85365005

Declaration of Conformity

Kilnwood collection

The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Ash finish

The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
