Instruction leaflet PDF

Data sheet: WSD2

2-Gang Matrix Kit For Rotary Dimmers (Twin Plate), Value Matt Chrome (WSD2)

Data sheet

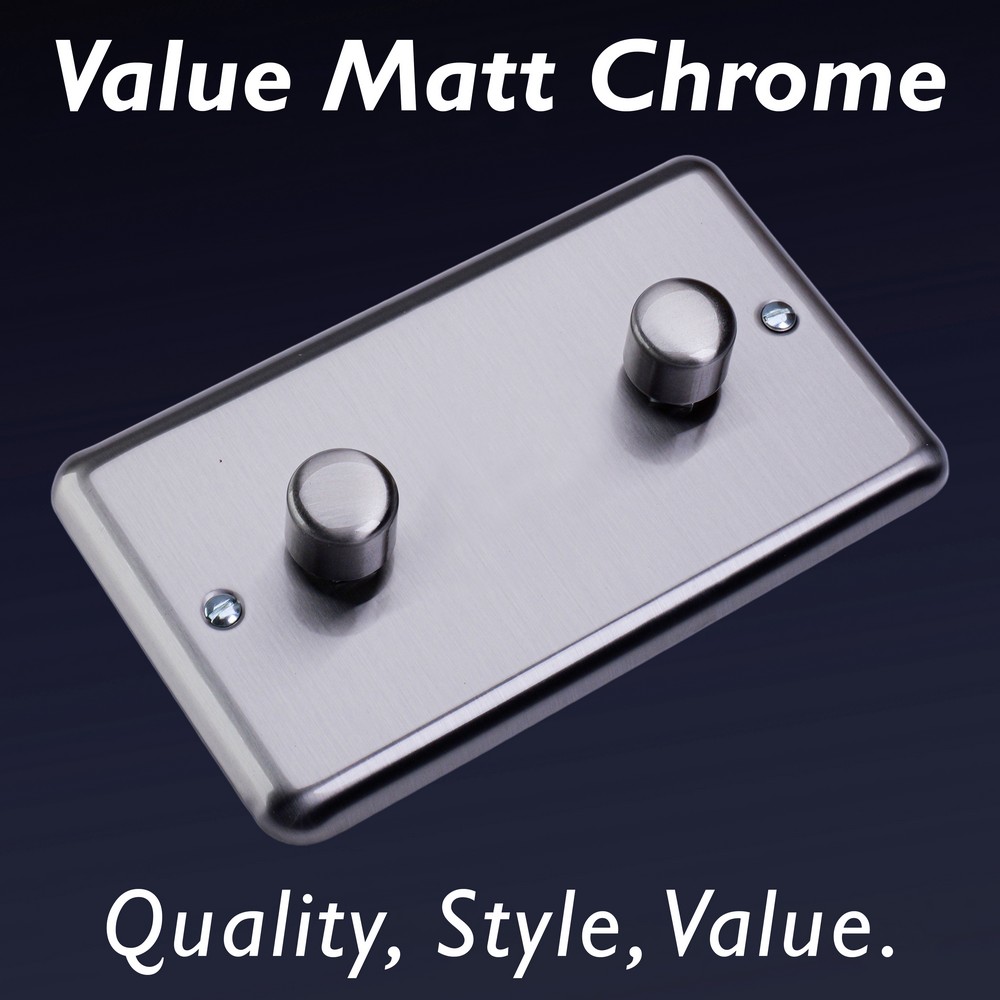

WSD2 2-Gang Matrix Kit For Rotary Dimmers (Twin Plate)

Range Value Finish Matt Chrome

Product features

The Matrix system gives you complete dimming flexibility
Any combination of dimmers you can imagine, on one plate
Kit includes the faceplate, knobs, nuts and a nut spinner, everything except the dimmer modules
Dimmer modules purchased separately, so you only pay for what you use
Takes S, M and L modules plus the Wi-Fi module, up to 600W of LED across the plate
The same modules replace the dimmer modules in existing VARILIGHT plates
Raised profile faceplate, 7mm deep with chrome screws

Product

Product code: WSD2
Category: Dimmer Faceplate Kits
Range: Value
Finish: Matt Chrome
Insert / knob colour: Brushed Steel Knob
Barcode: 5021575008357

Size and fitting

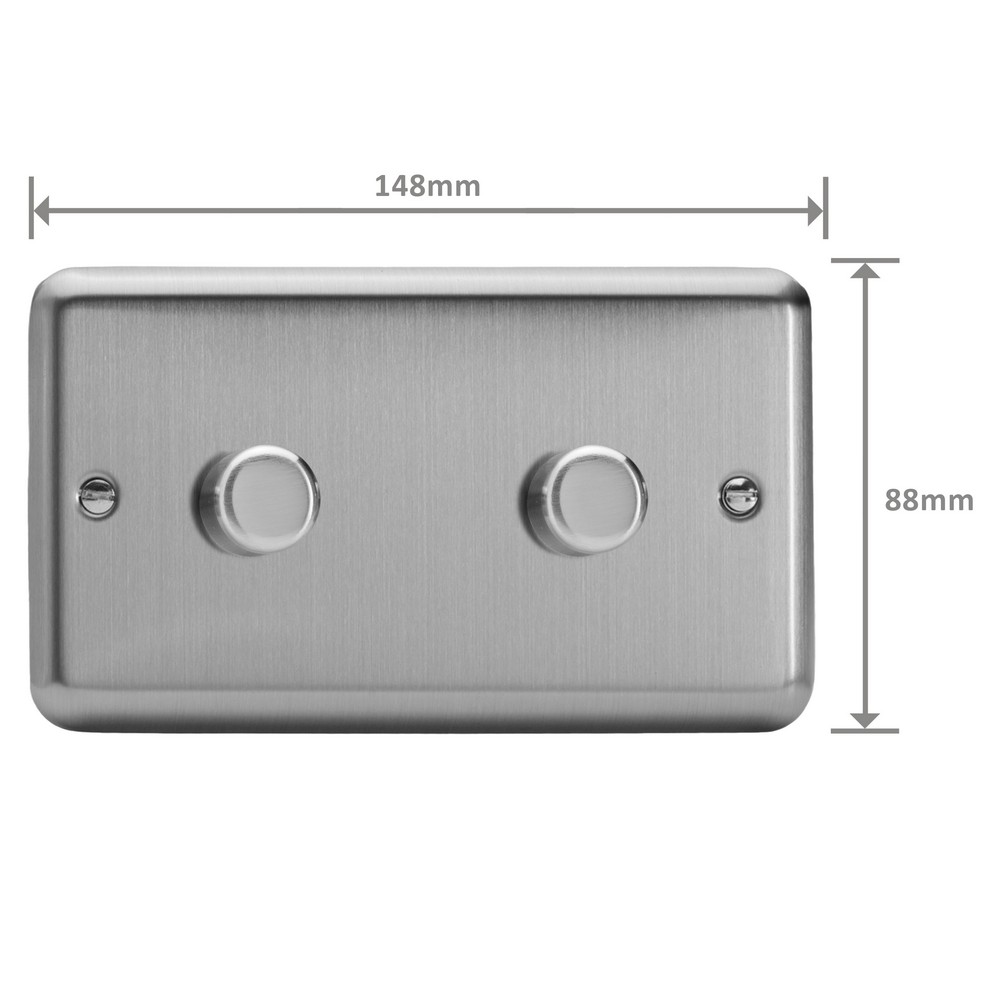

Dimensions: 88x148x*mm
Faceplate depth: 7mm
Fixing centres: 120.6mm
Depth from mounting face: Module Dependent
Net weight: 220g
Gross weight: 222g

Electrical

Operating voltage: 230V 50Hz
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Product Must Be Earthed.
Applicable safety standard: BS EN 60669
Commodity code: 85389091

Declaration of Conformity

Value collection

The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome finish

Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
