Data sheet: XDBU65BS

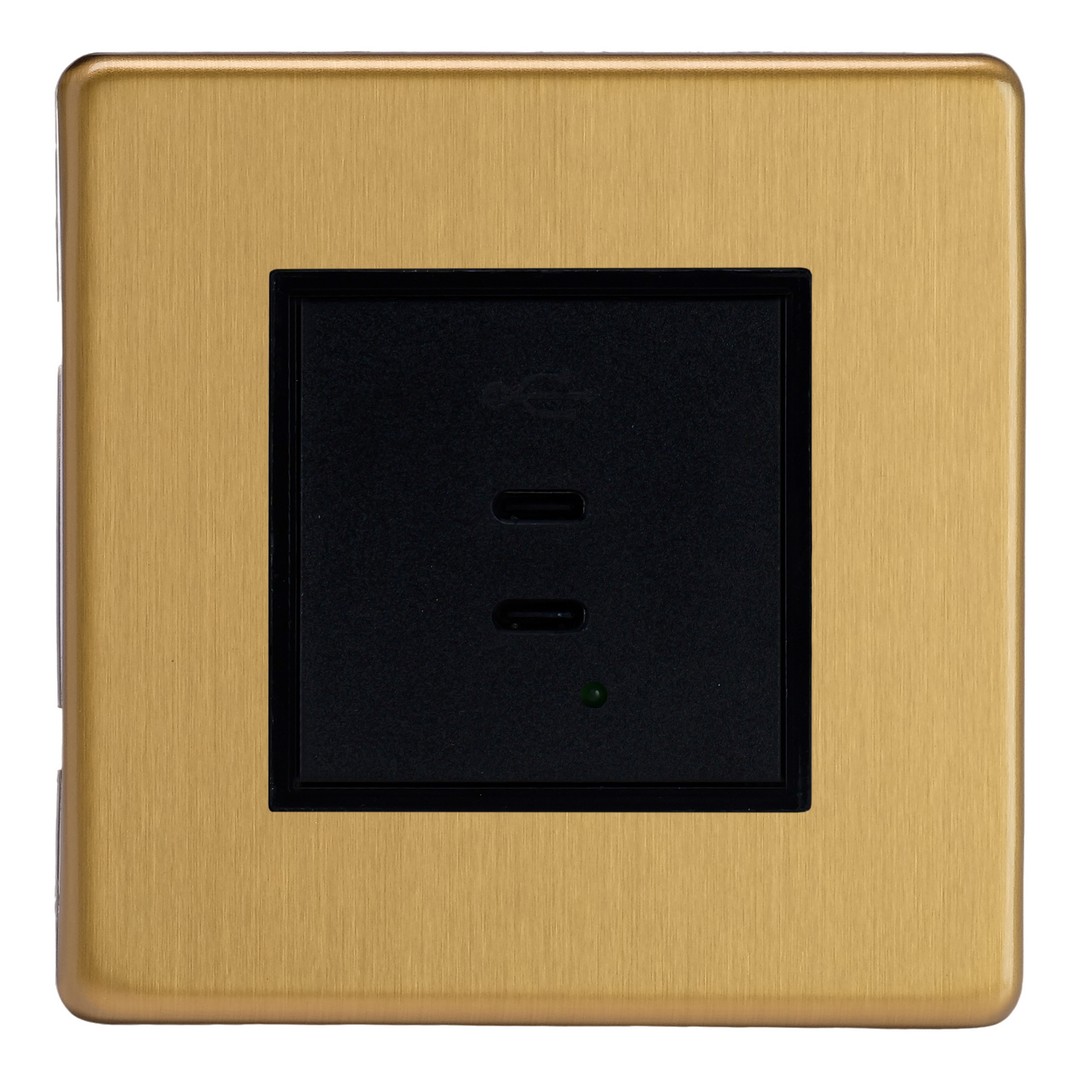

2-Gang 65W USB C+C Charger (Single Plate), Screwless Brushed Brass (XDBU65BS)

Data sheet

XDBU65BS 2-Gang 65W USB C+C Charger (Single Plate)

Range Screwless Finish Brushed Brass

Product features

Extra fast charging at 65W from twin USB-C ports
Power shared intelligently so both devices charge at optimum speed
Supports Power Delivery 3.0, Quick Charge 3.0, AFC, FCP and Apple Fast Charge
100-240V AC input for use anywhere in the world
Frees up mains sockets for other appliances
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 47mm back box

Product

Product code: XDBU65BS
Category: USB C Charging Ports
Range: Screwless
Finish: Brushed Brass
Insert / knob colour: Black Insert
Barcode: 5021575932874

Size and fitting

Dimensions: 86x86x47mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 47mm
Recommended back box depth: 47mm
Net weight: 136g
Gross weight: 138g

Electrical

Operating voltage: 100-240VAC 50/60Hz
Terminal (Live): 4mm
Terminal (Neutral): 4mm
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits.
Safety advice: Output: USB C: 5V-3A/9V-3A/12V-3A/15V-3A/20V-3.25A (for a single device), USB C + USB C: 5V-3A (for multiple devices). Product Must Be Earthed.
Applicable safety standard: BS 1363-2; EN 50563:2011
Commodity code: 85366990

Declaration of Conformity

Screwless collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
