Data Sheet

Product Code: XDIU65BS

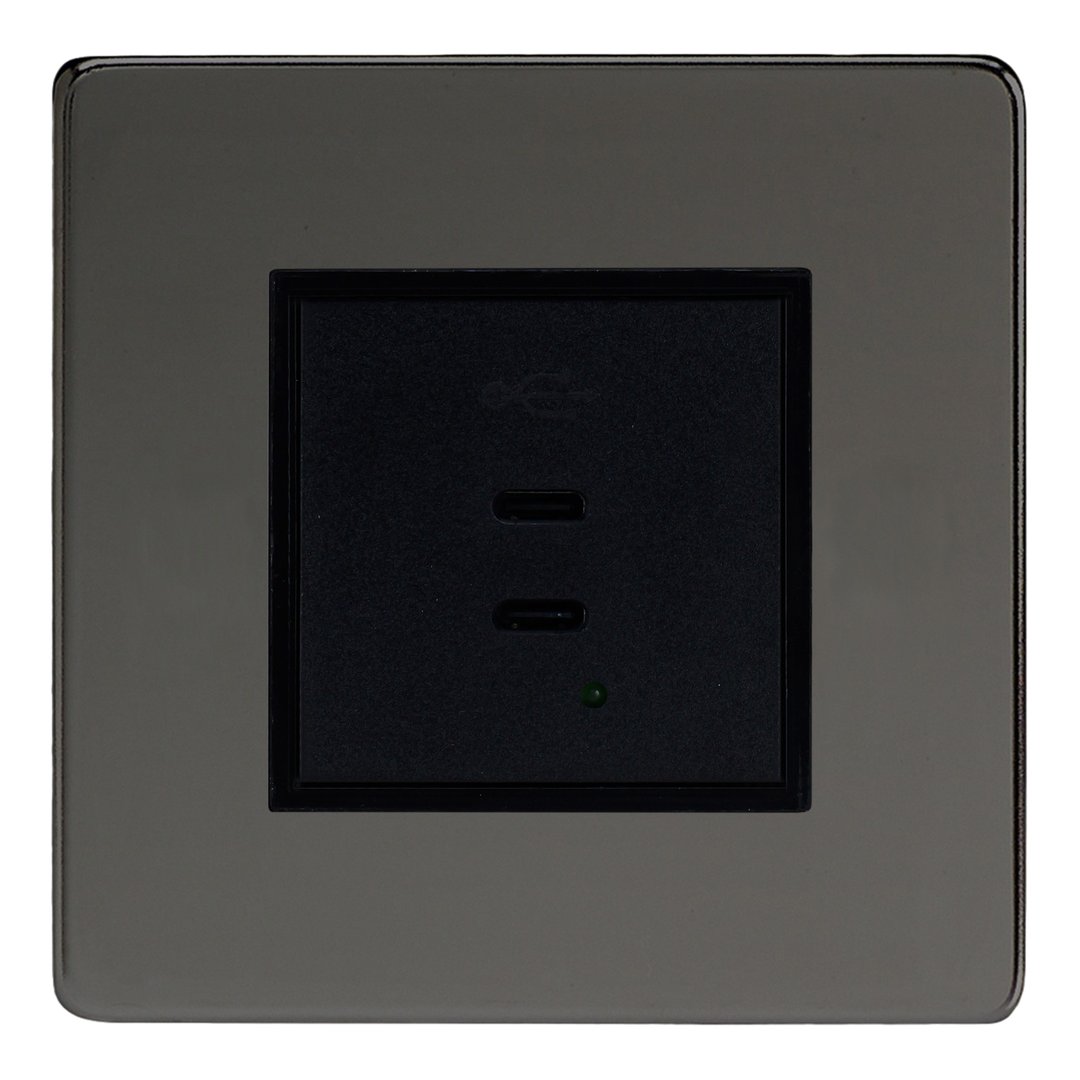

Product Description: 2-Gang 65W USB C+C Charger (Single Plate)

Range: Screwless

Finish: Iridium

Product Category: USB C Charging Ports

Insert/Knob Colour: Black Insert

Barcode: 5021575932928

Dimensions: 86x86x47mm

Faceplate Depth: 4mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 47mm

Recommended Back Box Depth: 47mm

Operating Voltage: 100-240VAC 50/60Hz

Maximum Load Rating: N/A

Terminal (Live) Diameter: 4mm; Capacity:

Terminal (Neutral) Diameter: 4mm; Capacity:

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits.

Safety Advice: Output: USB C: 5V-3A/9V-3A/12V-3A/15V-3A/20V-3.25A (for a single device), USB C + USB C: 5V-3A (for multiple devices). Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2; EN 50563:2011

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Extra fast charging at 65W from twin USB-C ports

  Power shared intelligently so both devices charge at optimum speed

  Supports Power Delivery 3.0, Quick Charge 3.0, AFC, FCP and Apple Fast Charge

  100-240V AC input for use anywhere in the world

  Frees up mains sockets for other appliances

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 47mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers.
