Data sheet: XDC6FONDS

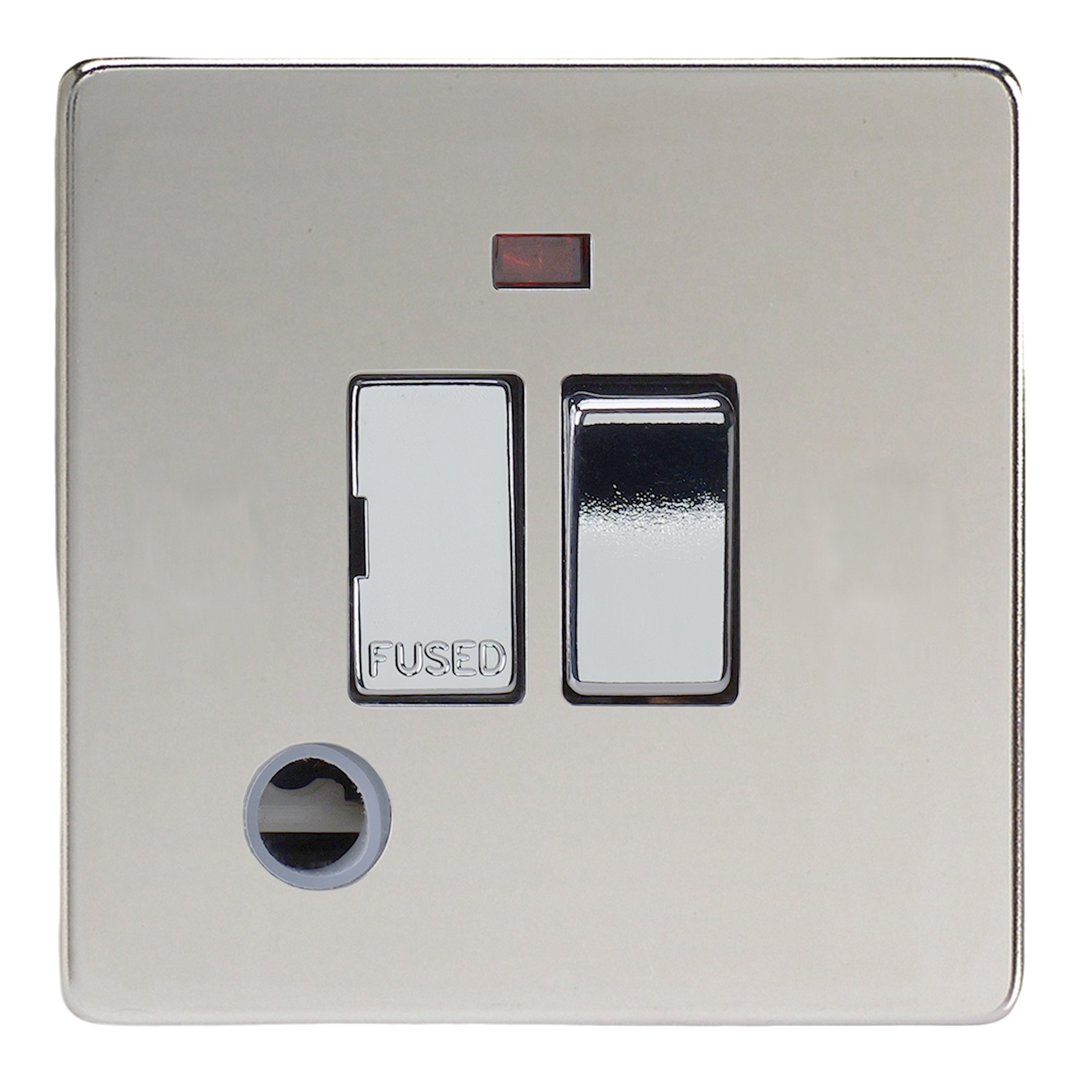

13A Switched Fused Spur with Neon with Flex Outlet, Screwless Polished Chrome (XDC6FONDS)

Data sheet

XDC6FONDS 13A Switched Fused Spur with Neon with Flex Outlet

Name: 13A Switched Fused Spur with Neon with Flex Outlet
Brand: VARILIGHT
SKU: XDC6FONDS

Fused Spur with Flex Outlet & Neon Indicator

Range Screwless Finish Polished Chrome

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Product

Product code: XDC6FONDS
Category: Fused Spur Connection Units
Range: Screwless
Finish: Polished Chrome
Insert / knob colour: Chrome Insert
Barcode: 5021575038606

Size and fitting

Dimensions: 86x86x30mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 22.2mm
Recommended back box depth: 25mm
Net weight: 176g
Gross weight: 178g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 13A
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Screwless collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Polished Chrome finish

Polished Chrome brings a bright, clean finish to any room. Choose from black or white inserts, supplied with matching polished chrome rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
