Data Sheet

Product Code: XDI2S

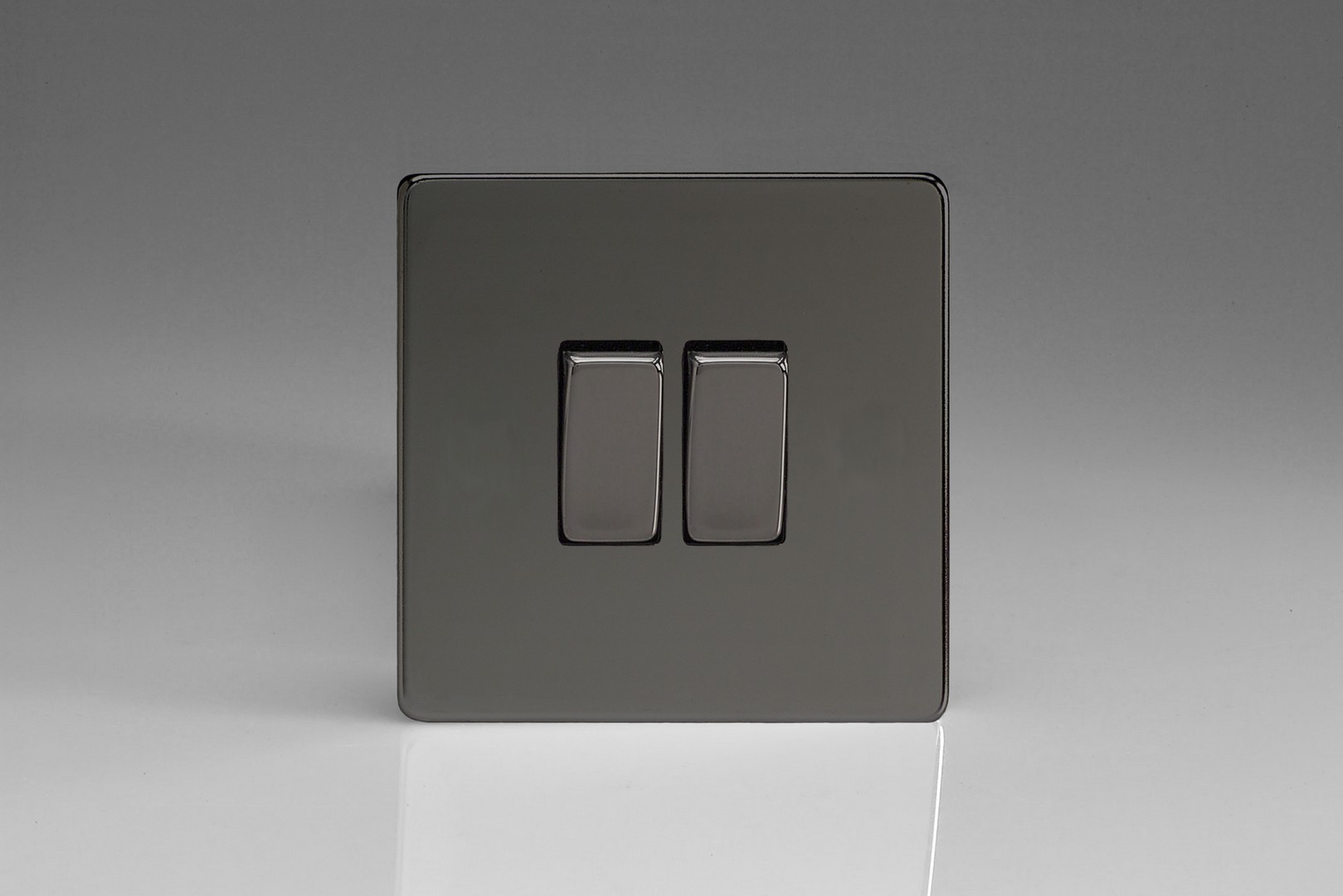

Product Description: 2-Gang 10A 1- or 2-Way Rocker Switch

Range: Screwless

Finish: Iridium

Product Category: Rocker Switches

Insert/Knob Colour: Iridium Rockers

Barcode: 5021575440249

Dimensions: 86x86x25mm

Faceplate Depth: 4mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.4mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  1- or 2-Way switching

  Suitable for controlling both mains and low voltage lighting

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
