Data Sheet
Product Code: XDSG1S
Product Description: DataGrid Plate (1 Grid Space)
Range: Screwless
Finish: Brushed Steel
Product Category: DataGrid Faceplates
Insert/Knob Colour:
Barcode: 5021575481020

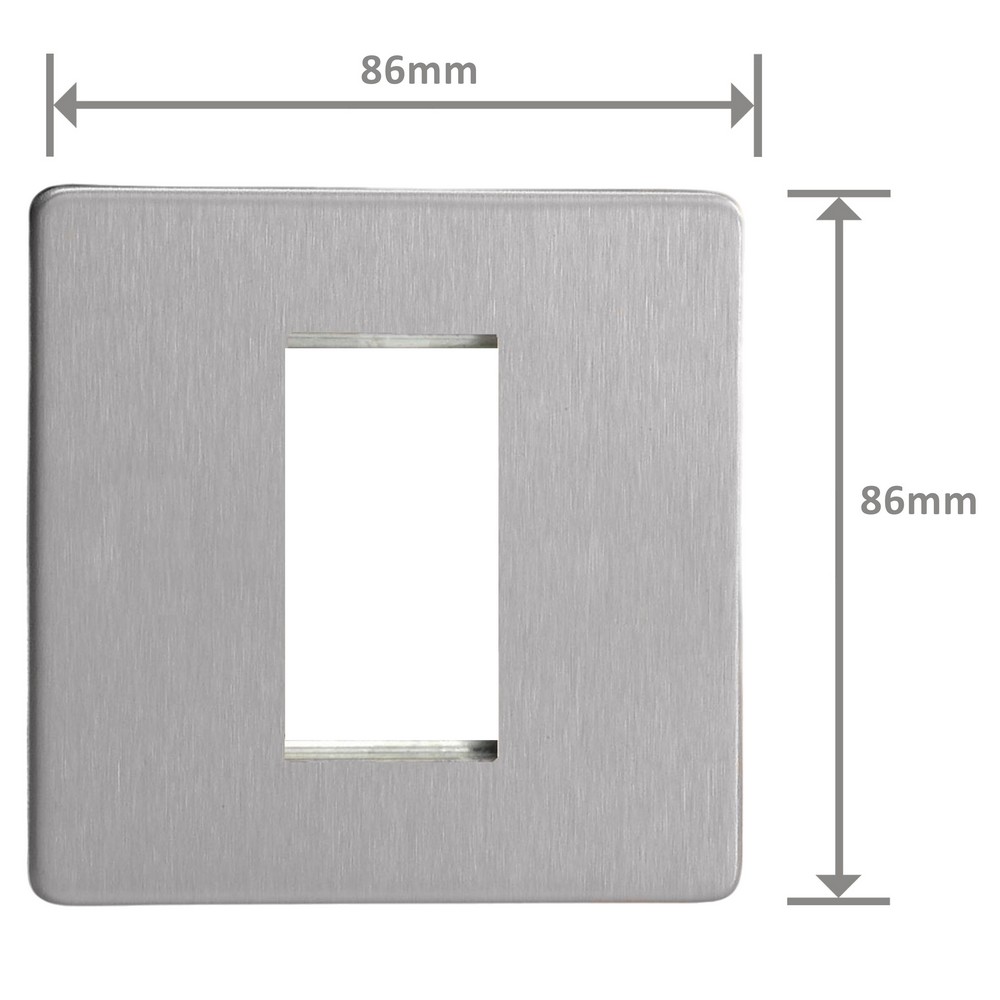

Dimensions: 86x86x10mm
Faceplate Depth: 4mm
Net Weight: 76g
Gross Weight: 78g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
Clip in any combination of DataGrid modules
Create your own data combinations
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 15th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
