Click below to print the data sheet for XDWG2S
Data Sheet
Product Code: XDWG2S
This product is no longer available for purchase

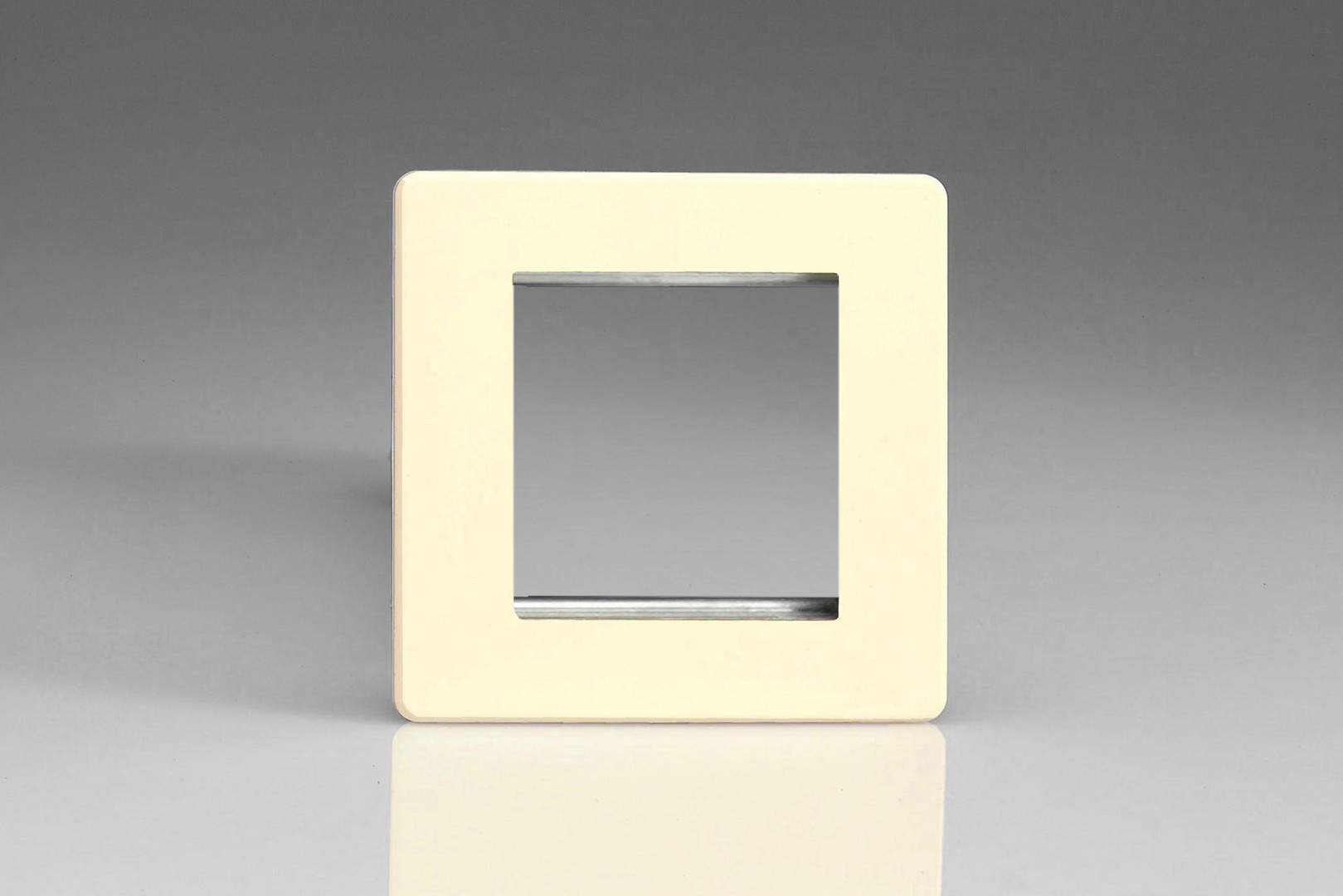

Product Description: DataGrid Plate (2 Grid Spaces)
Range: Screwless
Finish: White Chocolate
Product Category: DataGrid Faceplates
Insert/Knob Colour:
Barcode: 5021575001037
Dimensions: 86x86x10mm
Faceplate Depth: 4mm
Net Weight: 76g
Gross Weight: 78g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Clip in any combination of DataGrid modules
Create your own data combinations
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.
White Chocolate Finish
Ideal for rooms with cream accents, the White Chocolate finish is paired with iridium rockers for added sophistication. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
