Data sheet: XDYG1S.JS

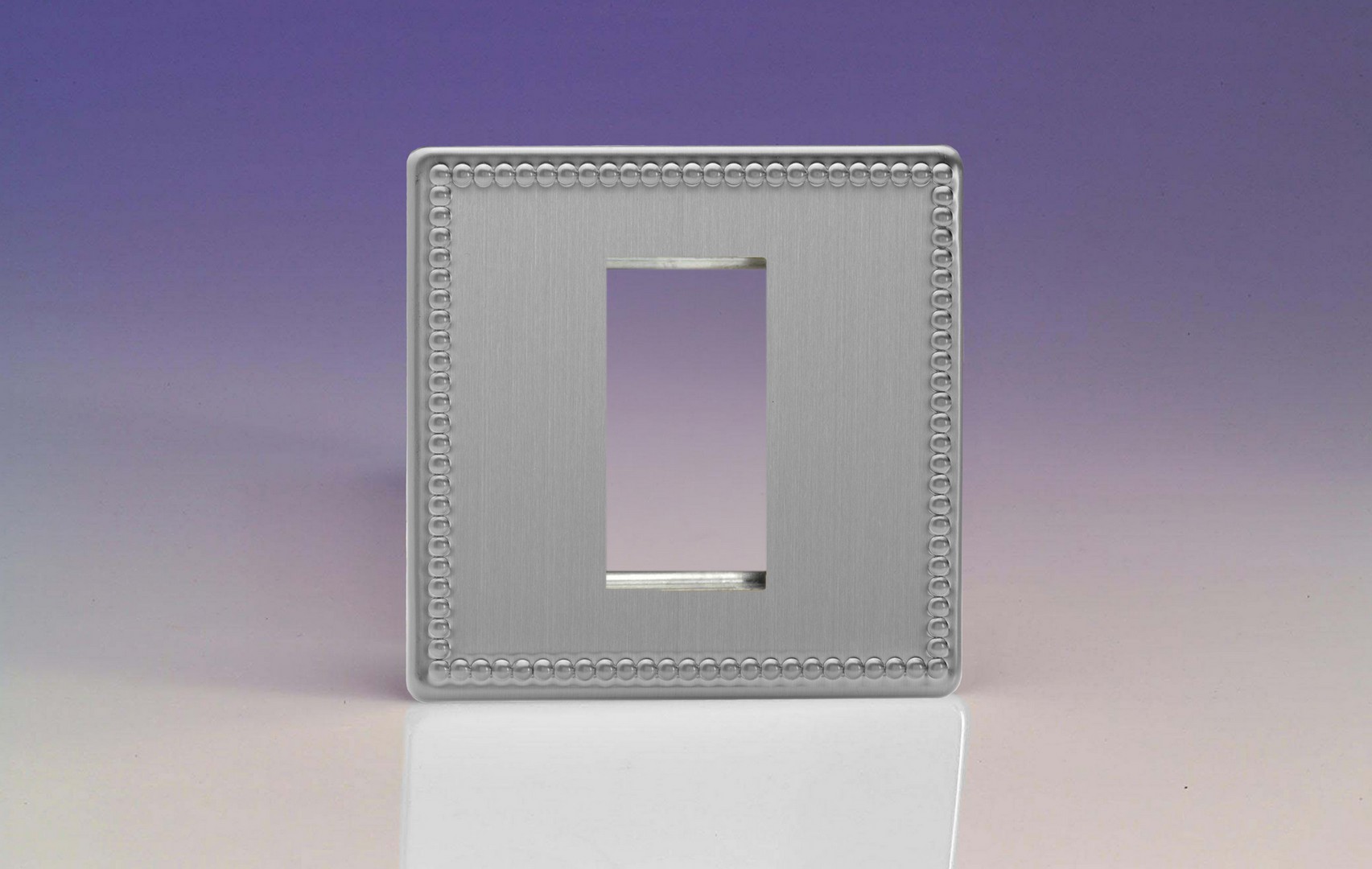

DataGrid Plate (1 Grid Space), Jubilee Brushed Steel (XDYG1S.JS)

Data sheet

XDYG1S.JS DataGrid Plate (1 Grid Space)

Range Jubilee Finish Brushed Steel

Product features

Clip in any mix of DataGrid modules: TV, satellite, network, phone, USB and more
Build the exact data combination the room needs
Over 70 DataGrid modules to choose from
Modules purchased separately
Beaded-edge screwless faceplate, just 4mm deep with no visible fixings

Product

Product code: XDYG1S.JS
Category: DataGrid Faceplates
Range: Jubilee
Finish: Brushed Steel
Barcode: 5021575156027

Size and fitting

Dimensions: 86x86x10mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: Module Dependent
Recommended back box depth: Refer to Grid Modules
Net weight: 76g
Gross weight: 78g

Electrical

Safety and compliance

Intended applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable safety standard: BS EN 60669
Commodity code: 85389091

Declaration of Conformity

Jubilee collection

The Jubilee range combines the clean lines of a screwless low profile faceplate with a delicately beaded edge, capturing the charm and grace of neo-classical design with a contemporary twist.

Brushed Steel finish

Jubilee Brushed Steel pairs the beaded-edge faceplate with matching brushed steel rockers and dimmer knobs, with a choice of black or white inserts.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
