Data Sheet
Product Code: XEBP1S

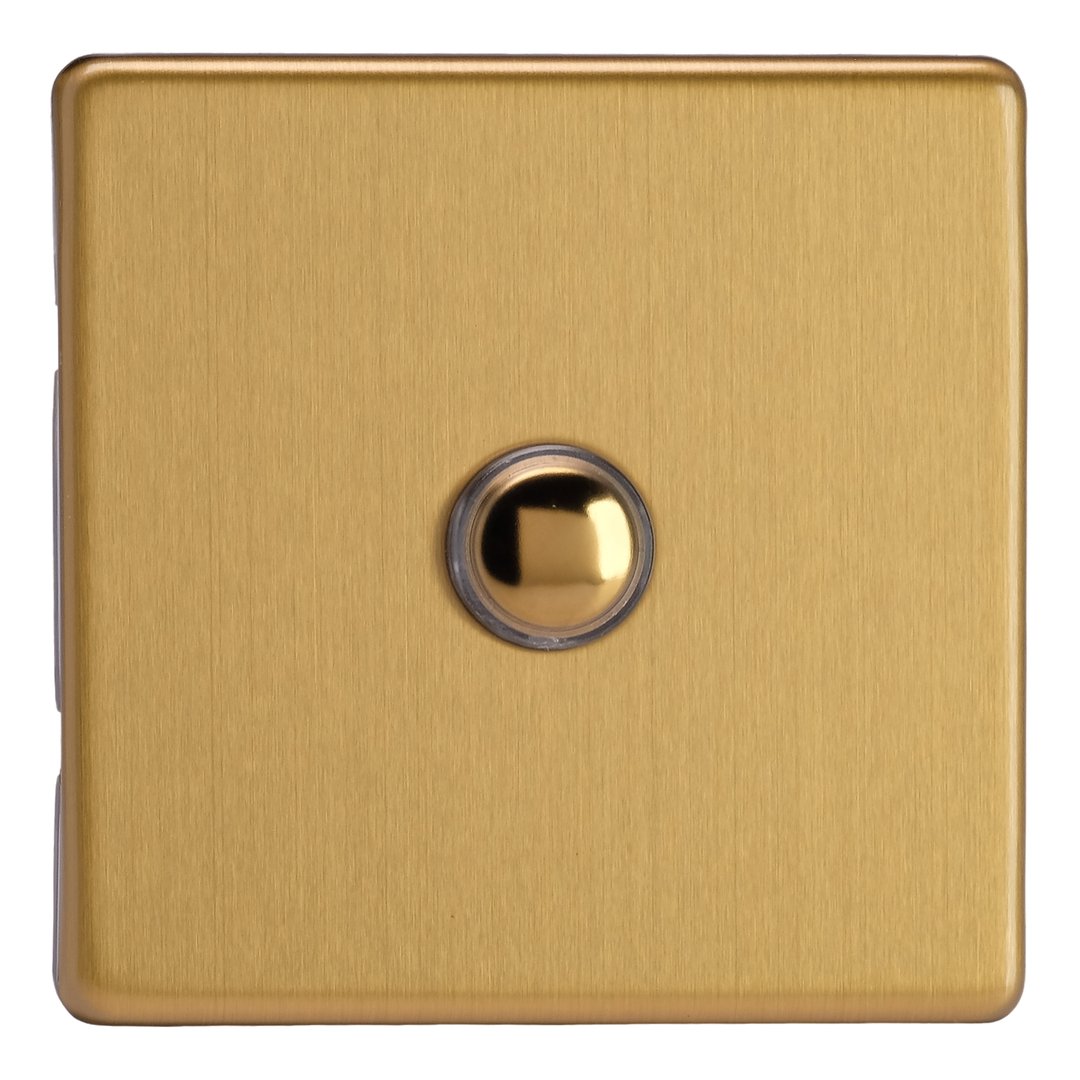

Product Description: 1-Gang 6A 1- or 2-Way Push On/Off Impulse Switch
Range: European
Finish: Brushed Brass
Product Category: Impulse Switches
Insert/Knob Colour: Polished Brass Button
Barcode: 5021575762068
Dimensions: 86x86x23mm
Faceplate Depth: 4mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 6A
Maximum Current Rating: 6A
Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way push on/off switching
Stylistically matches V-Pro IR dimmers
Suitable for controlling both mains and low voltage lighting
Sleek, low-profile faceplate

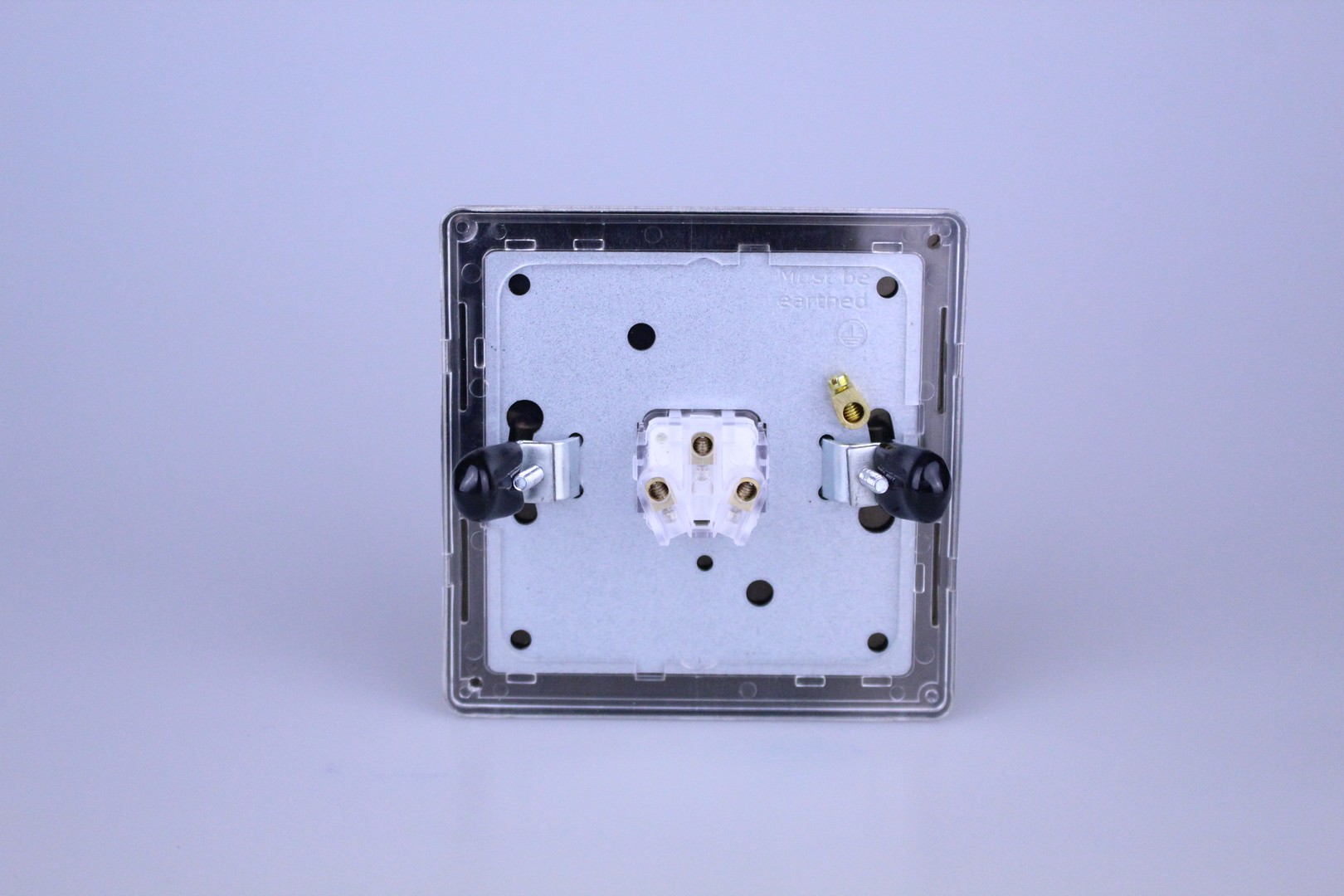

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
