Data Sheet
Product Code: XES44FG
This product is made to order

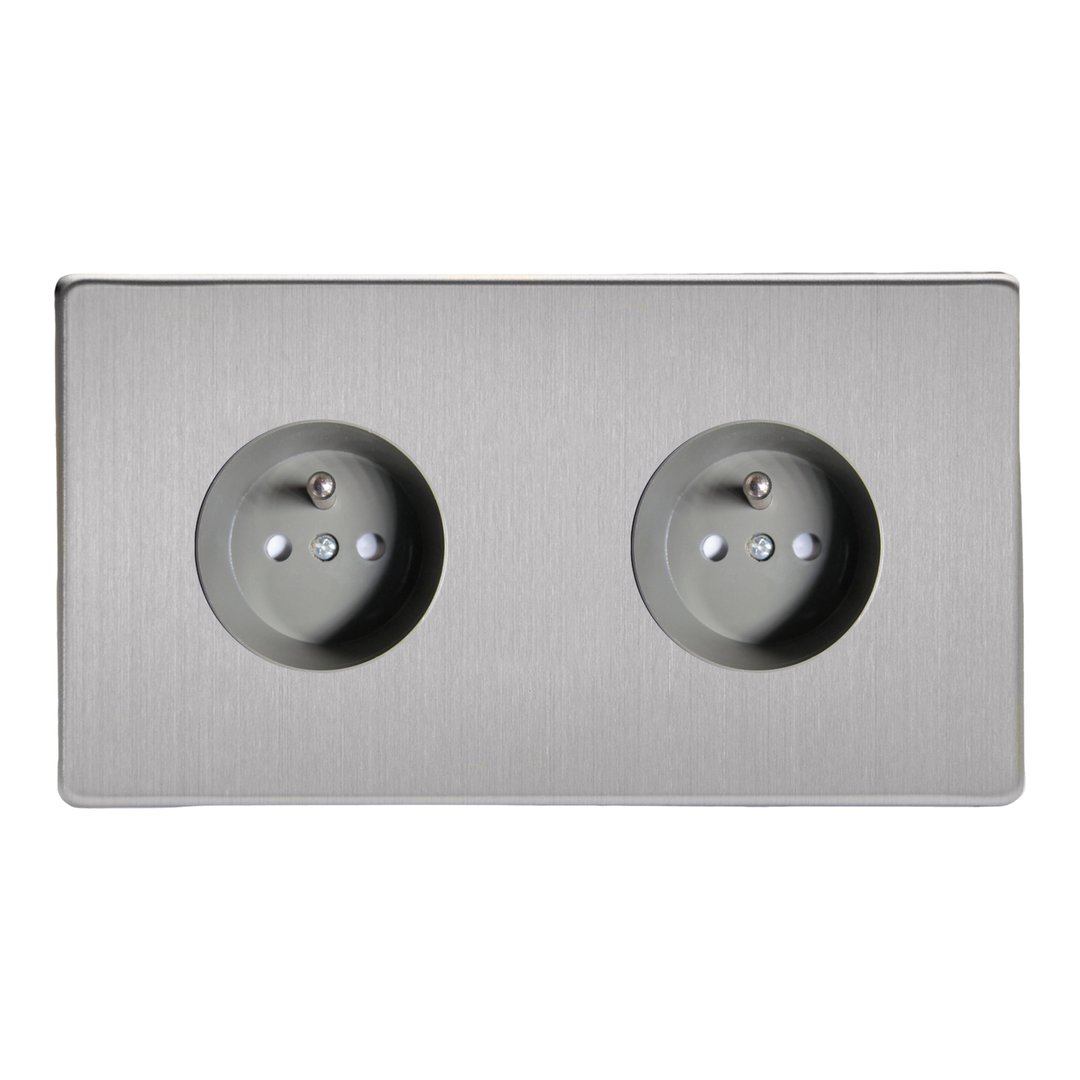

Product Description: 2-Gang 16A Flush Socket with Pin Earth
Range: European
Finish: Brushed Steel
Product Category: 16A Sockets
Insert/Knob Colour: Grey Insert
Barcode: 5021575482485
Dimensions: 86x158x41mm
Faceplate Depth: 4mm
Net Weight: 170g
Gross Weight: 172g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Terminal (Neutral) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Terminal (Earth) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Only use solid cable with push fit terminals..
Applicable Safety Standard: PN-IEC60884-1 + IEC-60884-1
Commodity Code: 85366990
Product Features
CEE 7/5 sockets with symmetric AC connectors
Centred earth pin ensures that earth is engaged before live contact is made
Can accept CEE 7/6, 7/7 and 7/17 plugs and Europlugs
Sleek, low-profile faceplate

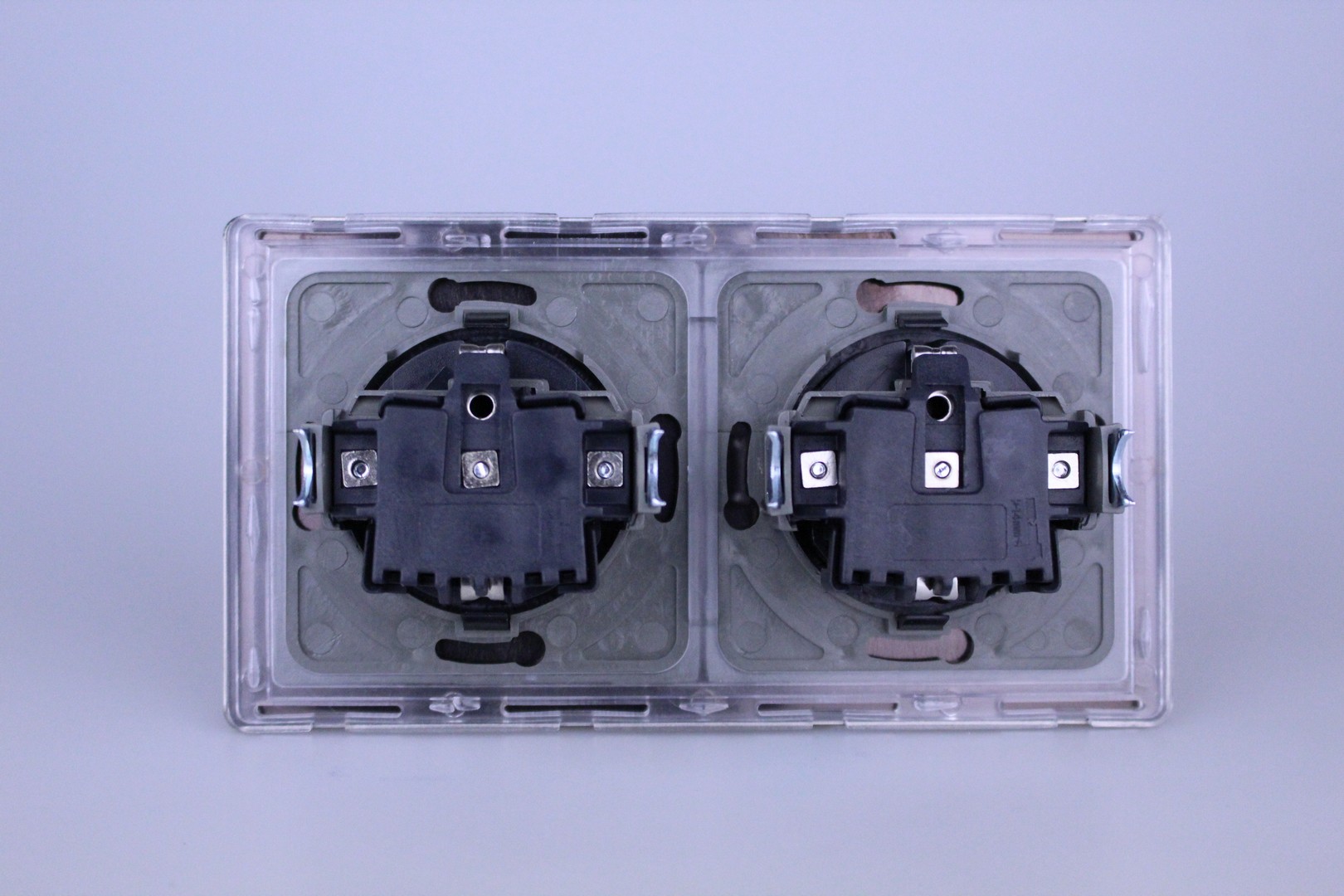

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
18th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
