Data Sheet
Product Code: XEVD2S

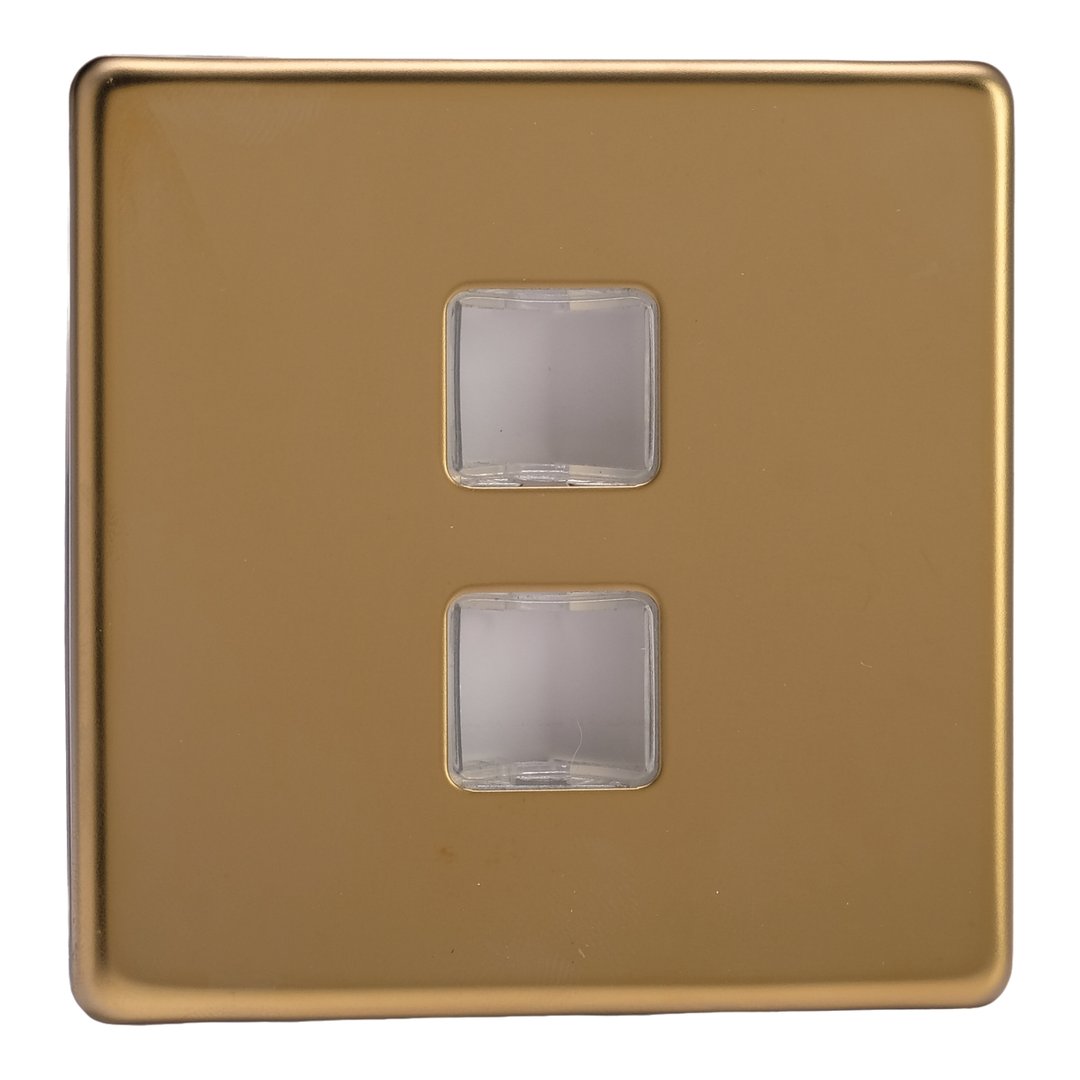

Product Description: 2-Gang EuroData Grid Plate (Keystone Data)
Range: European
Finish: Polished Brass
Product Category: EuroData Plates
Barcode: 5021575294835
Dimensions: 86x86x23mm
Faceplate Depth: 4mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: 25mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Clip in any combination of EuroData modules
Create your own data combinations
Sleek, low-profile screwless faceplate
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
