Data Sheet
Product Code: XEVT1S

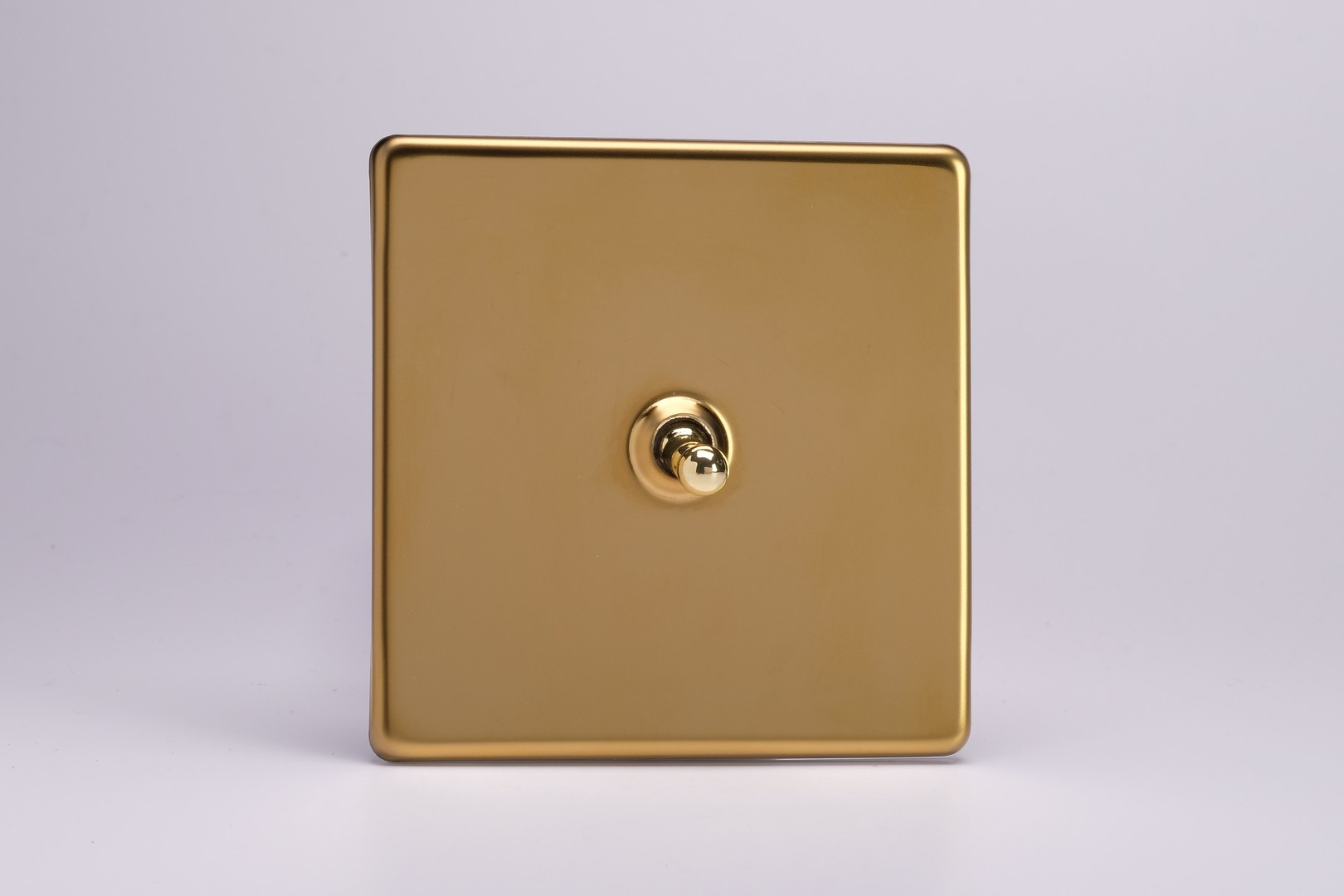

Product Description: 1-Gang 10A 1- or 2-Way Toggle Switch
Range: European
Finish: Polished Brass
Product Category: Toggle Switches
Insert/Knob Colour: Polished Brass Toggle
Barcode: 5021575491913
Dimensions: 86x86x40mm
Faceplate Depth: 4mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Sleek, low-profile faceplate
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
30th January 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
