Data Sheet
Product Code: XEY2S.AC

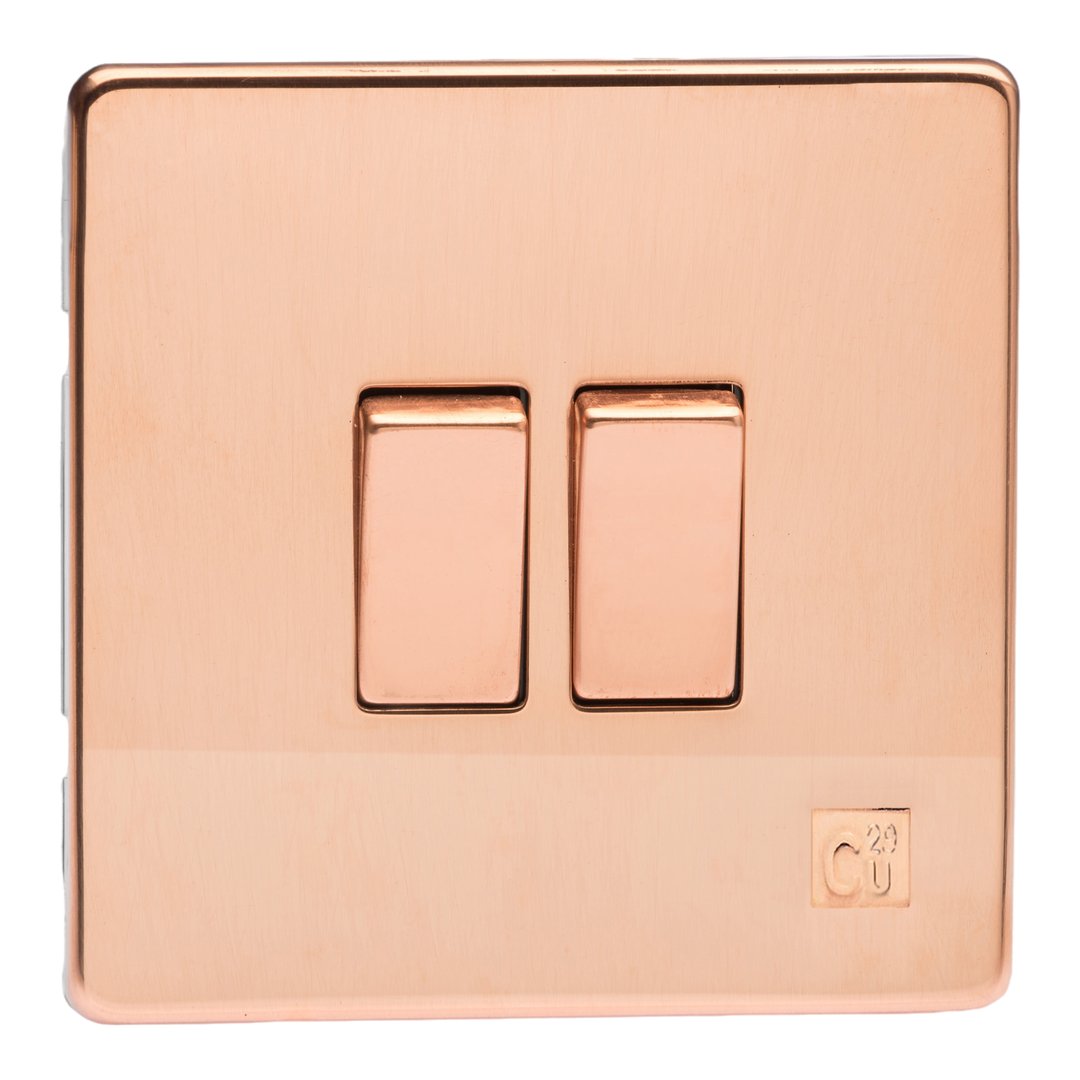

Product Description: 2-Gang 10A 1- or 2-Way Rocker Switch
Range: European
Finish: CU29 Raw Copper
Product Category: Rocker Switches
Insert/Knob Colour: Raw Copper Rockers
Barcode: 5021575018820
Dimensions: 86x86x24mm
Faceplate Depth: 4mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: Standard European 40mm Round or Square
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Sleek, low-profile faceplate
Raw copper achieves 99.9% reduction in bacteria within 2 hours of exposure

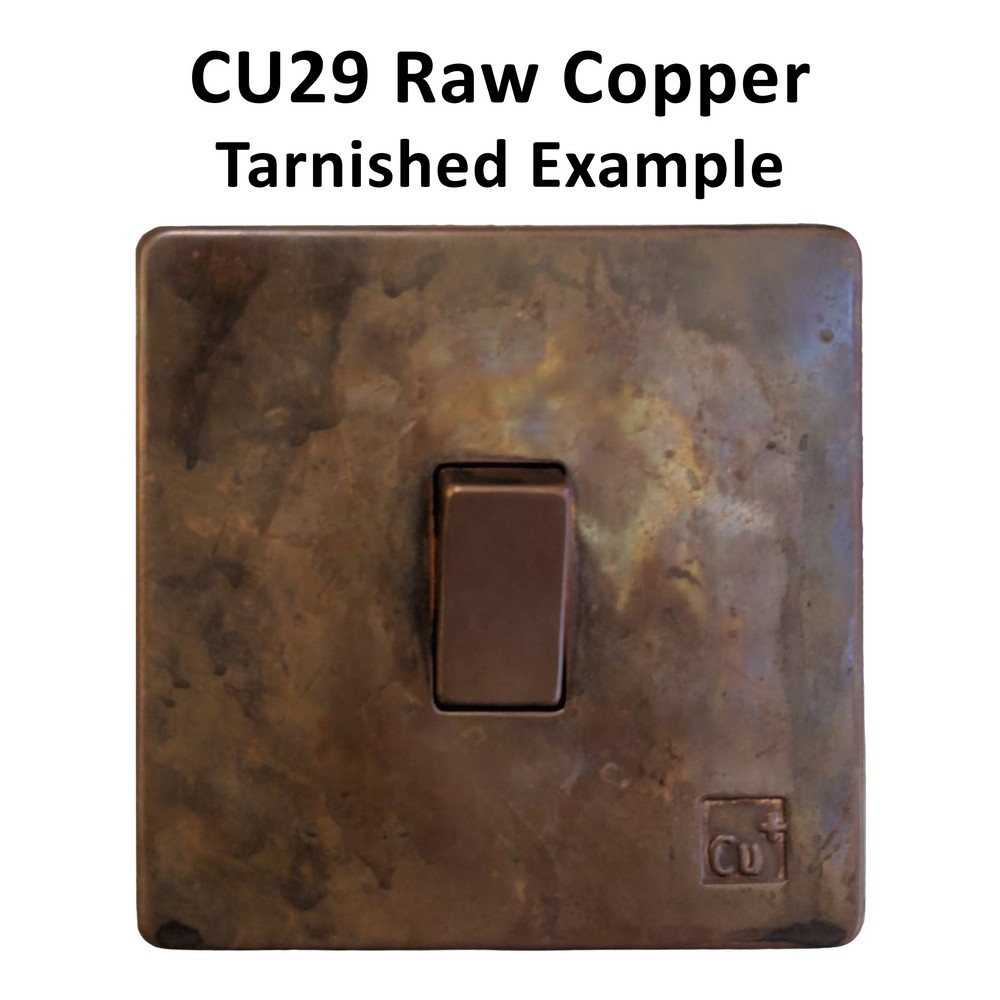

Works alongside routine cleaning and sanitisation procedures to reduce the spread of infection. To remain effective the surface must not be coated in any Way. Without regular cleaning this product will tarnish and acquire a warm patina with age, similar to the image below.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
18th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
