Data Sheet

Product Code: XEY4FB.BZ

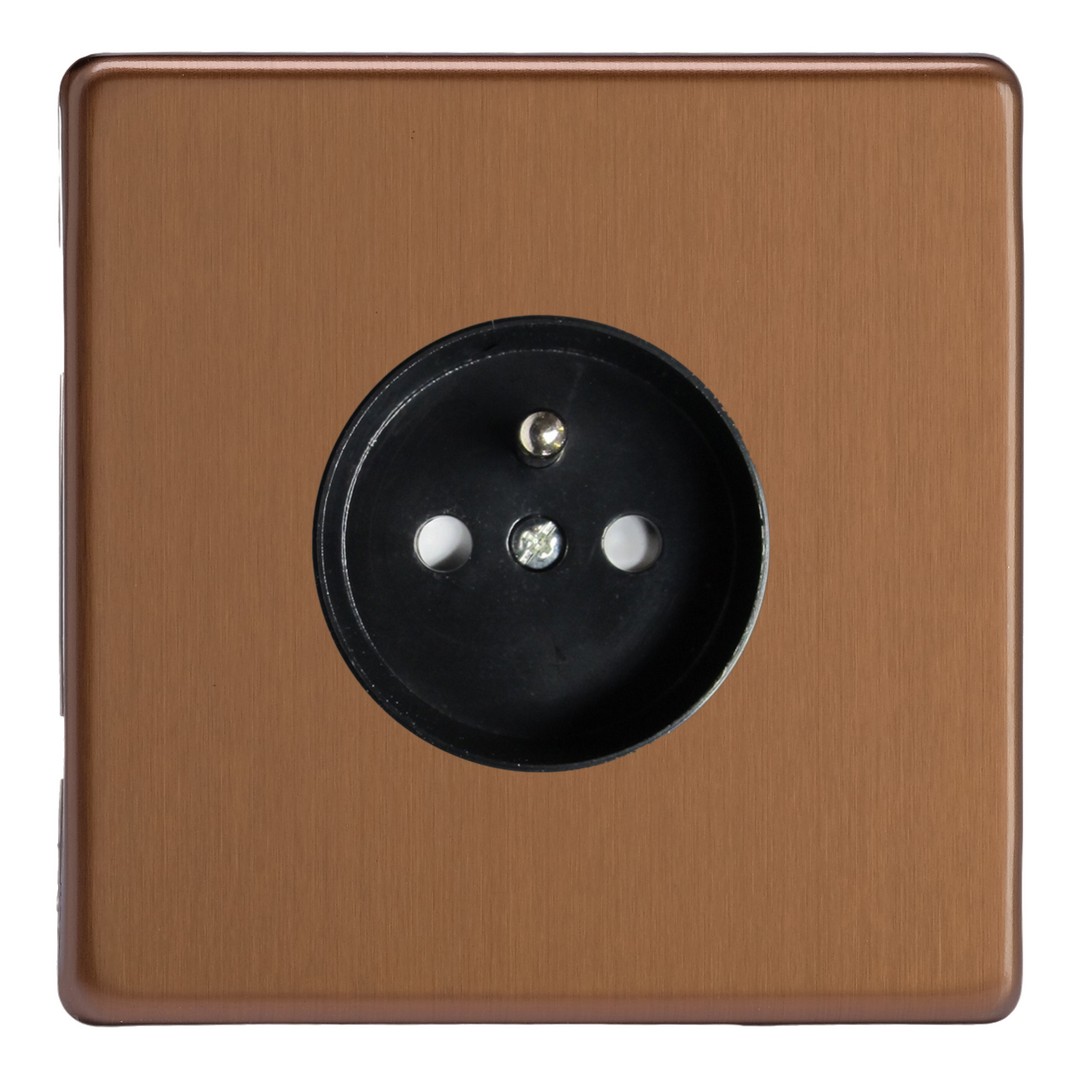

Product Description: 1-Gang 16A Flush Socket with Pin Earth

Range: European

Finish: Brushed Bronze

Product Category: 16A Sockets

Insert/Knob Colour: Black Insert

Barcode: 5021575023657

Dimensions: 86x86x41mm

Faceplate Depth: 4mm

Net Weight: 86g

Gross Weight: 88g

Fixing Centres: 60.3mm

Depth from Mounting Face: 18.1mm

Recommended Back Box Depth: Standard European 40mm Round or Square

Operating Voltage: 230v 50Hz

Maximum Load Rating: 16A

Maximum Current Rating: 16A

Terminal (Live) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each

Terminal (Neutral) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each

Terminal (Earth) Diameter: Push fit; Capacity: 2 terminals - 1 x 2.5mm² each

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Only use solid cable with push fit terminals..

Applicable Safety Standard: PN-IEC60884-1 + IEC-60884-1

Commodity Code: 85366990

Declaration of Conformity

Product Features

  CEE 7/5 (French pin earth) socket with symmetric connectors

  Centred earth pin making contact before the live pins ensures safety

  Takes CEE 7/6, 7/7 and 7/17 plugs and Europlugs

  16A rated

  Screwless low profile faceplate, just 4mm deep with no visible fixings, for standard 40mm round or square European wall boxes

European Collection
Everything you love about Screwless Low Profile, made for Europe. The European range brings VARILIGHT's decorative finishes to continental homes, with slim clip-on faceplates and hidden fixings that fit standard round European wall boxes. Choose from switches, dimmers and Schuko or French sockets in the finish that suits your space.

Brushed Bronze Finish
Offering a contemporary take on a classical finish, and paired with black inserts, Brushed Bronze suits both traditional and modern spaces.
