Data sheet: XFB6FOND
Data sheet

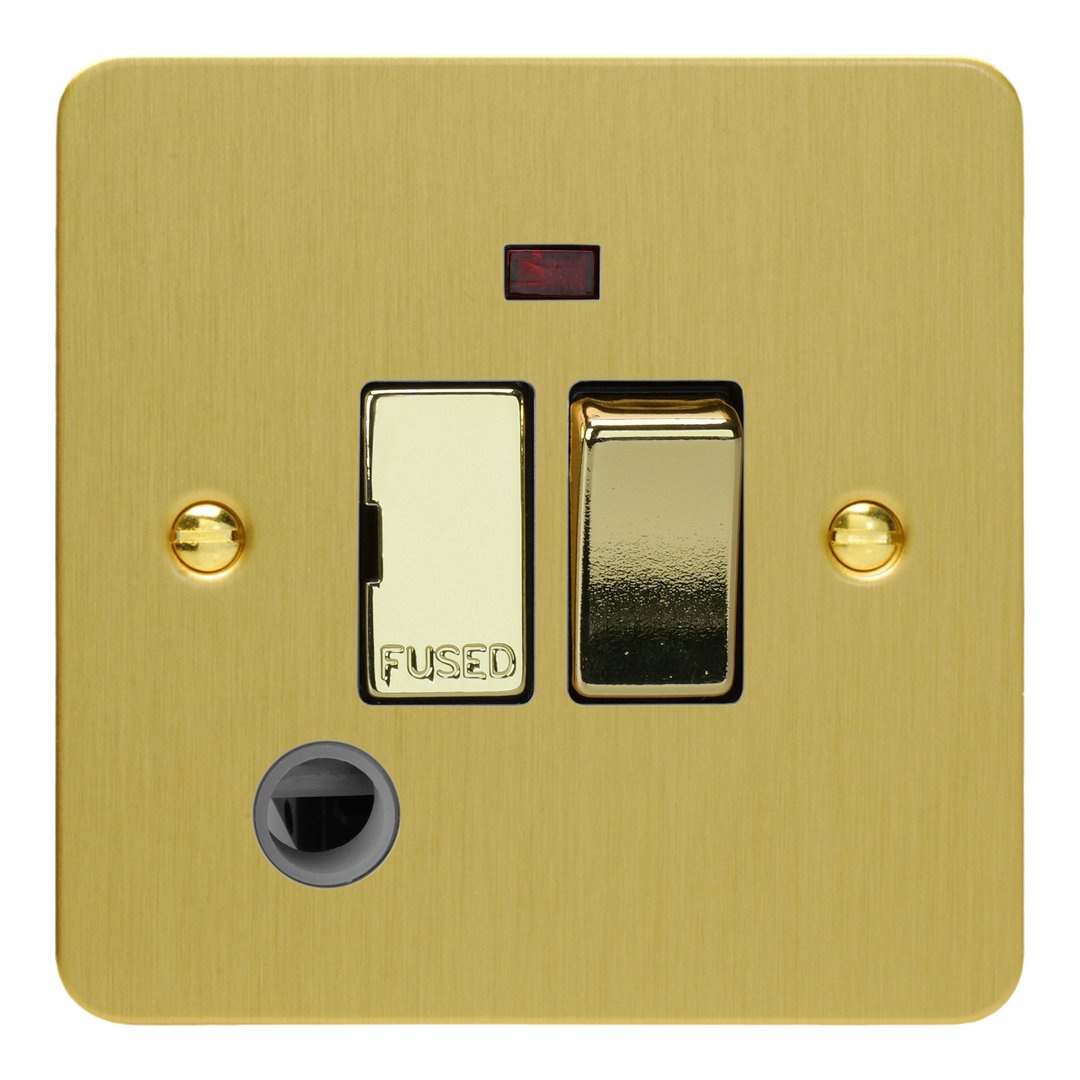

XFB6FOND 13A Switched Fused Spur with Neon with Flex Outlet
Fused Spur with Flex Outlet & Neon Indicator
Product features
- Double pole switching isolates live and neutral for added safety
- Neon indicator shows at a glance when it's on
- Cable clamp keeps the flex secure
- Takes a standard 25.4x6.4mm fuse
- Easily replaceable 13A fuse included
- Ultra-slim stainless steel faceplate, just 1mm deep with brass screws, fits a 25mm back box
Product
- Product code
- XFB6FOND
- Category
- Fused Spur Connection Units
- Range
- Ultraflat
- Finish
- Brushed Brass
- Insert / knob colour
- Brushed Brass Insert
- Barcode
- 5021575038767
Size and fitting
- Dimensions
- 89x89x33mm
- Faceplate depth
- 1mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 24.3mm
- Recommended back box depth
- 25mm
- Net weight
- 176g
- Gross weight
- 178g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 13A
- Maximum current rating
- 13A
- Terminal (Live)
- 4.5mm, capacity 4 x 2.5mm²
- Terminal (Neutral)
- 4.5mm, capacity 4 x 2.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 1363-4
- Commodity code
- 85389091
Ultraflat collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.
Brushed Brass finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
