Double Blank Plate, Ultraflat Brushed Brass (XFBDB)

Data sheet

XFBDB Double Blank Plate

Range Ultraflat Finish Brushed Brass

Product features

Blanks off an unused wall box neatly
Double size, covers a standard double wall box
Blank off redundant switches and sockets neatly
Finished to match the rest of the range
Ultra-slim stainless steel faceplate, just 1mm deep with brass screws, fits a 16mm back box

Product

Product code: XFBDB
Category: Other Items
Range: Ultraflat
Finish: Brushed Brass
Barcode: 5021575900859

Size and fitting

Dimensions: 89x149x11mm
Faceplate depth: 1mm
Fixing centres: 120.6mm
Depth from mounting face: 0mm
Recommended back box depth: 16mm
Net weight: 200g
Gross weight: 202g

Electrical

Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Do not use masking tape on any decorative products, or install on damp plaster.

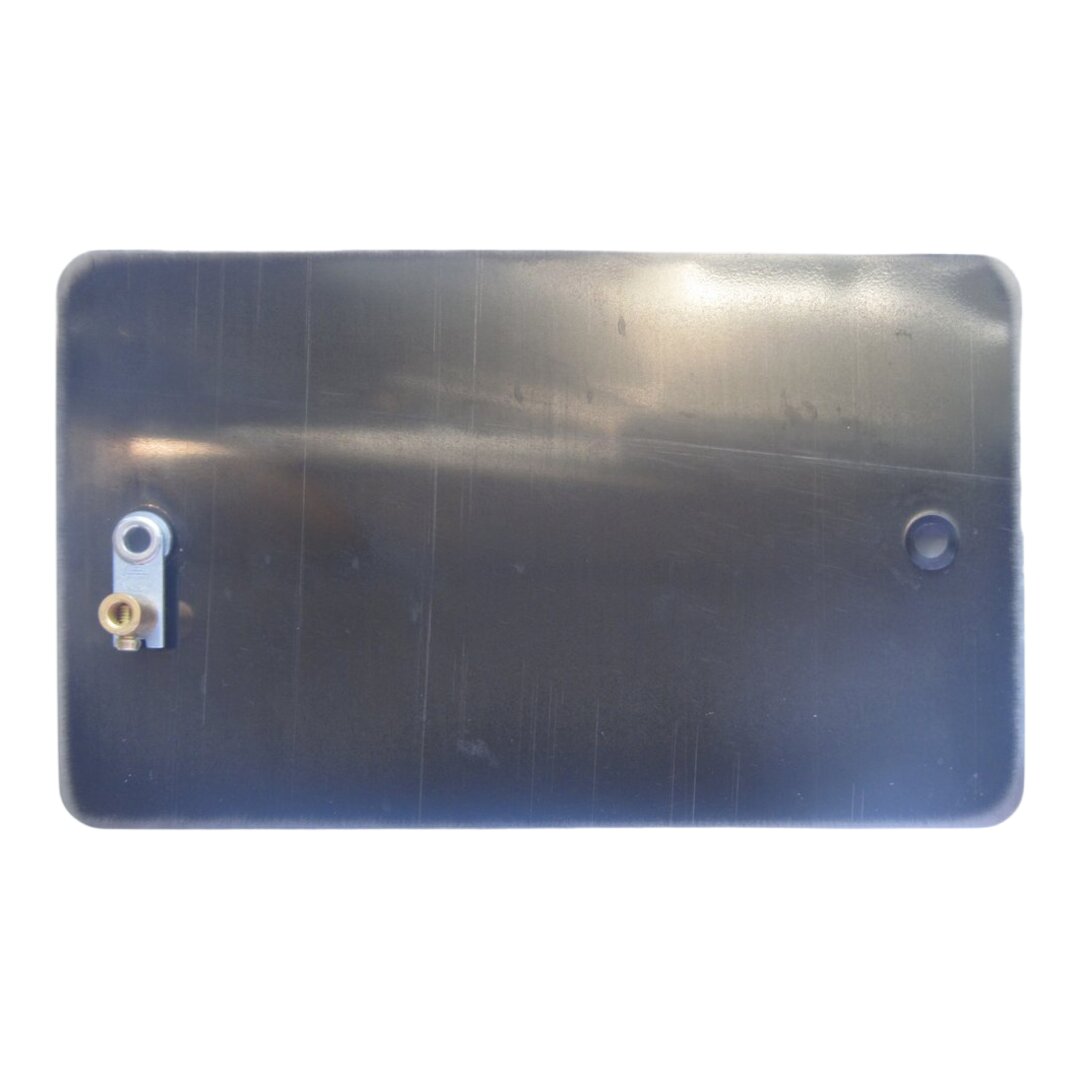

Safety advice: This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Product Must Be Earthed.
Applicable safety standard: BS EN 60669
Commodity code: 85381000

Declaration of Conformity

Ultraflat collection

The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.

Brushed Brass finish

The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
