Data sheet: XFBFIW
Data sheet

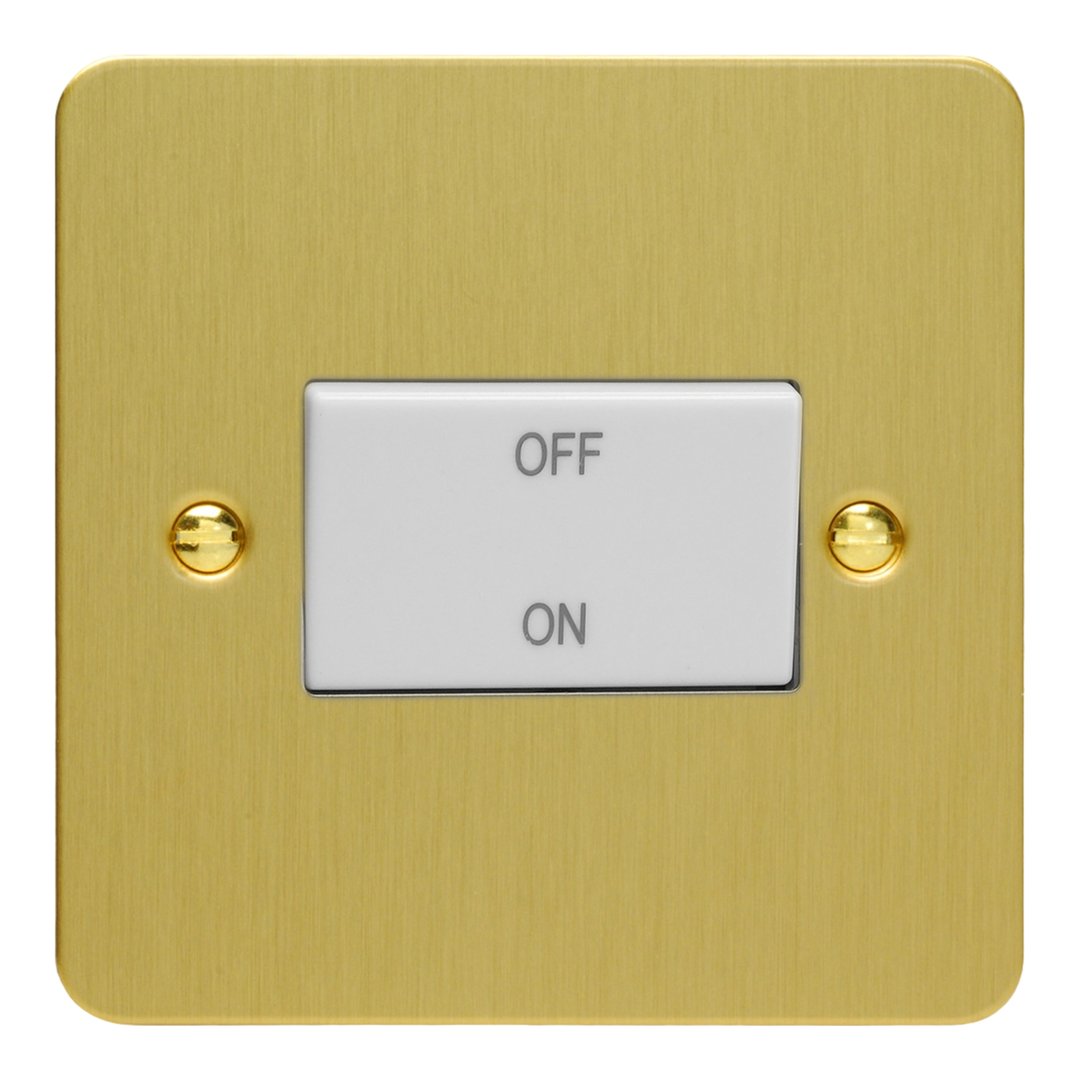

XFBFIW 10A Fan Isolating Switch (3 Pole)
Fan Isolator Switch
Product features
- Triple pole switching isolates live, neutral and switched live
- Wide rocker for easy operation
- Isolates live, neutral and switched live so the fan can be worked on safely
- Ideal for bathroom and kitchen extractor fans
- Ultra-slim stainless steel faceplate, just 1mm deep with brass screws, fits a 35mm back box
Product
- Product code
- XFBFIW
- Category
- Rocker Switches
- Range
- Ultraflat
- Finish
- Brushed Brass
- Insert / knob colour
- White Rocker
- Barcode
- 5021575900101
Size and fitting
- Dimensions
- 89x89x23mm
- Faceplate depth
- 1mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 17.3mm
- Recommended back box depth
- 35mm
- Net weight
- 146g
- Gross weight
- 148g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 10A
- Maximum current rating
- 10A
- Terminal (Live)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85365007
Ultraflat collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.
Brushed Brass finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
