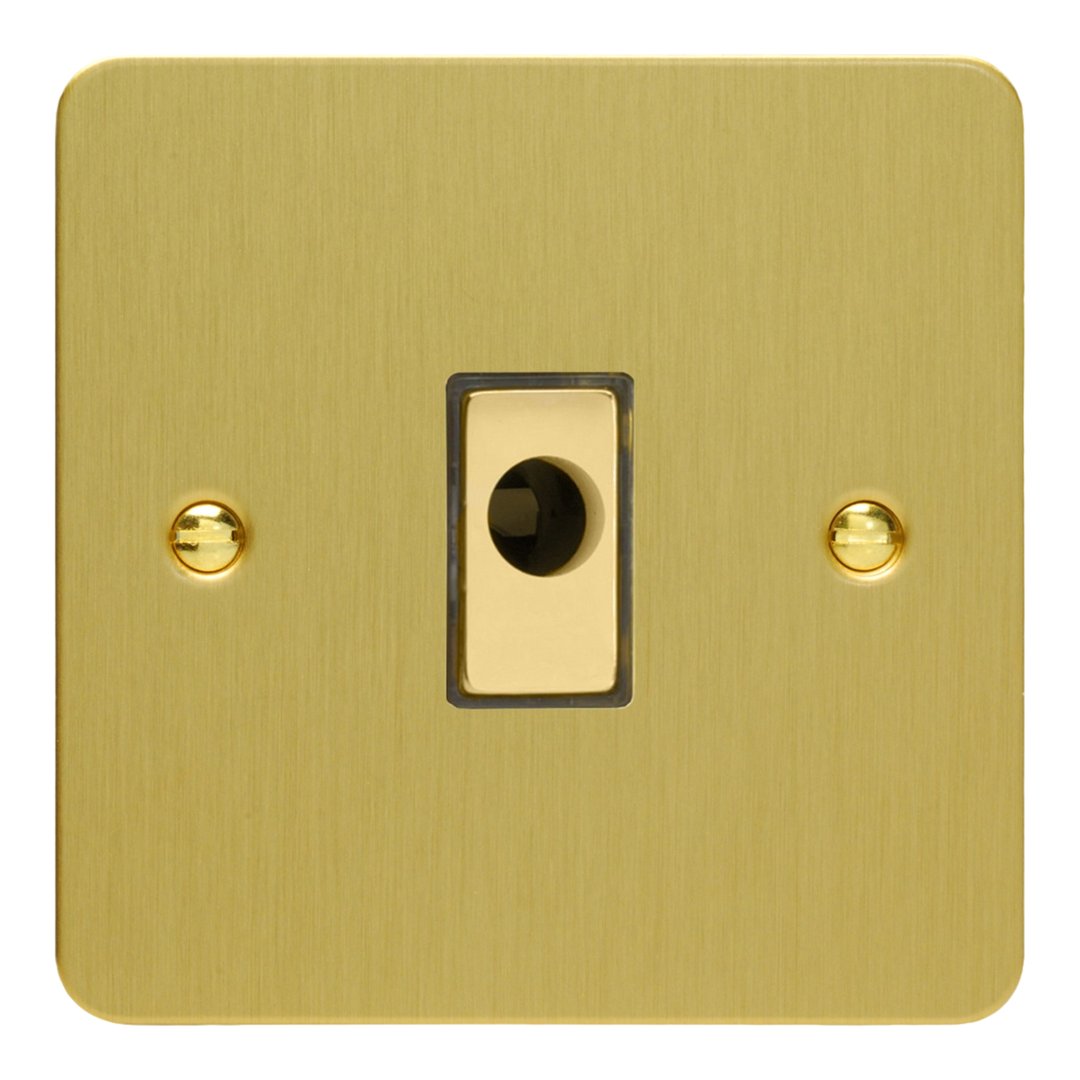

Product Description: 16A Flex Outlet Plate
Finish: Brushed Brass
Product Category: Flex Outlet
Insert/Knob Colour: Brass Insert
Faceplate Depth: 1mm
Product Weight: 110g
Fixing Centres: 60.3mm
Depth from Mounting Face: 32mm
Recommended Back Box Depth: 25mm
Operating Voltage: N/A
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85369085
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 07th August 2020 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
