Click below to print the data sheet for XSFOB
Further information:
Data Sheet
Product Code: XSFOB
Product Description: 16A Flex Outlet Plate
Range: Classic
Finish: Matt Chrome
Product Category: Other Items
Insert/Knob Colour: Black Insert
Barcode: 5021575831092

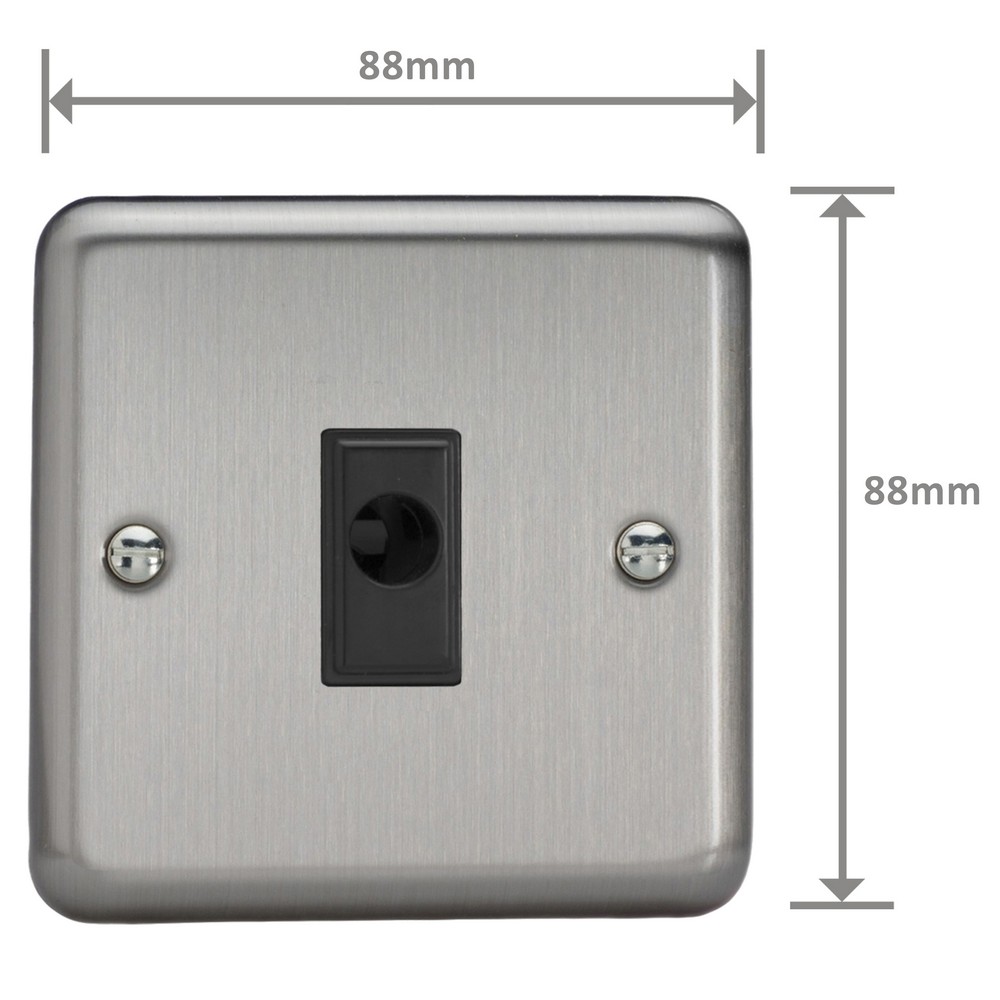

Dimensions: 88x88x34mm
Faceplate Depth: 7mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.8mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Can be used in a number of different environments for many applications
Cable clamp
Curved edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
