Data sheet: XFCBR1D

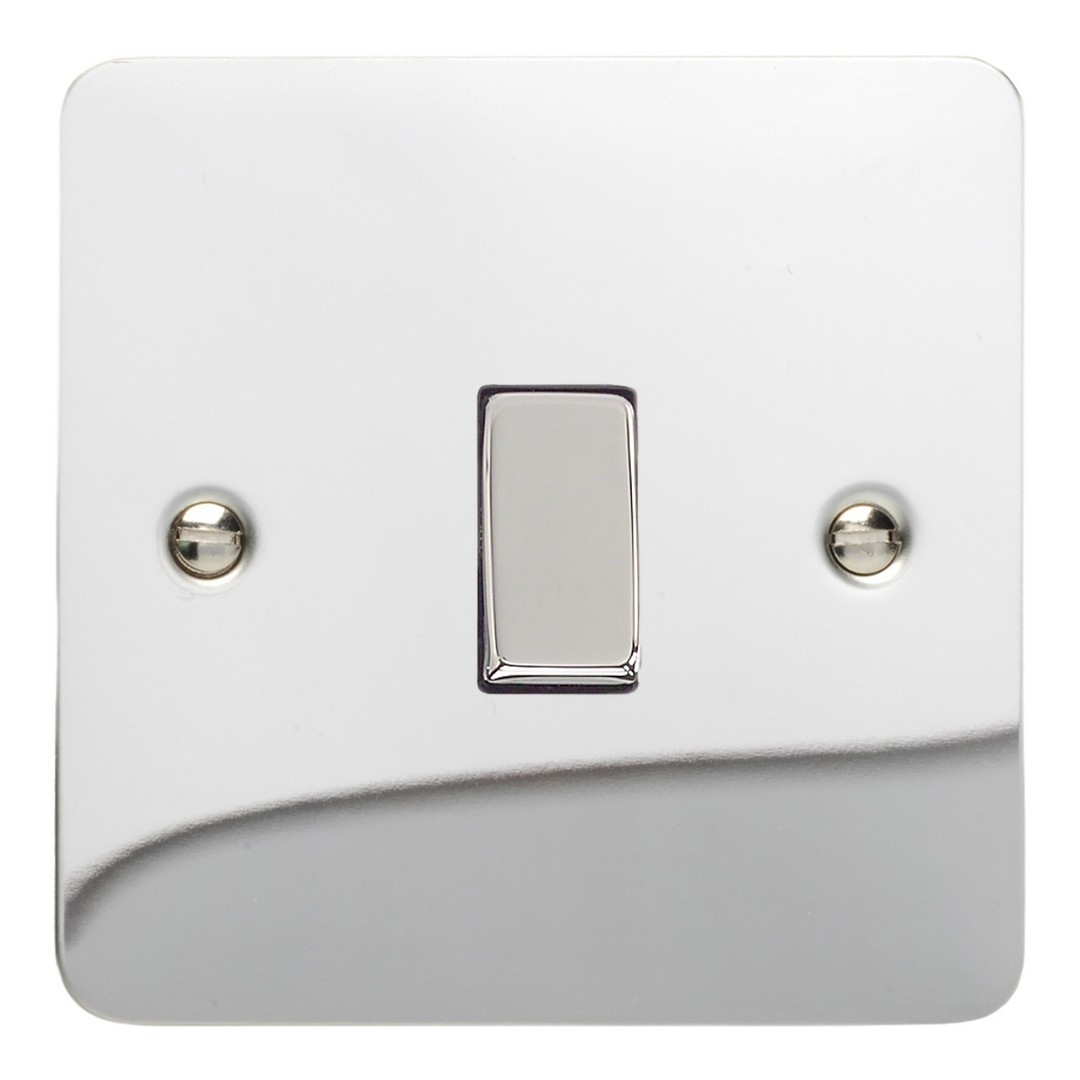

1-Gang 10A Retractive Switch, Ultraflat Polished Chrome (XFCBR1D)

Data sheet

XFCBR1D 1-Gang 10A Retractive Switch

Range Ultraflat Finish Polished Chrome

Product features

Retractive push to make switch that springs back when released
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.
10A rated
Ultra-slim stainless steel faceplate, just 1mm deep with chrome screws, fits a 25mm back box

Product

Product code: XFCBR1D
Category: Rocker Switches
Range: Ultraflat
Finish: Polished Chrome
Insert / knob colour: Chrome
Barcode: 5021575020854

Size and fitting

Dimensions: 89x89x25mm
Faceplate depth: 1mm
Fixing centres: 60.3mm
Depth from mounting face: 20mm
Recommended back box depth: 25mm
Net weight: 96g
Gross weight: 98g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Ultraflat collection

The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.

Polished Chrome finish

Polished Chrome brings a bright, clean finish to any room. Choose from black or white inserts, supplied with matching polished chrome rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
