Data sheet: XG6UFOD

Data sheet

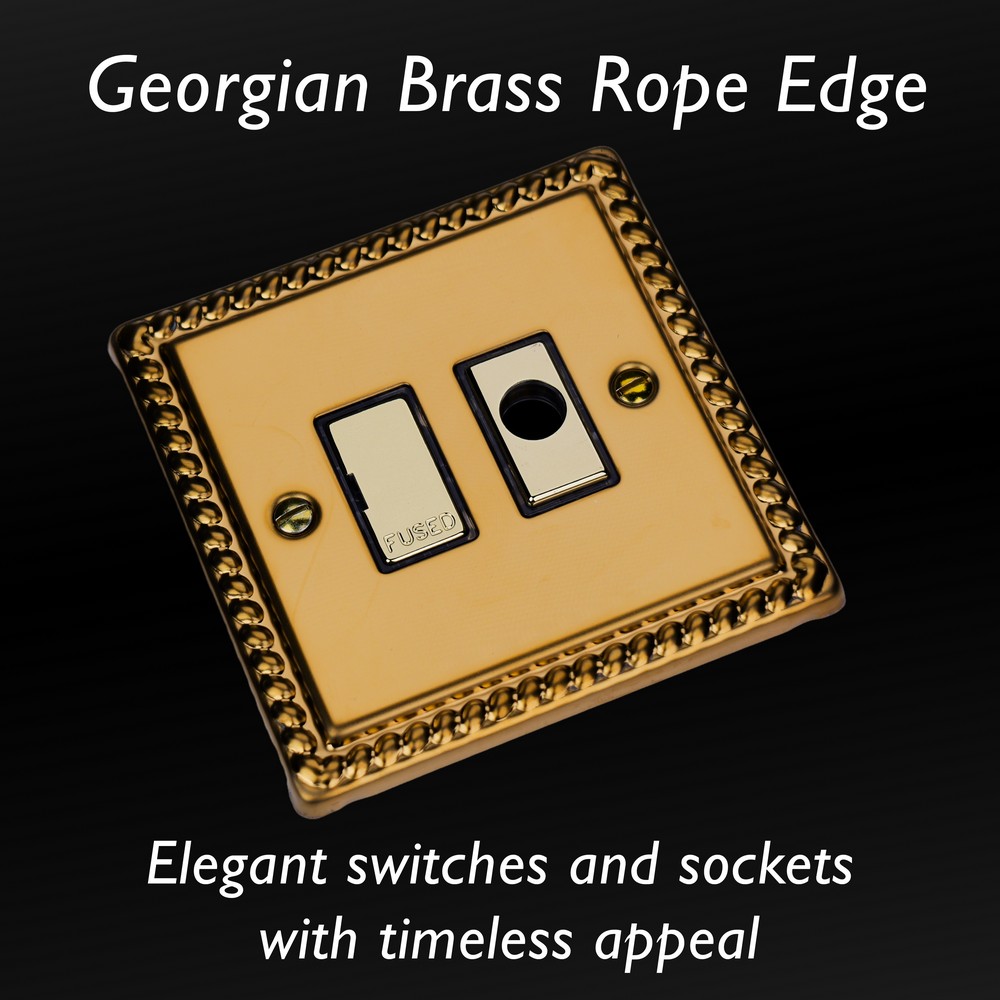

XG6UFOD 13A Unswitched Fused Spur with Flex Outlet

Product features

  • Cable clamp keeps the flex secure
  • Takes a standard 25.4x6.4mm fuse
  • Easily replaceable 13A fuse included
  • Unswitched, for appliances that should never be switched off by mistake
  • Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box

Product

Product code
XG6UFOD
Category
Fused Spur Connection Units
Range
Classic
Finish
Georgian Brass
Insert / knob colour
Brass Insert
Barcode
5021575751666

Size and fitting

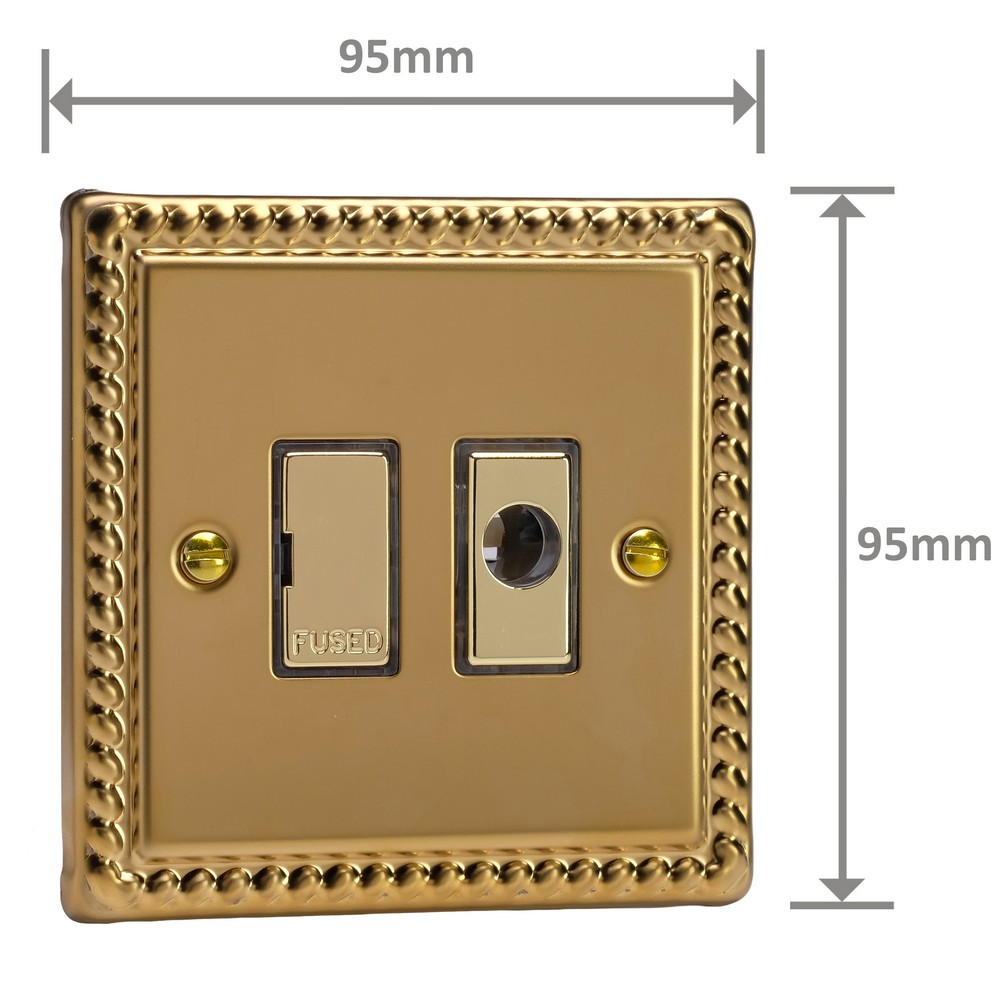

Dimensions
95x95x34mm
Faceplate depth
7mm
Fixing centres
60.3mm
Depth from mounting face
16.5mm
Recommended back box depth
25mm
Net weight
186g
Gross weight
188g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
Refer to Fuse Value
Maximum current rating
13A
Terminal (Live)
4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral)
4.5mm, capacity 4 x 2.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS 1363-4
Commodity code
85389091

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Georgian Brass finish

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
