Data Sheet
Product Code: XGG1
Product Description: DataGrid Plate (1 Grid Space)
Range: Classic
Finish: Georgian Brass
Product Category: DataGrid Faceplates
Insert/Knob Colour:
Barcode: 5021575751024

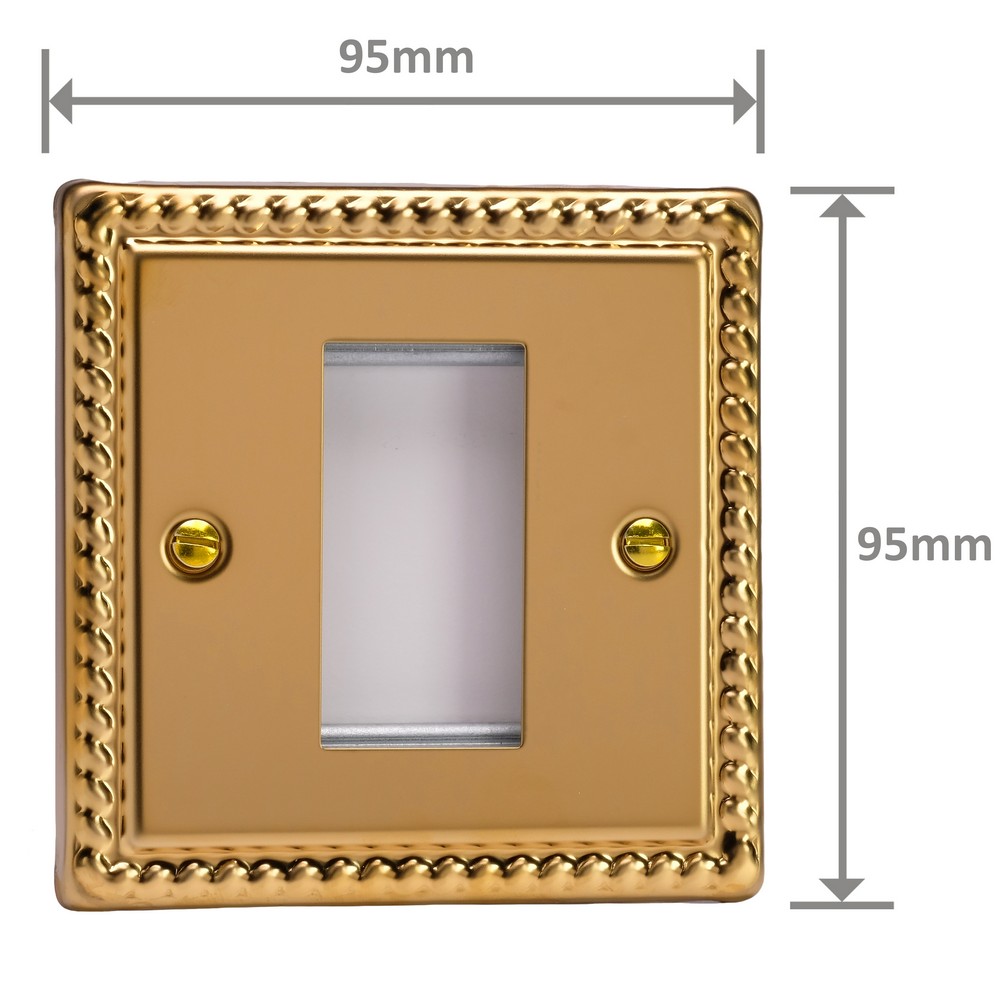

Dimensions: 95x95x9mm
Faceplate Depth: 7mm
Net Weight: 86g
Gross Weight: 88g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
Clip in any combination of DataGrid modules
Create your own data combinations
Roped edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Georgian Brass Finish

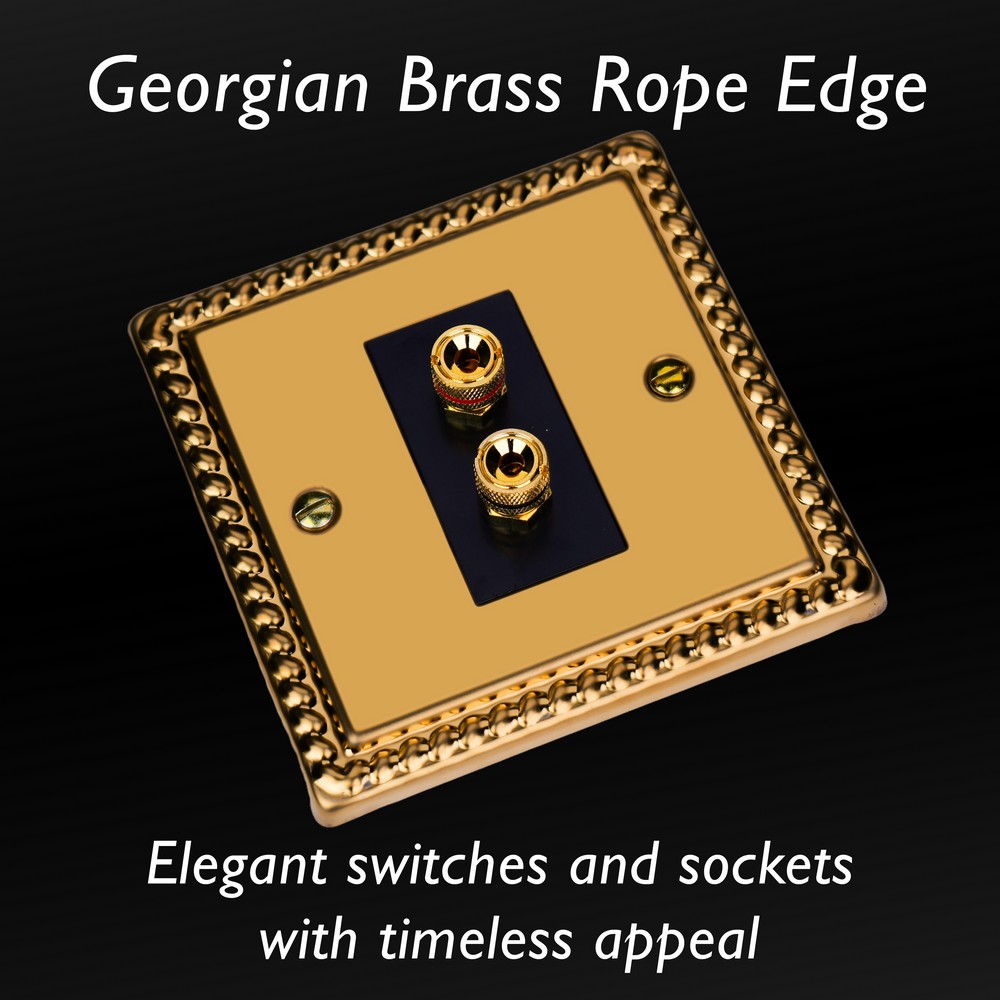

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 26th March 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
