Data Sheet
Product Code: XGG4
Product Description: DataGrid Twin Plate (4 Grid Spaces)
Range: Classic
Finish: Georgian Brass
Product Category: DataGrid Faceplates
Barcode: 5021575751048

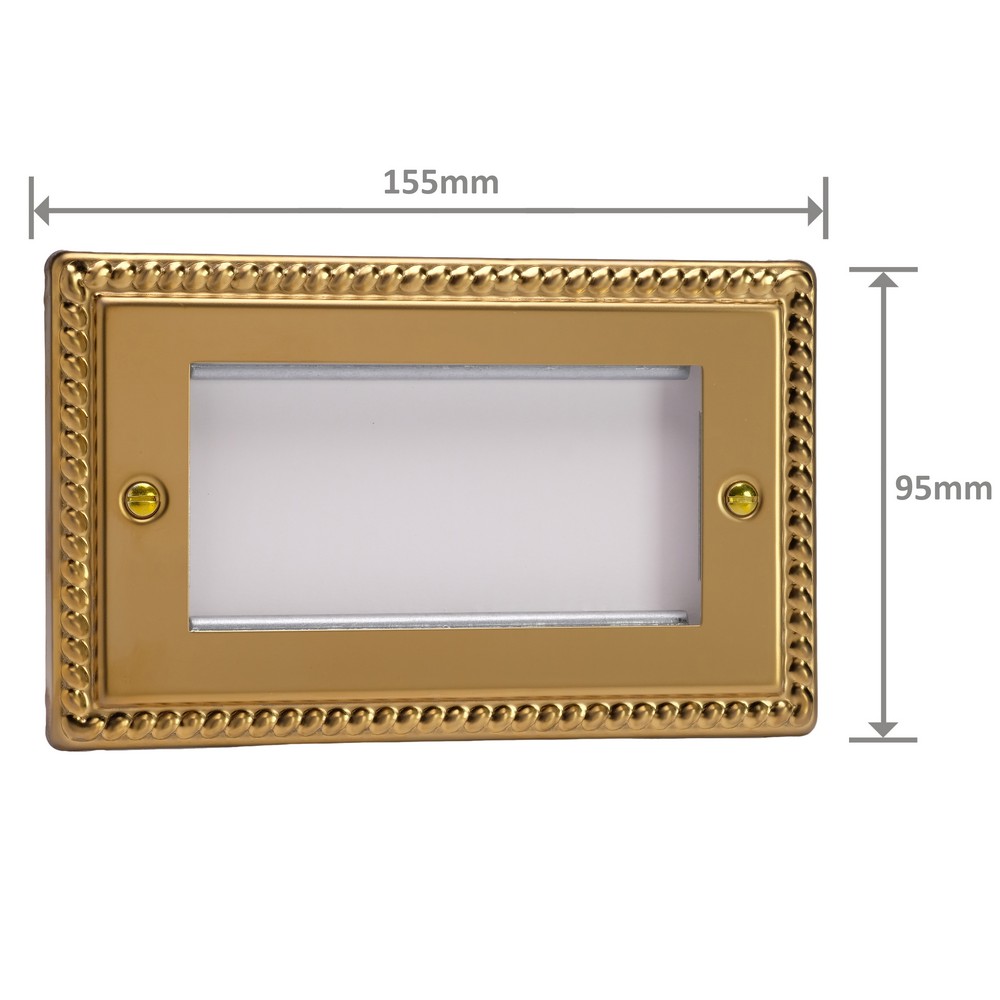

Dimensions: 95x155x9mm
Faceplate Depth: 7mm
Net Weight: 120g
Gross Weight: 122g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Clip in any mix of DataGrid modules: TV, satellite, network, phone, USB and more
Build the exact data combination the room needs
Over 70 DataGrid modules to choose from
Modules purchased separately
Bevel-edge faceplate, 7mm deep with brass screws
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
17th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
