Data Sheet
Product Code: XGT1
Product Description: 1-Gang 10A 1- or 2-Way Toggle Switch
10 YEAR GUARANTEE
BRITISH MADE
Range: Classic
Finish: Georgian Brass
Product Category: Toggle Switches
Insert/Knob Colour: Brass Toggle
Barcode: 5021575750959

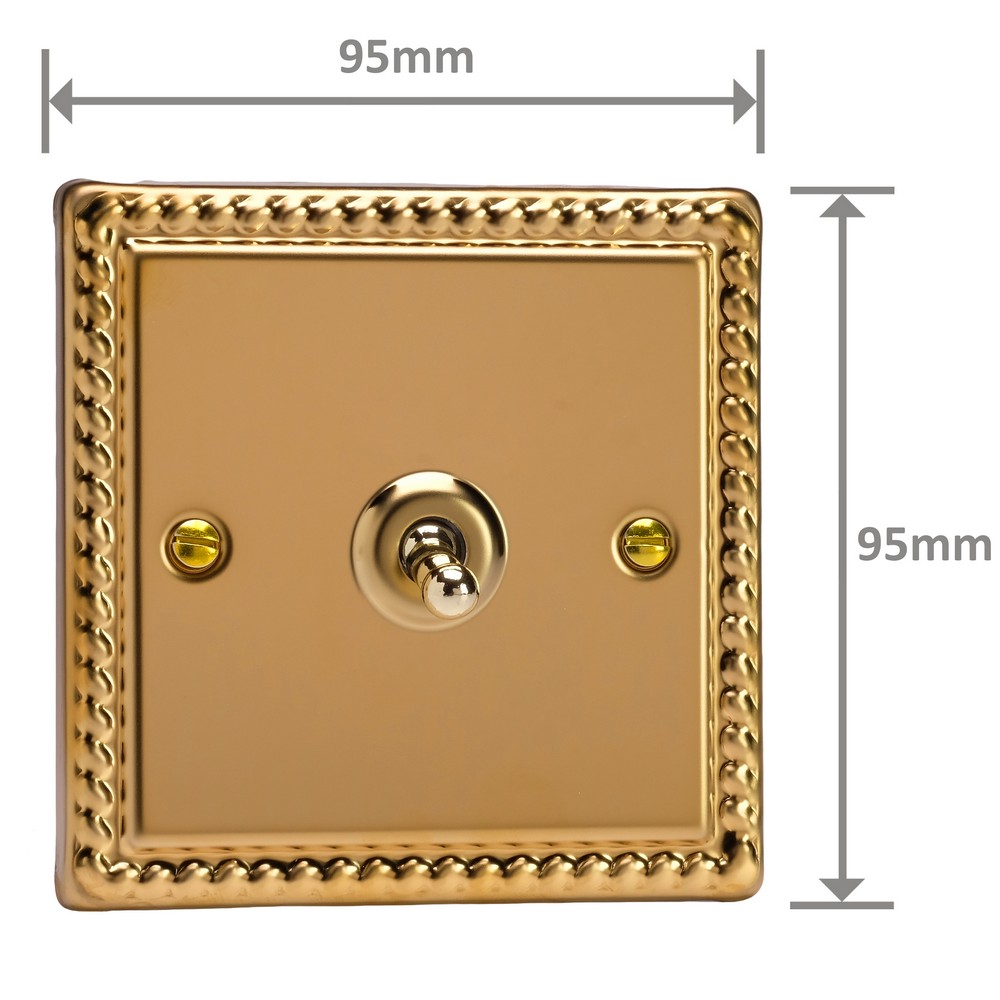

Dimensions: 95x95x36mm
Faceplate Depth: 7mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 11.2mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting

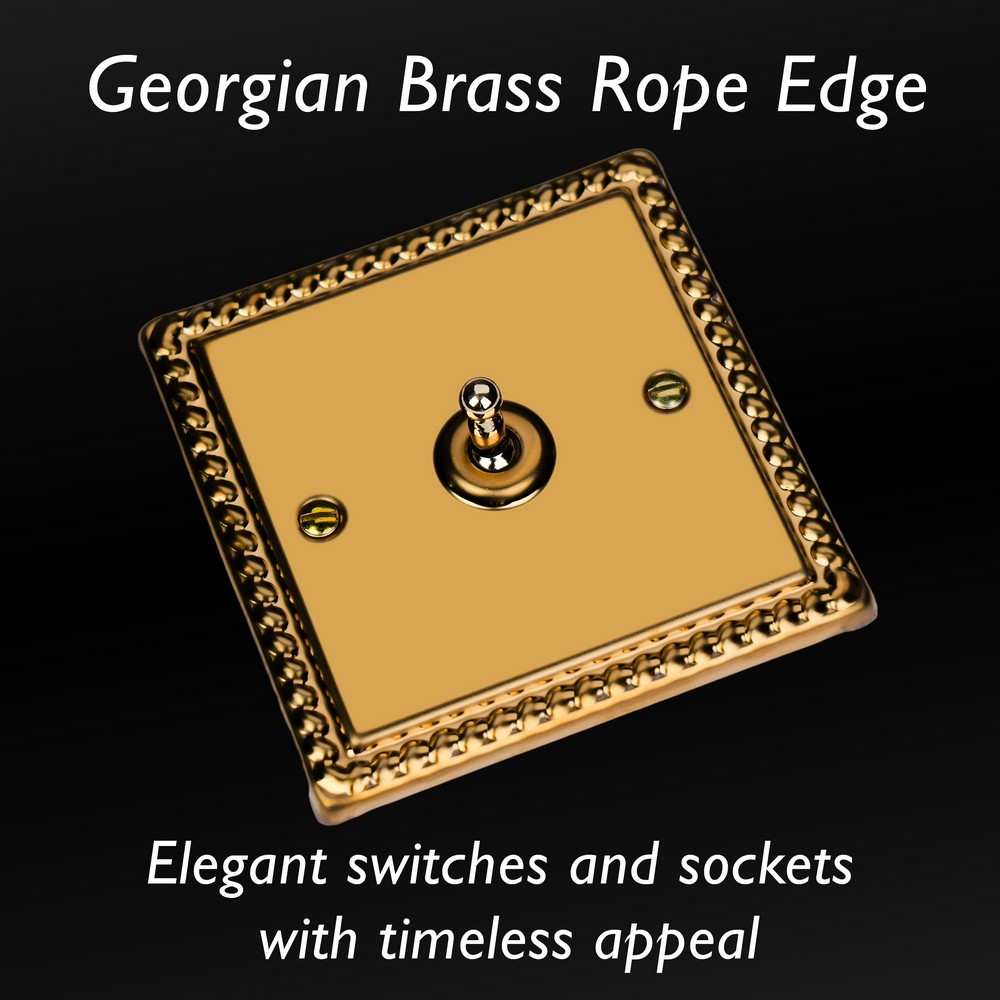

Roped edge faceplate
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Date of Issue: 28th April 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
