Data sheet: XK6UAW

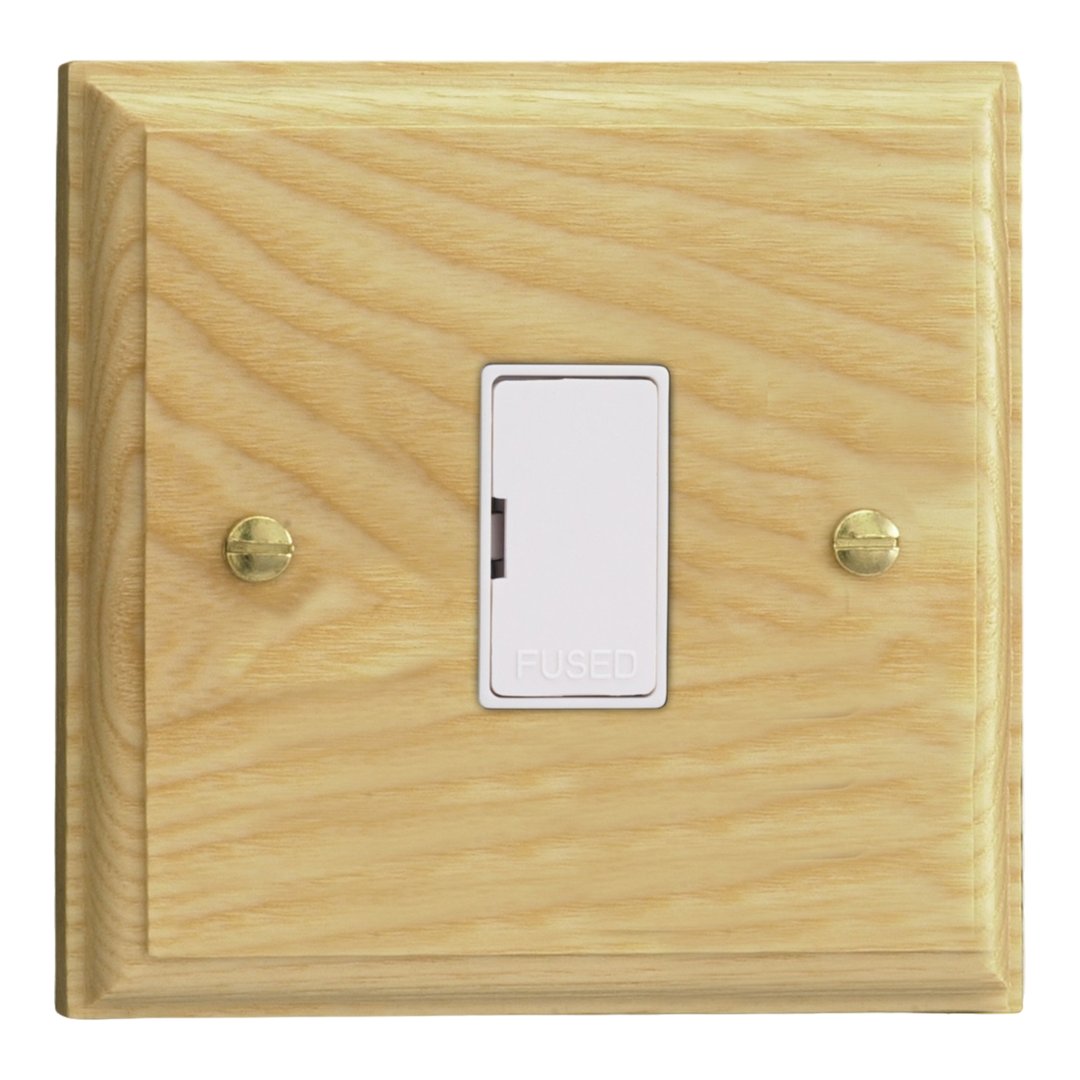

13A Unswitched Fused Spur, Kilnwood Ash (XK6UAW)

Data sheet

XK6UAW 13A Unswitched Fused Spur

Range Kilnwood Finish Ash

Product features

Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Unswitched, for appliances that should never be switched off by mistake
A neat, fused supply for boilers, extractor fans and towel rails
Solid timber faceplate, 15mm deep, fits a 25mm back box

Product

Product code: XK6UAW
Category: Fused Spur Connection Units
Range: Kilnwood
Finish: Ash
Insert / knob colour: White Insert
Barcode: 5021575971330

Size and fitting

Dimensions: 96x96x30mm
Faceplate depth: 15mm
Fixing centres: 60.3mm
Recommended back box depth: 25mm
Net weight: 116g
Gross weight: 118g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Refer to Fuse Value
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Kilnwood collection

The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Ash finish

The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
