Click below to print the data sheet for XOPGY4
Further information:
Data Sheet
Product Code: XOPGY4

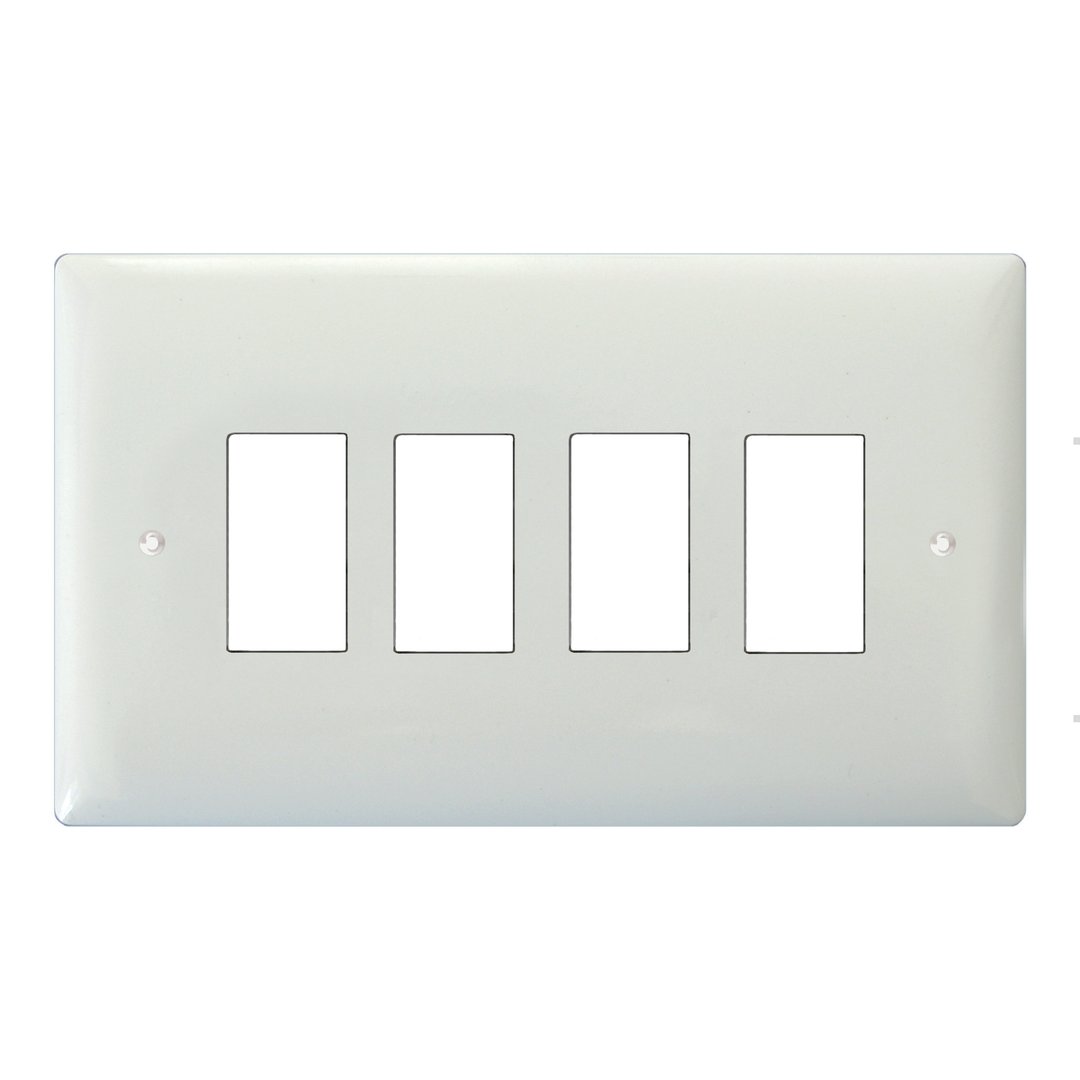

Product Description: 4-Gang Grid Plate and Grid Frame Pack (Twin Plate)
Range: Value
Finish: Polar White
Product Category: Grid Faceplates
Insert/Knob Colour:
Barcode: 5021575002522
Dimensions: 88x148x7mm
Faceplate Depth: 7mm
Net Weight: 59g
Gross Weight: 62g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Refer to Grid Modules
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Product Features
Design compliments with Value range
Create your own switch combinations
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Safety Advice: Product Must Be Earthed (via PowerGrid Frame).
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 19th June 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
