The product data sheet for G102SRW is shown below. Click here to print a copy.
Product Code: G102SRW
This Product is was previously referred to as Z2DG102SRW

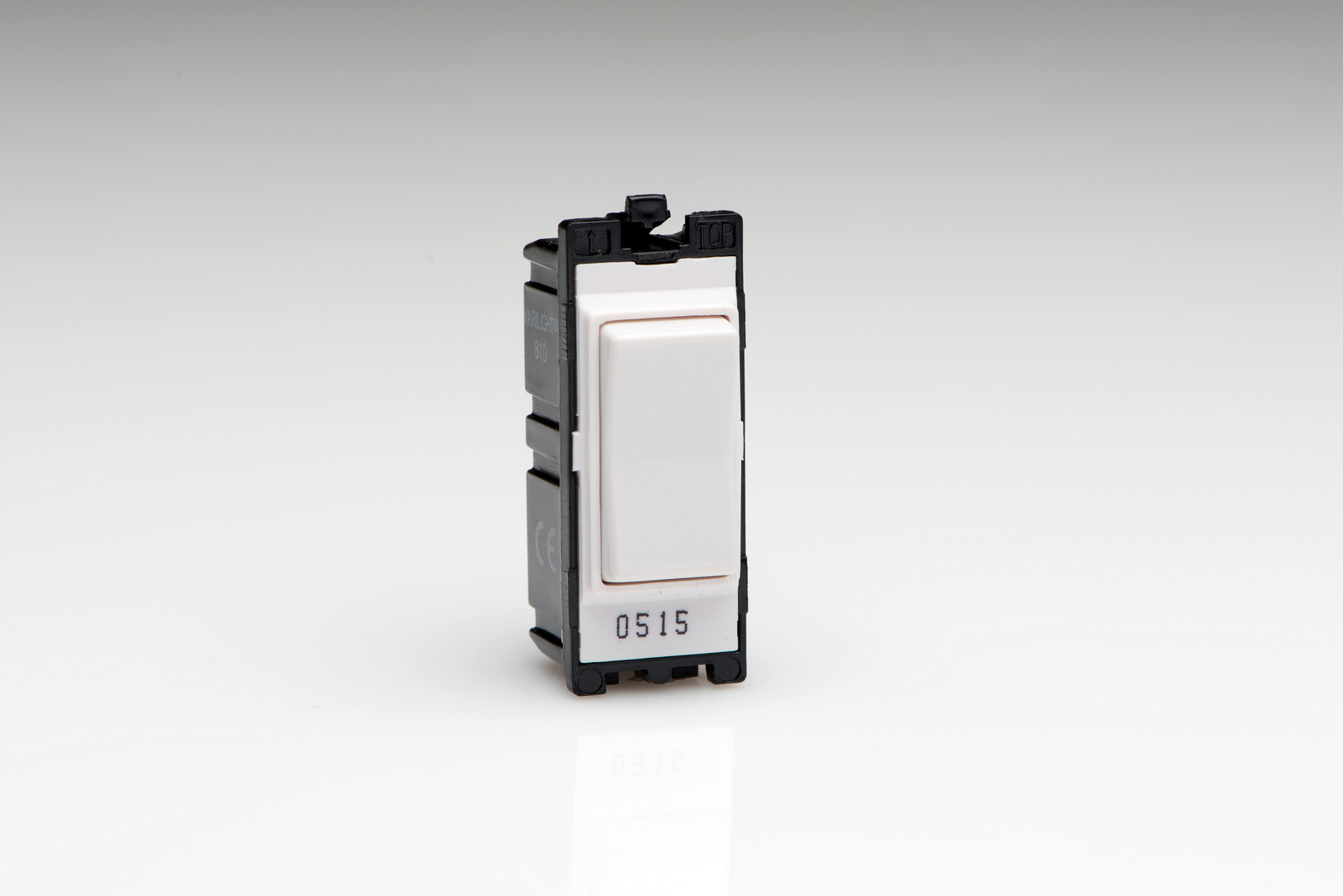

Product Description: 10A 2-Way & Off Retractive Switch
Range: PowerGrid Module
Product Category: Retractive Switch
Insert/Knob Colour: White Rocker
Product Weight: 20g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 21st April 2019 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
