Product Description: 1-Gang 20A Double Pole Rocker Switch

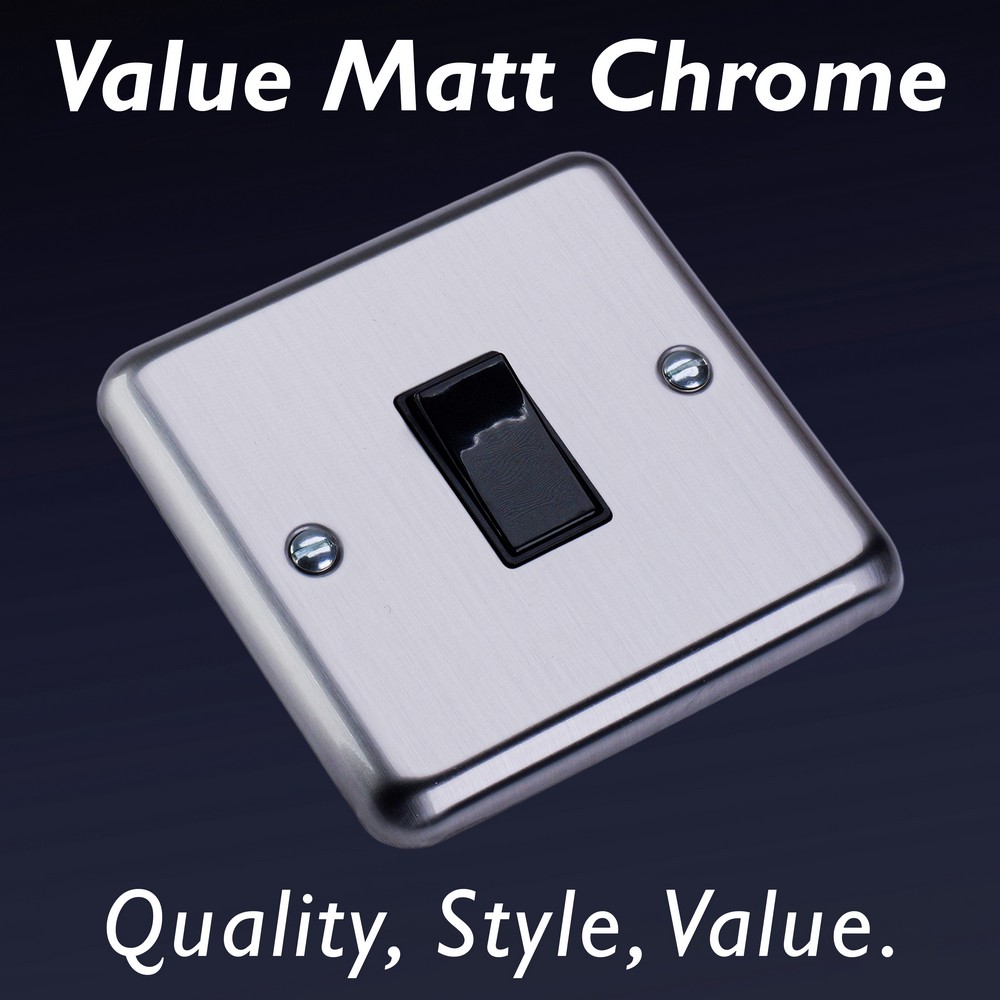

Finish: Matt Chrome
Product Category: 20A Rocker Switch
Insert/Knob Colour: Black Rocker
Faceplate Depth: 7mm
Product Weight: 140g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.3mm
Recommended Back Box Depth: 16mm
Operating Voltage: 220/250V AC
Maximum Load Rating: 20A
Maximum Current Rating: 20A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85369001
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 15th August 2020 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
