Data Sheet

Product Code: XS6NB

Product Description: 13A Switched Fused Spur with Neon

Range: Value

Finish: Matt Chrome

Product Category: Fused Spur Connection Units

Insert/Knob Colour: Black Insert

Barcode: 5021575830538

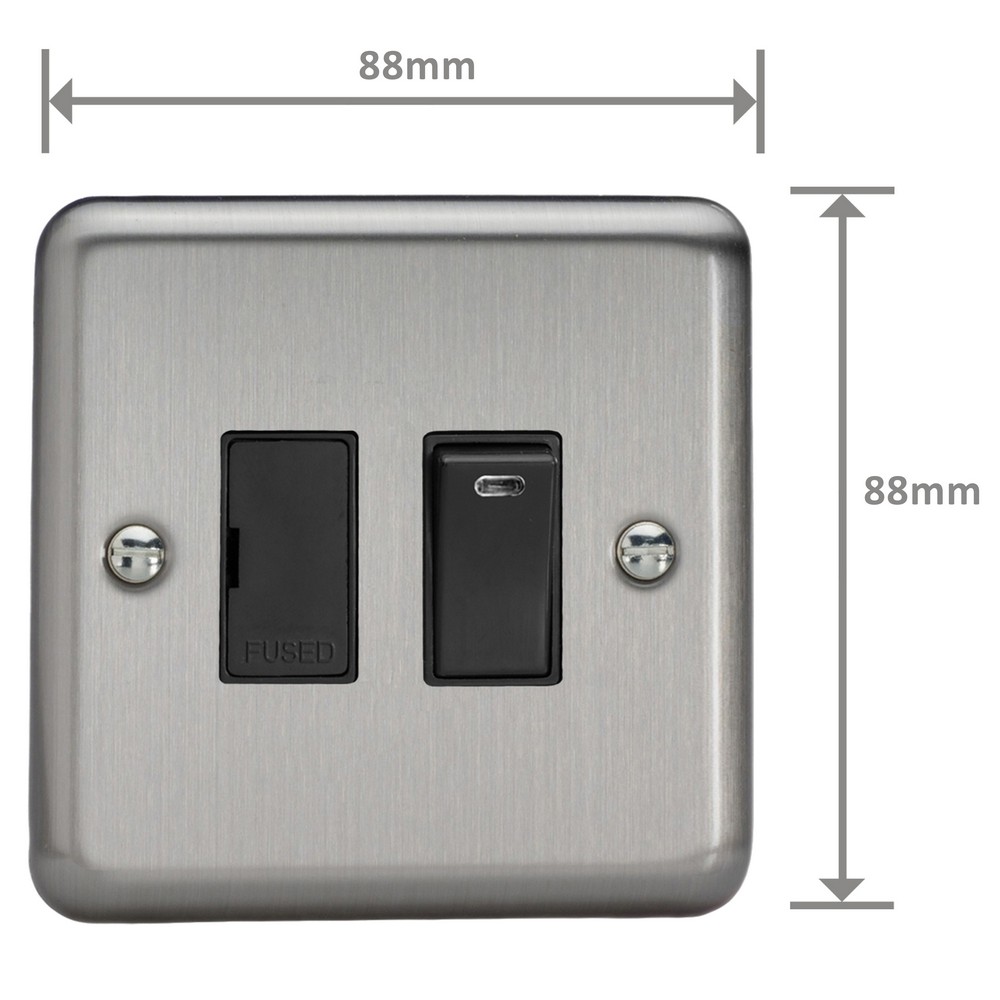

Dimensions: 88x88x30mm

Faceplate Depth: 7mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.3mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching

  Neon indicator light

  Holds standard 25.4x6.4mm fuse

  Replaceable 13A fuse included

  Curved edge faceplate

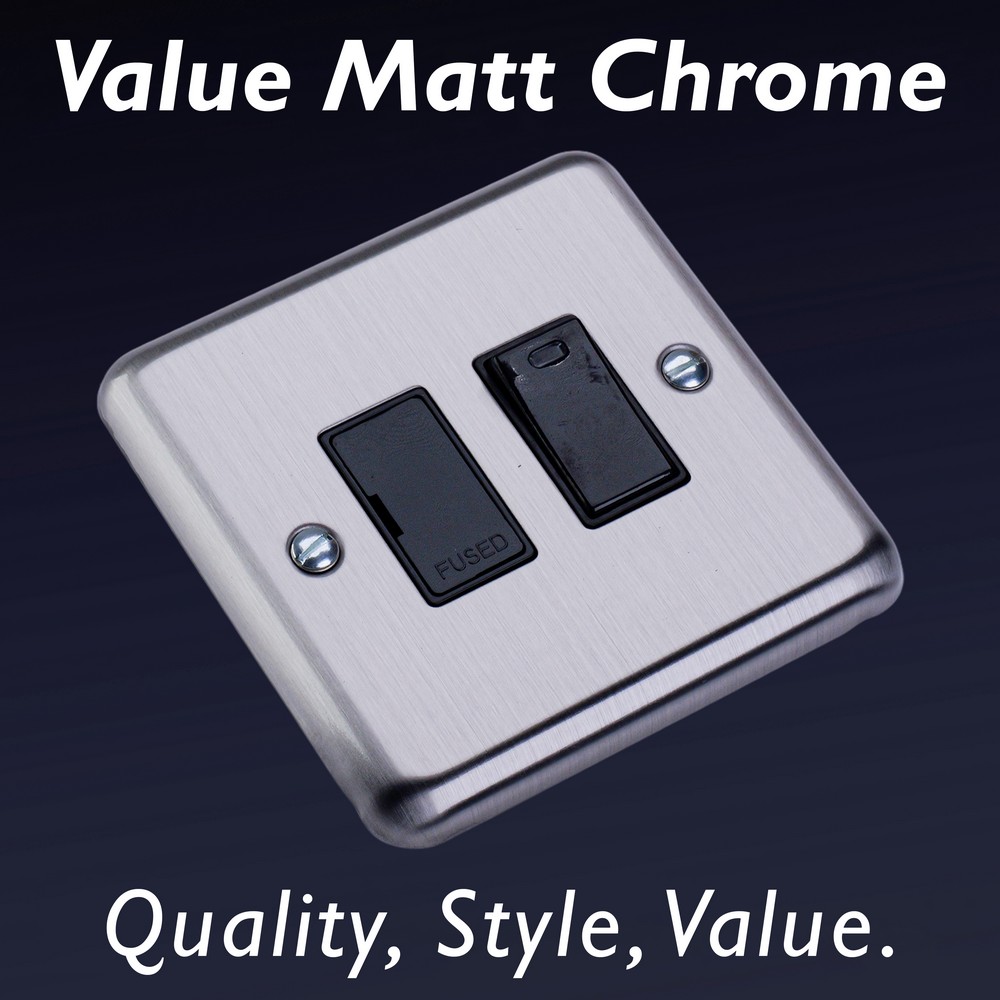

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
