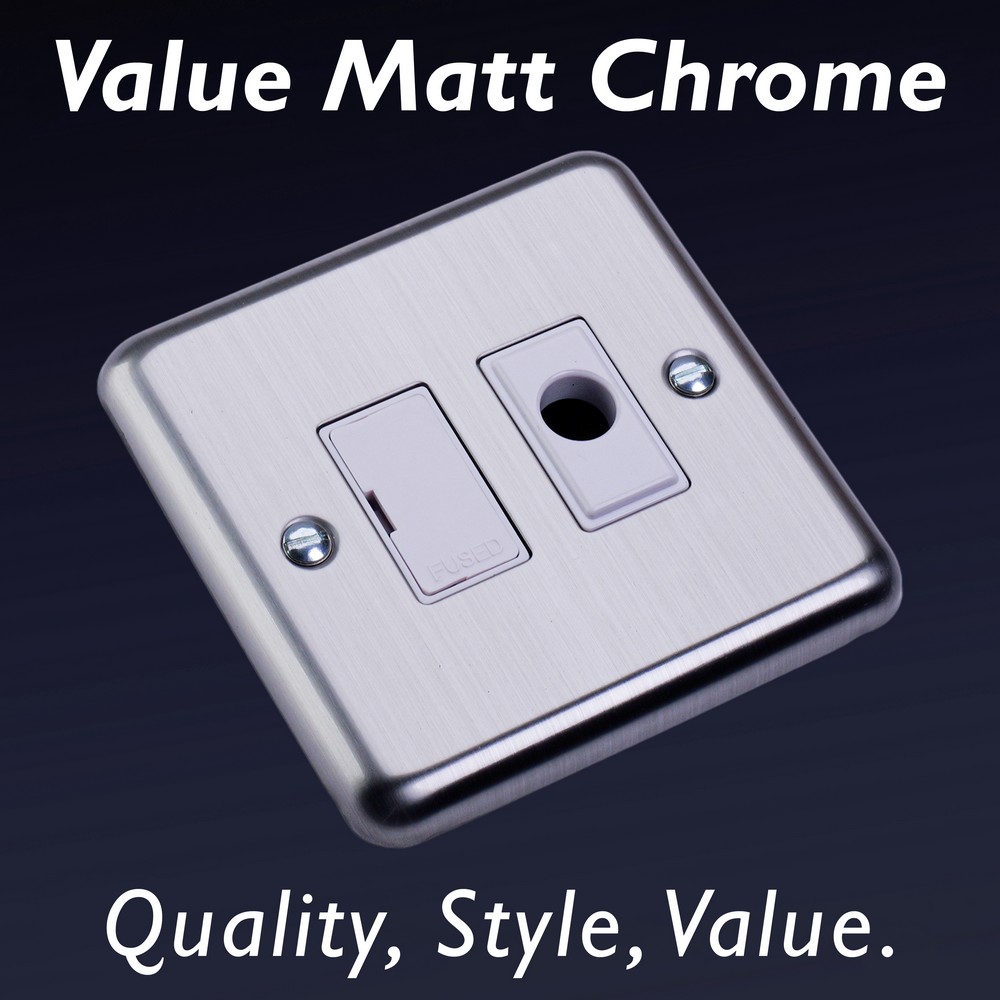

Product Description: 13A Unswitched Fused Spur + Flex Outlet
Finish: Matt Chrome
Product Category: Fused Spur
Insert/Knob Colour: White Inserts
Faceplate Depth: 7mm
Net Weight: 166g
Gross Weight: 168g

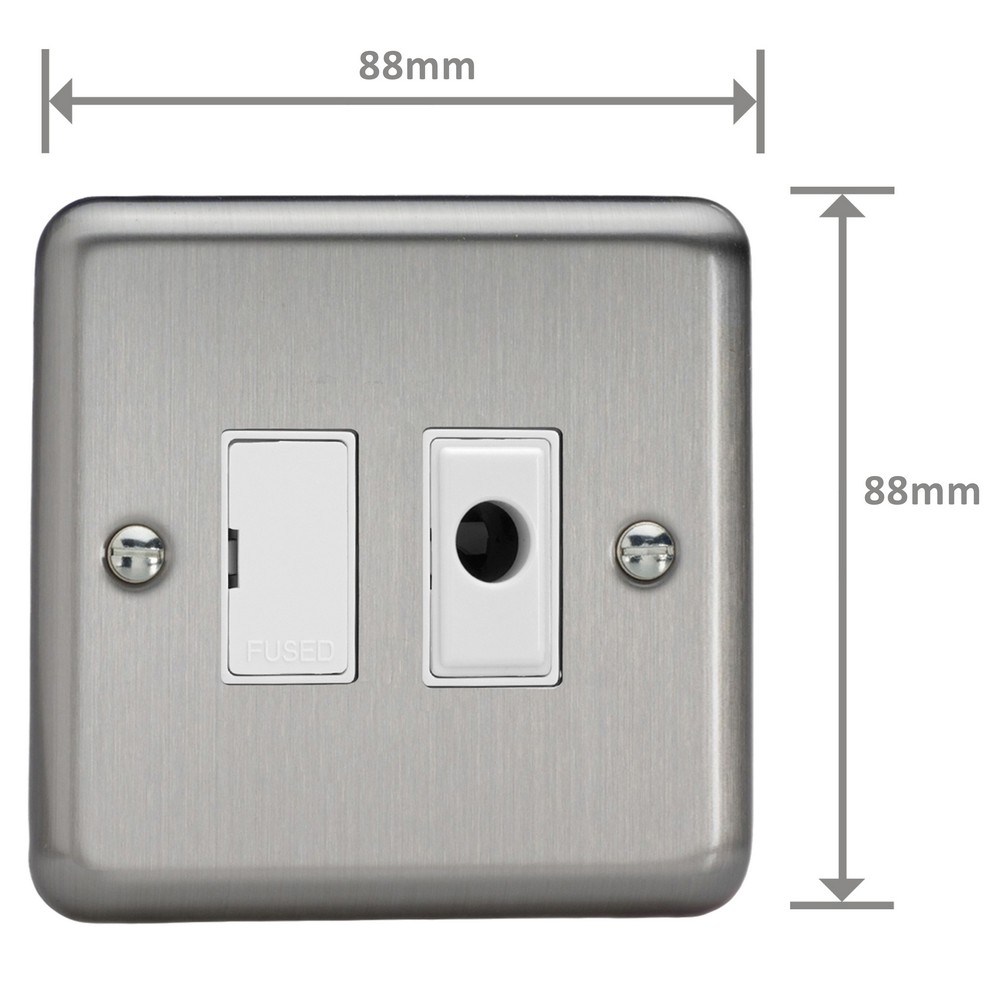

Fixing Centres: 60.3mm
Depth from Mounting Face: 24.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 8536500700
Date of Issue: 20th June 2021 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
