Data Sheet
Product Code: XS9D
Product Description: 4-Gang 10A 1- or 2-Way Rocker Switch (Twin Plate)
Range: Classic
Finish: Matt Chrome
Product Category: Rocker Switches
Insert/Knob Colour: Steel Rockers
Barcode: 5021575831313

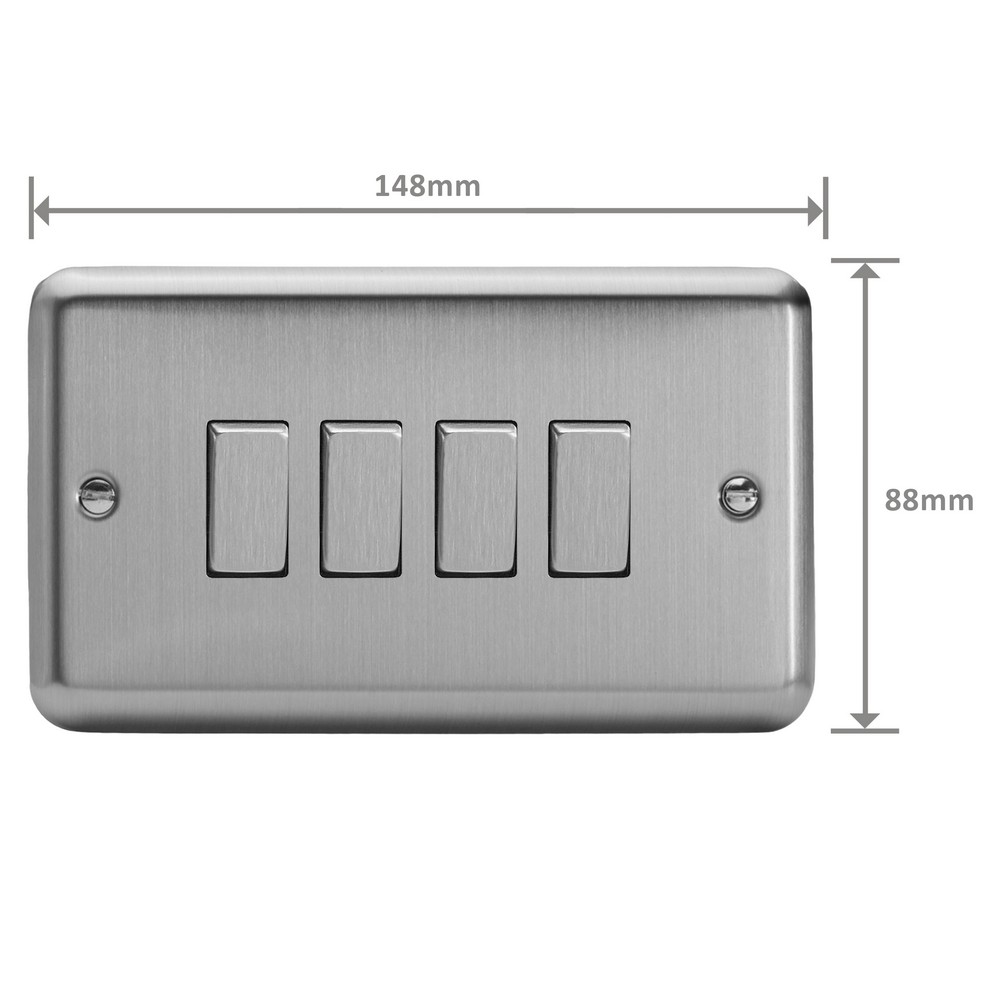

Dimensions: 88x148x25mm
Faceplate Depth: 7mm
Net Weight: 259g
Gross Weight: 262g
Fixing Centres: 120.6mm
Depth from Mounting Face: 11.5mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Curved edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
